Plane on a curve surface

  • September 26, 2014
  • 6 replies
  • 3870 views

helo

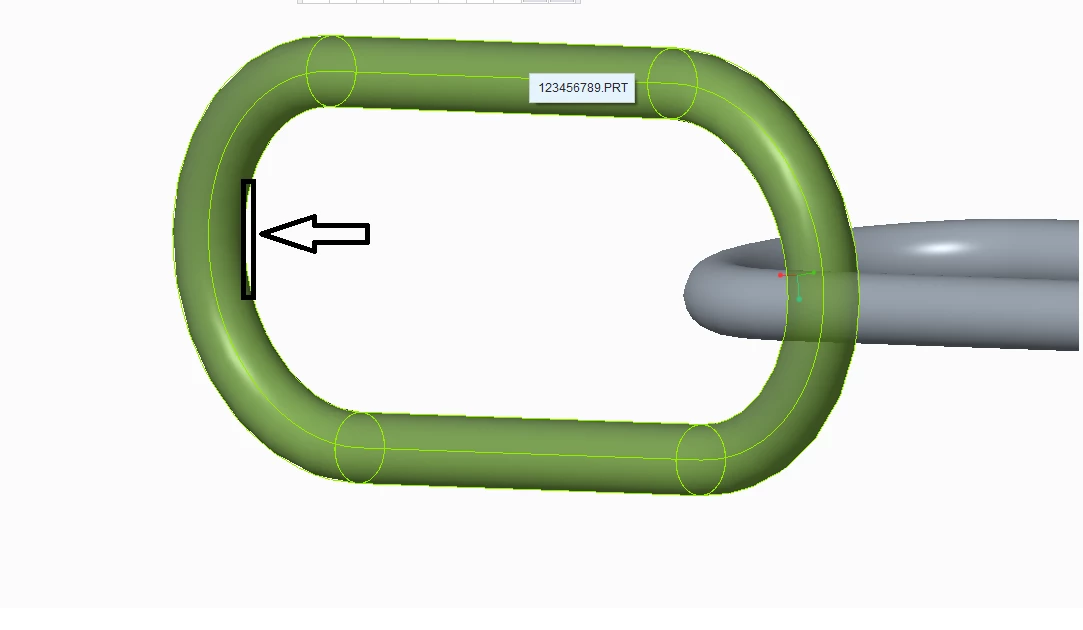

i want to make a plan tangent to item at atached file

how i do this?

tank you

Best answer by TomD.inPDX

And as with all things Creo, another method is to have a divided arc on the sweep sketch. Run the sweep on the outside of the sweep profile. In this case, the plane is at the vertex of the sketch arc.


6 replies

Constantin15-Moonstone
15-Moonstone
September 26, 2014

This should be possible with a parallel plane (to one of the base datums) which has tangent as the second condition.

jzhang-31-Visitor
1-Visitor
September 26, 2014


it is made: 2 points from both end, real value > axis >plane

TomD.inPDX17-Peridot
17-Peridot
September 26, 2014

That's more fun, Jack I wasn't thinking dynamic...

    TomD.inPDX17-Peridot
    17-Peridot
    September 26, 2014

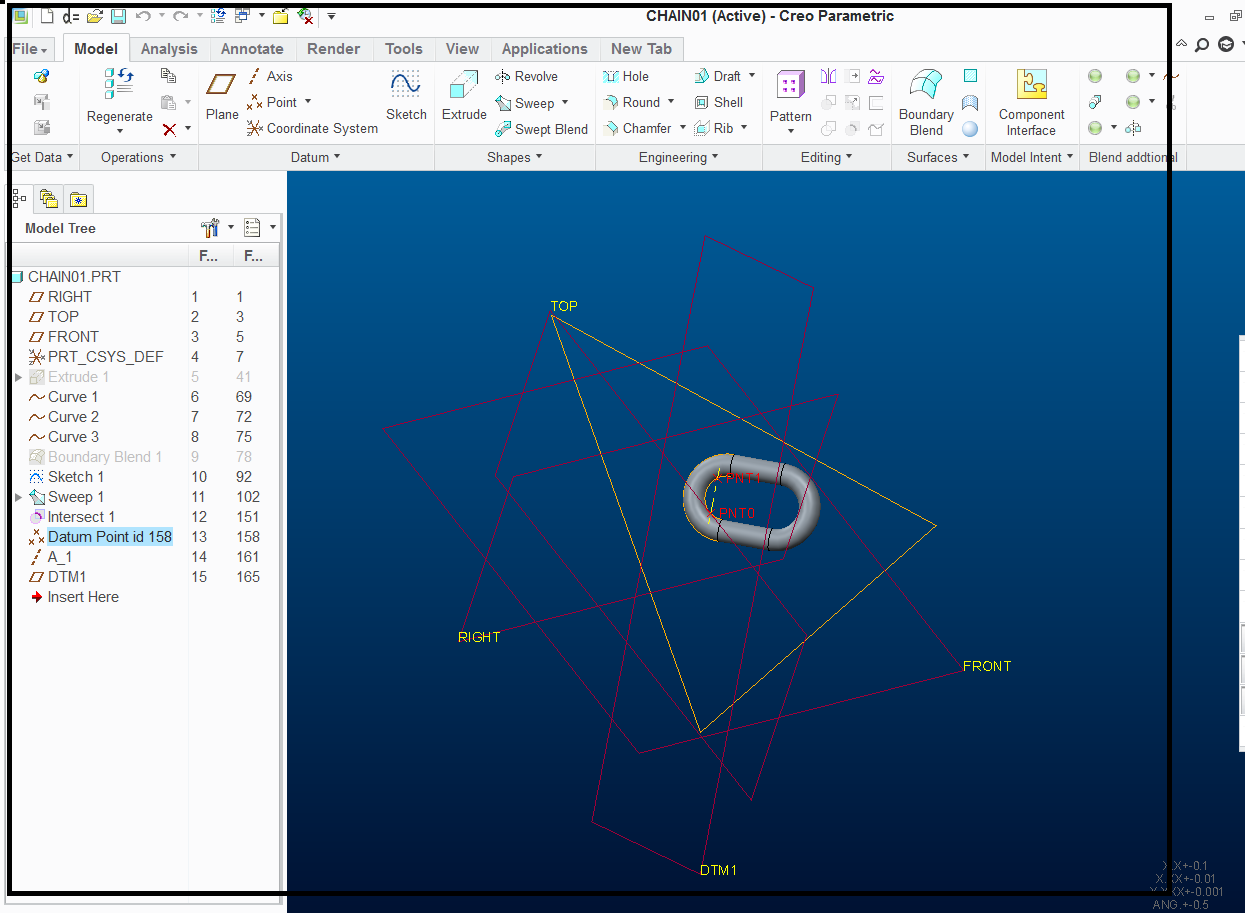

    You will need to make some additional geometry to create that plane.

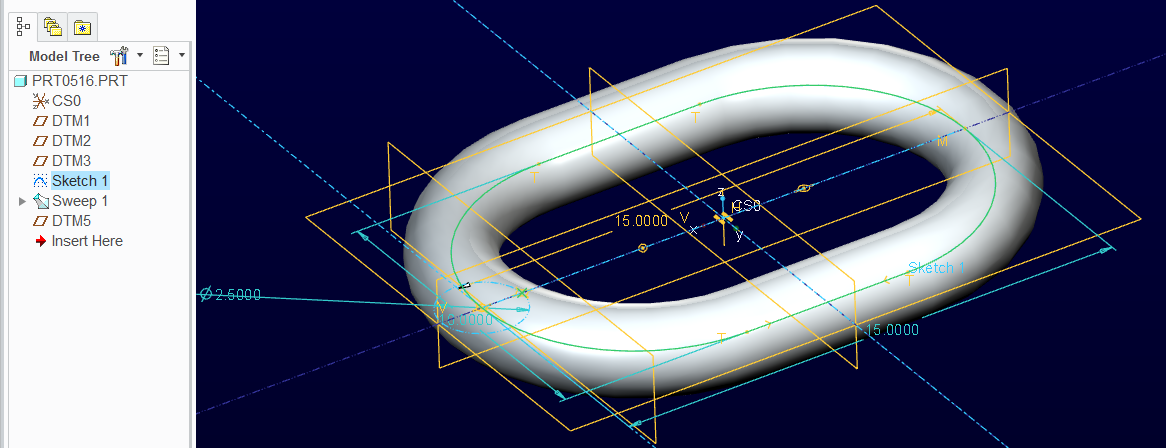

    This example shows a geometry point offset from the sweep profile. You can use relations to manage the dimensions between the sweep profile sketch and the feature section.


    TomD.inPDX17-PeridotAnswer
    17-Peridot
    September 26, 2014

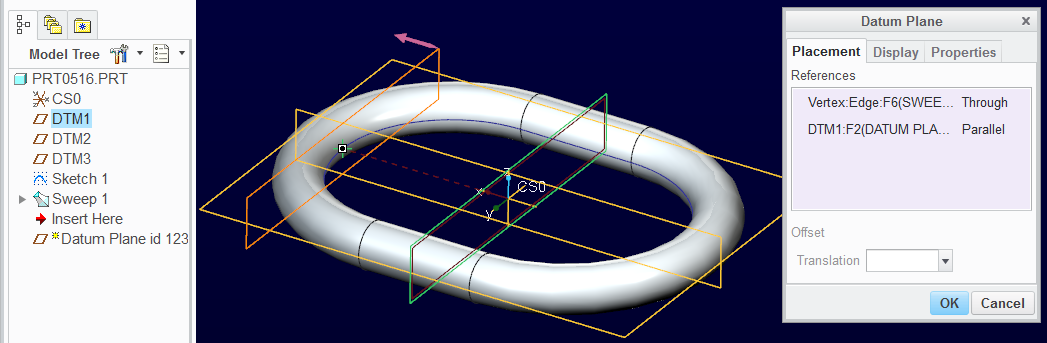

    And as with all things Creo, another method is to have a divided arc on the sweep sketch. Run the sweep on the outside of the sweep profile. In this case, the plane is at the vertex of the sketch arc.
