Pro/E Modeling challenge

  • May 7, 2013
  • 7 replies
  • 1964 views
I was presented with a "canted" oval coil. I threw in a few equations and
kinda of got it to look like the straight oval coil also included in the
model.


The problemo is that Pro/e says the curve is not valid for a sweep. I want
to sweep the thickness of the wire that makes up the coil.

Any ideas? Should I save as IGES and re-import? Do it on Solidworks and
then re-import?

Thanks for the help, have fun with the coil.

regards,

Alfonso

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

7 replies

G
GaryMiglionico1-Visitor
1-Visitor
May 7, 2013

I think this is an easier way to get what you want. If you look at the attached file check the section on surface id 126.


this spring path is round but its the same principal.



Gary

A
amedina1-VisitorAuthor
1-Visitor
May 7, 2013
Well that was not much of a challenge then. Challenge would be to add some
pitch variations on the coil... I guess. Then in like 5 minutes someone
tells me about this cool new thing that they have used for 15 years to get
that done. Alright, I get it, I get it.

Thanks guys!


On Mon, May 6, 2013 at 6:07 PM, Michael Slattery <
-> wrote:

> Hello Alfonso,****
>
> Copy the curve and use approximate, See
> attached.****
>
> ****
>
> ** **
>
> ** **
>
> ** **
>
> *Regards Michael*****
>
> ** **
>
> *From:* Aome Dina [
> kinda of got it to look like the straight oval coil also included in the
> model. ****
>
> ** **
>
> ** **
>
> The problemo is that Pro/e says the curve is not valid for a sweep. I want
> to sweep the thickness of the wire that makes up the coil.****
>
> ** **
>
> Any ideas? Should I save as IGES and re-import? Do it on Solidworks and
> then re-import?****
>
> ** **
>
> Thanks for the help, have fun with the coil.****
>
> ** **
>
> regards,****
>
> ** **
>
> Alfonso****
>
> ** **
D
DamianCastillo1-Visitor
1-Visitor
May 8, 2013

OK,



You are freaking me out right now. I downloaded your part and opened it. It opened Wildfire 4.0 M220 and I can see it just fine. There is only one little problem.



I don't have Wildfire installed on my system. I run Creo 2.0 and there is no other version of Creo or Pro/ENGINEER installed anywhere.



How did this part launch Wildfire 4 M220 on my computer when I don't have the install for this version anywhere to be found?

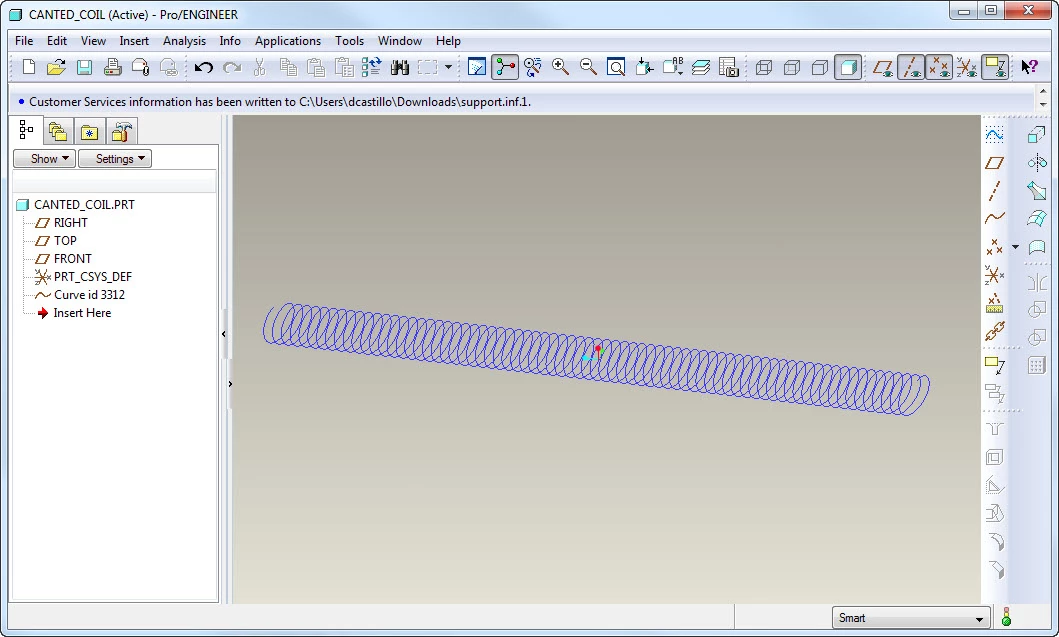

Totally confused. I attached a screen shot to prove it. I don't have Wildfire installed anywhere.
