Problem with geometric pattern failing

  • July 14, 2018
  • 4 replies
  • 3394 views

Hello everyone, it's the first tutorial with Creo Parametric 5, for the exact I'm following this :

https://www.youtube.com/watch?v=8MrhiuYEoIQ



I can successfully do only the first pattert  with reference to the axis and using the original non-mirrored rib  feature

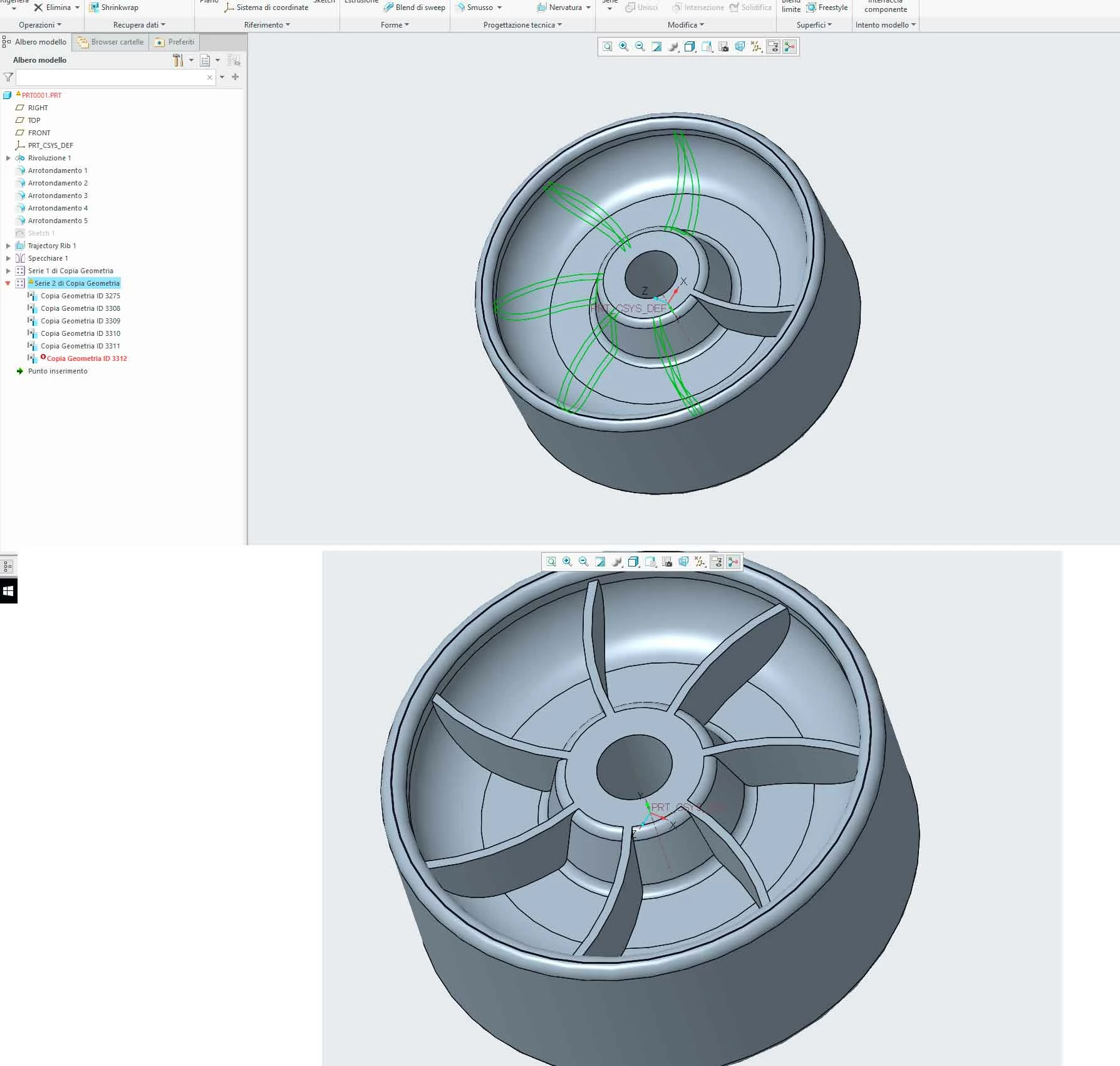

I always failed the pattern  of mirrored speck, and n the wireframe preview that shows me when I failed,  the last element of the pattern  mysteriously it is not displayed (  it should be 7 and not 6. in pattern setting  I put elements 7 and angle 360/7)
Thanks so much







Best answer by Mahesh_Sharma

It is due to accuracy, changed the relative accuracy to 0.0001 and got correct results. (File > Prepare > Model Properties > Change Accuracy)

4 replies

1-Visitor
July 14, 2018

I am attaching the ptc file with the failed pattern

thank you

24-Ruby III
July 16, 2018

Note: Part is created in Creo Parametric 5.0.1.0

Mahesh_Sharma
22-Sapphire I
July 16, 2018

It is due to accuracy, changed the relative accuracy to 0.0001 and got correct results. (File > Prepare > Model Properties > Change Accuracy)

1-Visitor
July 17, 2018

exactly, the problem was just that. Thank you so much for your time
