Problem with Tool Design Option

  • October 28, 2012
  • 2 replies
  • 2749 views

Hi,

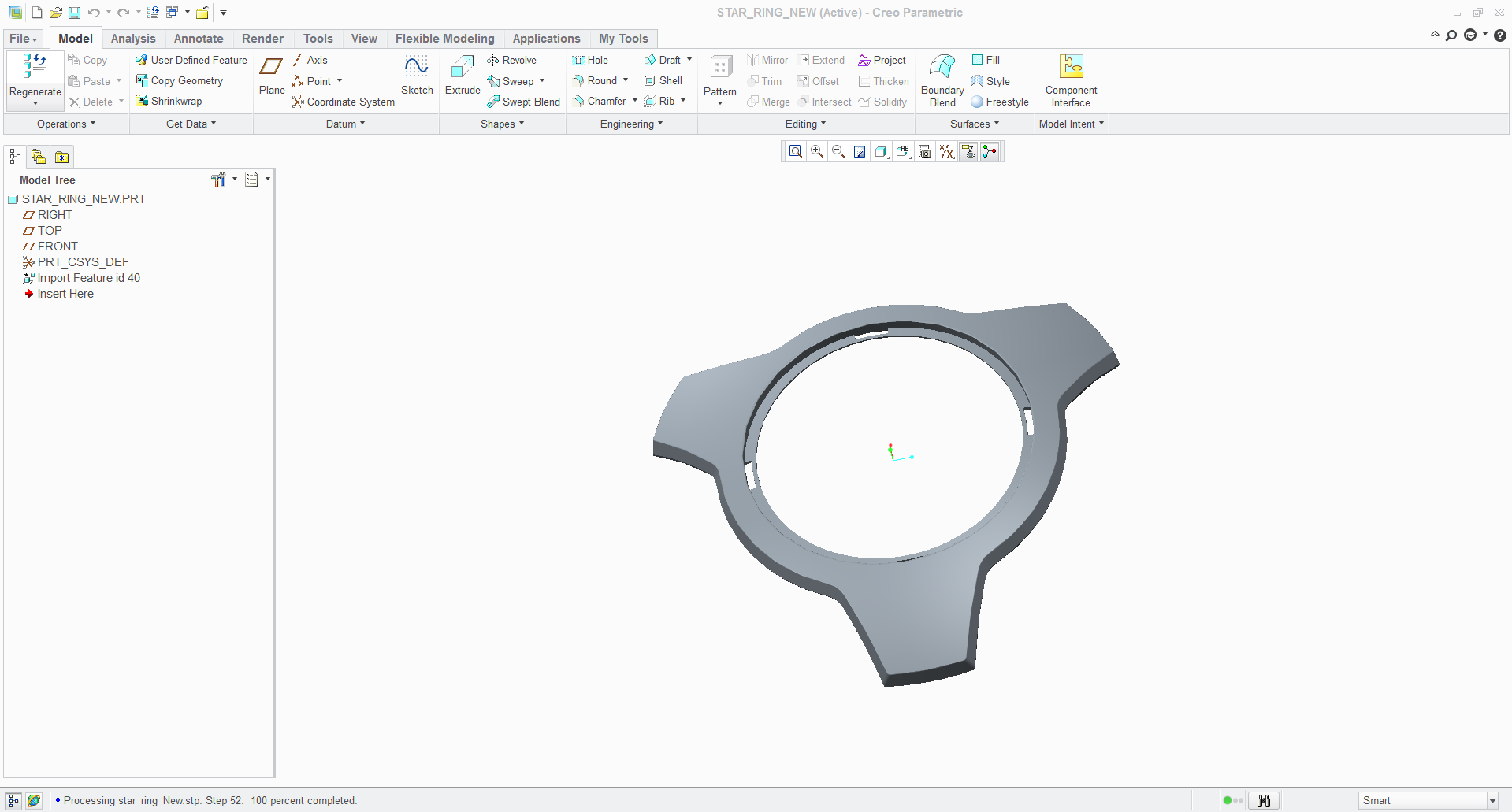

Is it possible to generate Core & Cavity(Volume Split) for this component in Creo Parametric using Tool Design Option?

I've tried me level best, but was not able to creat the parting surface for this component.

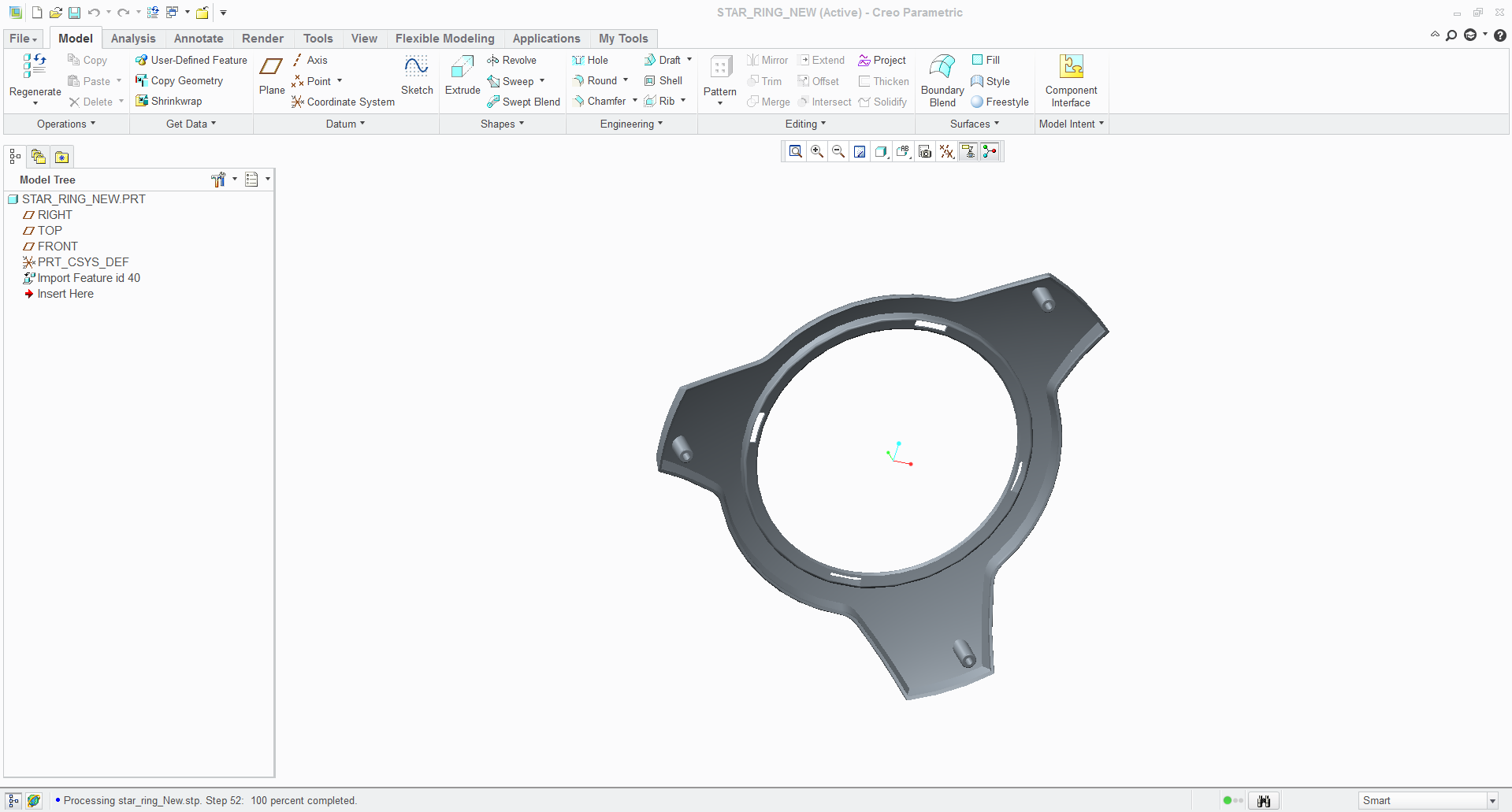

Please Help...11.PNG



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by James62

Ok here you go.

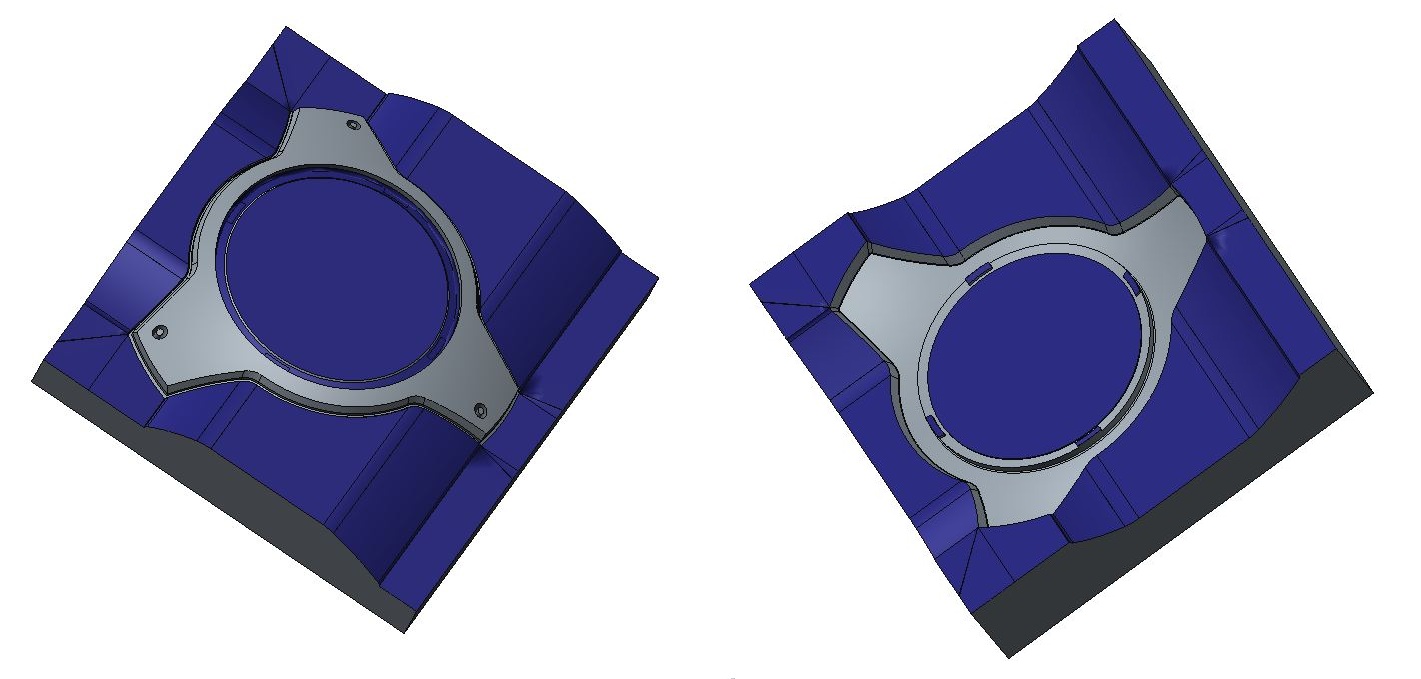

core and cavity.JPG

It looks kinda messy in 4 of the corners but not too bad for starters.

Click on the image to make it larger.

2 replies

J
James621-Visitor
1-Visitor
October 29, 2012

hi Shashank,

I'm evaluating Creo TDO on Creo Parametric 2.0 this month. I've failed to make automatic parting surfaces for this and several other parts today.

I'll try to play with this one again later. Didn't have a chance to spend enough time on it yet.

J
James621-VisitorAnswer
1-Visitor
October 29, 2012

Ok here you go.

core and cavity.JPG

It looks kinda messy in 4 of the corners but not too bad for starters.

Click on the image to make it larger.

S
ssharma-21-VisitorAuthor
1-Visitor
October 30, 2012

Hi Jakub,

Awsome job..

i'll be very thankful if you could please upload the core cavity assembly as well...

Thanks

Shashank

J
James621-Visitor
1-Visitor
October 30, 2012

hi,

It's not gonna upload. Guess it's too big.

Check your pm.

~Jakub
