profile cut angle in BOM

Forum|Forum|6 years ago
July 29, 2019
2 replies
2550 views

Hi,

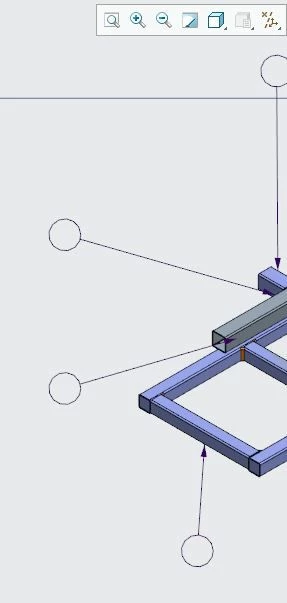

I've created a framework consisting of some steel-tubes that are cut in an angle on one or both sides

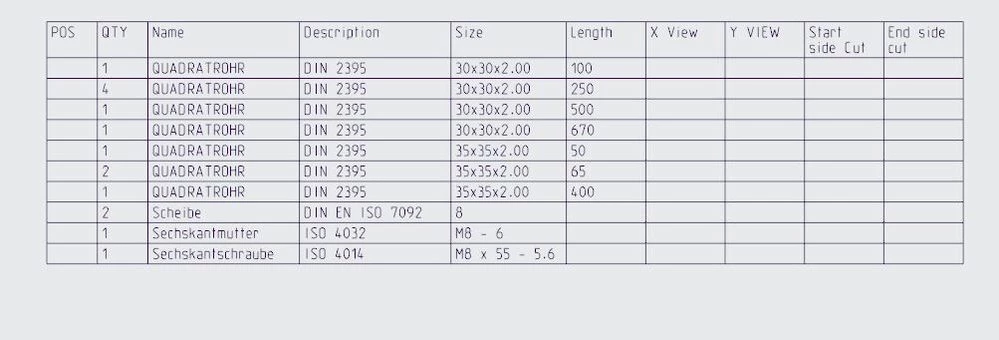

Now I want to create a list (BOM) of all the Tubes that have to be cut. I created a BOM and got the length of the profiles by using the parameter "asm.mbr.length". Also I got the cross-section by using "asm.mbr.BUW_SIZE".

Is it also possible to get the cut-angle of the profiles ? I didn't find any parameter for it.

Thanks,

Maik

2D Drawing

M

MartinHanak

24-Ruby III

Hi,

maybe some person from B&W Software company can answer you question.

Intended for @tschneyer

SamuelBrantner

16-Pearl

Hi @MaikTheBike ,

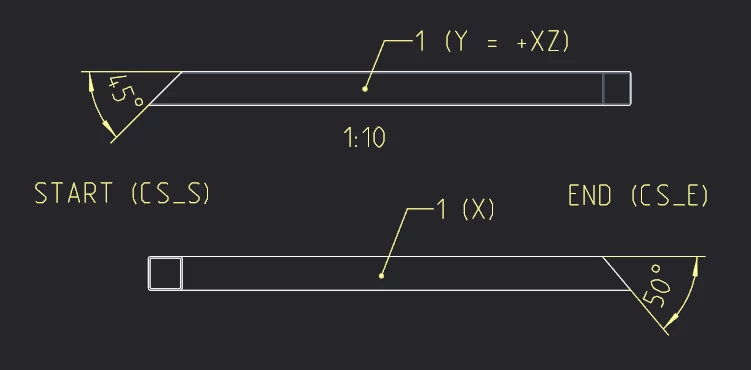

I just wrote a blogpost about this here: https://www.buw-soft.de/en/2019/08/08/cut-angle-information-in-bom-parameters/

You can download the attachment and follow the instructions in the readme.

Can you also please tag the topic as AFX for better visibility?

Greetings Sam

1_cut_angles_in_bom.zip

M

MaikTheBike

Author

15-Moonstone

Thanks a lot.

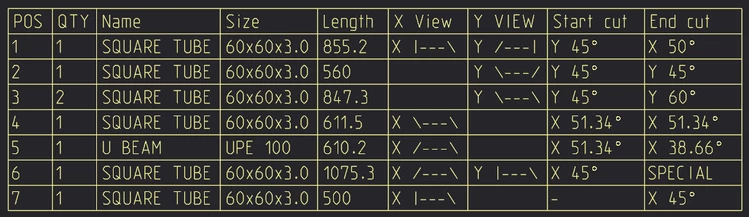

I've downloaded the table-files and it works very well. The cut angles are displayed correctly.

Only one thing doesn't seem to work: The first column of the table(asm.mbr.EXF_ITEM_NUMBER) is empty. What do I have to do to get this parameter into the part ?
