Radii Not Displayed in Drawing

  • April 14, 2014
  • 1 reply
  • 1330 views

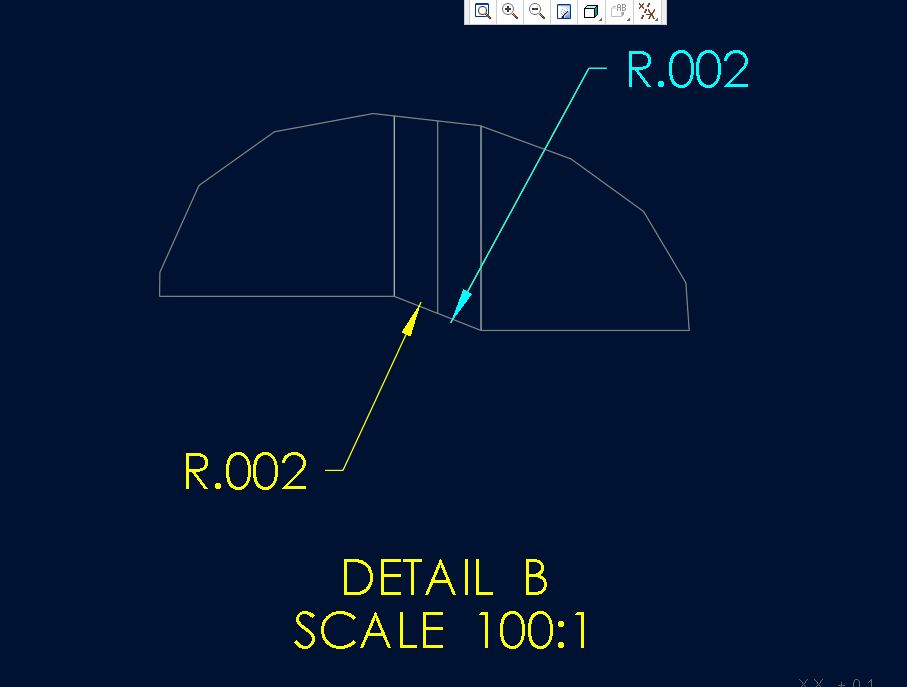

Can someone tell me if this is normal or if I have something wrong here. I realize they are very small, but my radii are showing up as straight lines in my drawing. Shouldn't they show up as blended radii like on my model?




Thanks,



Matt


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Dale_Rosema

I probably had to do with accuracy settings. If you do a regen do they then show up?

Thanks, Dale

1 reply

Dale_Rosema
Dale_Rosema23-Emerald IIIAnswer
23-Emerald III
April 14, 2014

I probably had to do with accuracy settings. If you do a regen do they then show up?

Thanks, Dale

M
msteis1-VisitorAuthor
1-Visitor
April 15, 2014

Thanks Dale... Changing the accuracy worked. That's good to know as I never mess with accuracy unless features fail. I didn't think it had anything to do with displaying a drawing.

Matt

Dale_Rosema
Dale_Rosema23-Emerald III
23-Emerald III
April 15, 2014

Glad it help. Just don't got overboard with accuracy because it will cause performance issues if you get to much. You have to find a happy medium.

Thanks, Dale
