ref pattern fail - creo2 m110

  • May 22, 2014
  • 1 reply
  • 1280 views

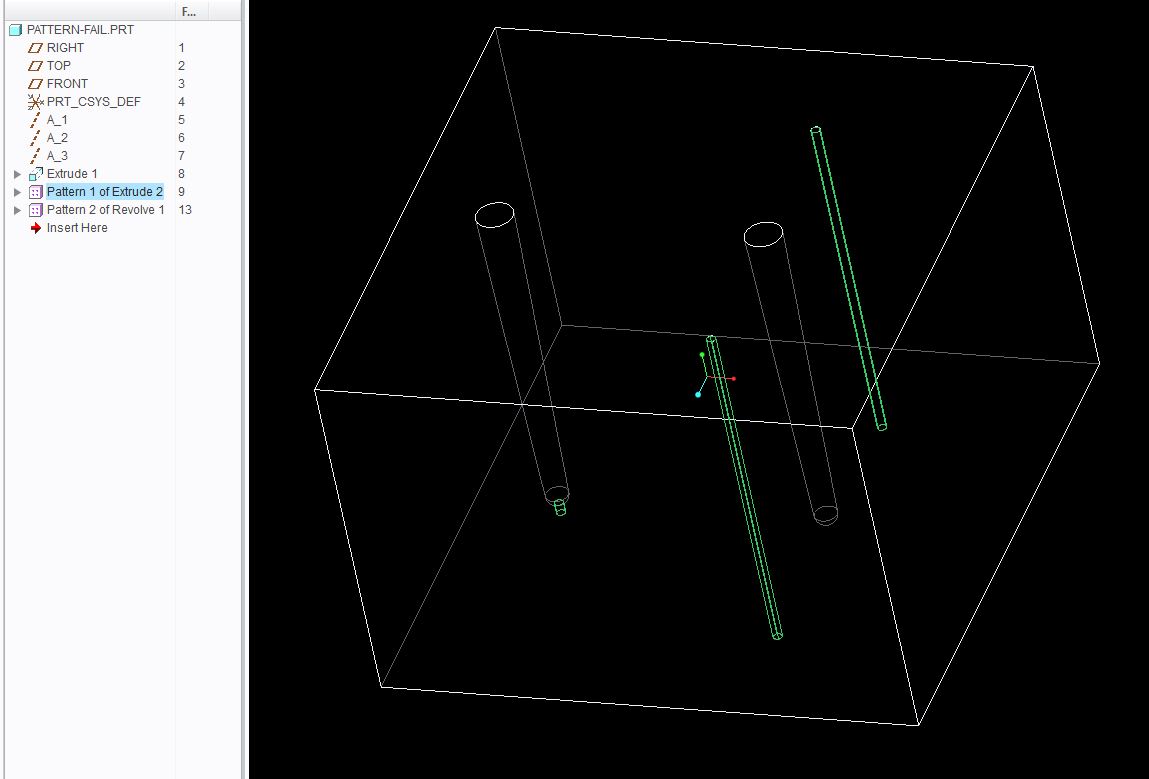

The second pattern is a reference of the first.



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
May 22, 2014

You are using a reference that is not able to pattern in the direction you selected.

I added a plane specific for the sketch (internal) and I added a sketch centerline for rotation. This corrected the reference pattern.

Creo 2.0 attached (M040)

I
Inoram14-AlexandriteAuthor
14-Alexandrite
May 22, 2014

I would still think the the reference should work, especially since I can successfully pattern with the same steps as the first pattern. In theory the reference being those same steps.

T
TomD.inPDX17-Peridot
17-Peridot
May 22, 2014

Reference patterns are very particular. Half the time they fail and I just re-use the previous transformation instead. In your case, there was something it couldn't re-reference to the sideways location.

If you want a more clear explanation, feel free to involve customer support.

Actually, the entire pattern generation technique tends to be somewhat esoteric from a layman's perspective. I still deal with some serious bugs in the M040 release that are much more problematic.
