Relation between Height in MM and Height in number of character

  • September 25, 2015
  • 2 replies
  • 11187 views

Hi,

I do have table into creo drawing file. Table is having property of height and width. I would like to understand relation between Height in MM and Height in number of character.

Any clarification can be provided.

Thanks & Regards

Ketan


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by kdirth

Close.

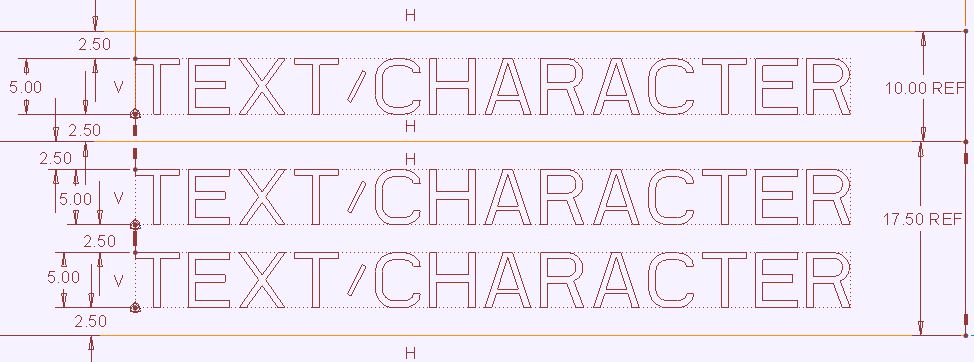

1 character height = 10 mm (5 mm character height + 2.5 mm top margin + 2.5 mm bottom margin)

1 character = 5mm, margins and spacings = 1/2 character

2 character height = 17.5 mm (2 x 5 mm character height + 2.5 mm top margin + 2.5 mm bottom margin + 2.5 mm spacing)


Just remember character height for the table does not change if the drawing options are changed and the drawing units measurement will always be measure by the units in the drawing options.

Hopefully this has not confused you, but I think you are getting the idea.

2 replies

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
September 25, 2015

The relationship between characters and actual height is based on the default text height (for the drawing or format) at the time of table creation.  See this reply from several years ago for a complete explanation. Scaling a created table

K
Ketan_Lalcheta1-VisitorAuthor
1-Visitor
September 28, 2015

Hello Tom,

Thank you for this link. This would help me to find out row height based on number of characters in a filled table.

I would like to know relation between Row Height and Row height in number of characters. Table is not filled and would not get details of number of characters. Hope I have not misunderstand your point. If I misunderstood, Please elaborate more on your calculation.

Regards

Ketan


kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
September 28, 2015

The row height is based on the height of the default character height.  My default character height is 4 mm.  The row height is 8 mm to allow 2 mm of margin.  A row height of 2 characters is 14 mm - 8 mm character height, 2 mm margin top and bottom and 2 mm between rows.

There is always more to learn.
K
Ketan_Lalcheta1-VisitorAuthor
1-Visitor
September 29, 2015

I am not sure whether I am confused or not. But, I would like to extend my query as below:

Please find attached file for reference. If I know value 3, How can I say that other value is 0.2?

Regards

Ketan

M
MartinHanak24-Ruby III
24-Ruby III
September 29, 2015

Ketan,

Creo offers two option for height setting. User chooses one of them and sets its value. Creo then automatically calculates the value belonging to the second option. Values are interdependent !

MH
