To whom it may concern,



I need to remove material from a Wrap feature on a cylinder.



I've been trying to get this done, but apparently Creo doesn't recognize further actions for the Wrap feature. Why would I need that feature if i'm not able to extrude or remove material from it?



Please, someone fluent on these PTC enigmas, HELP!

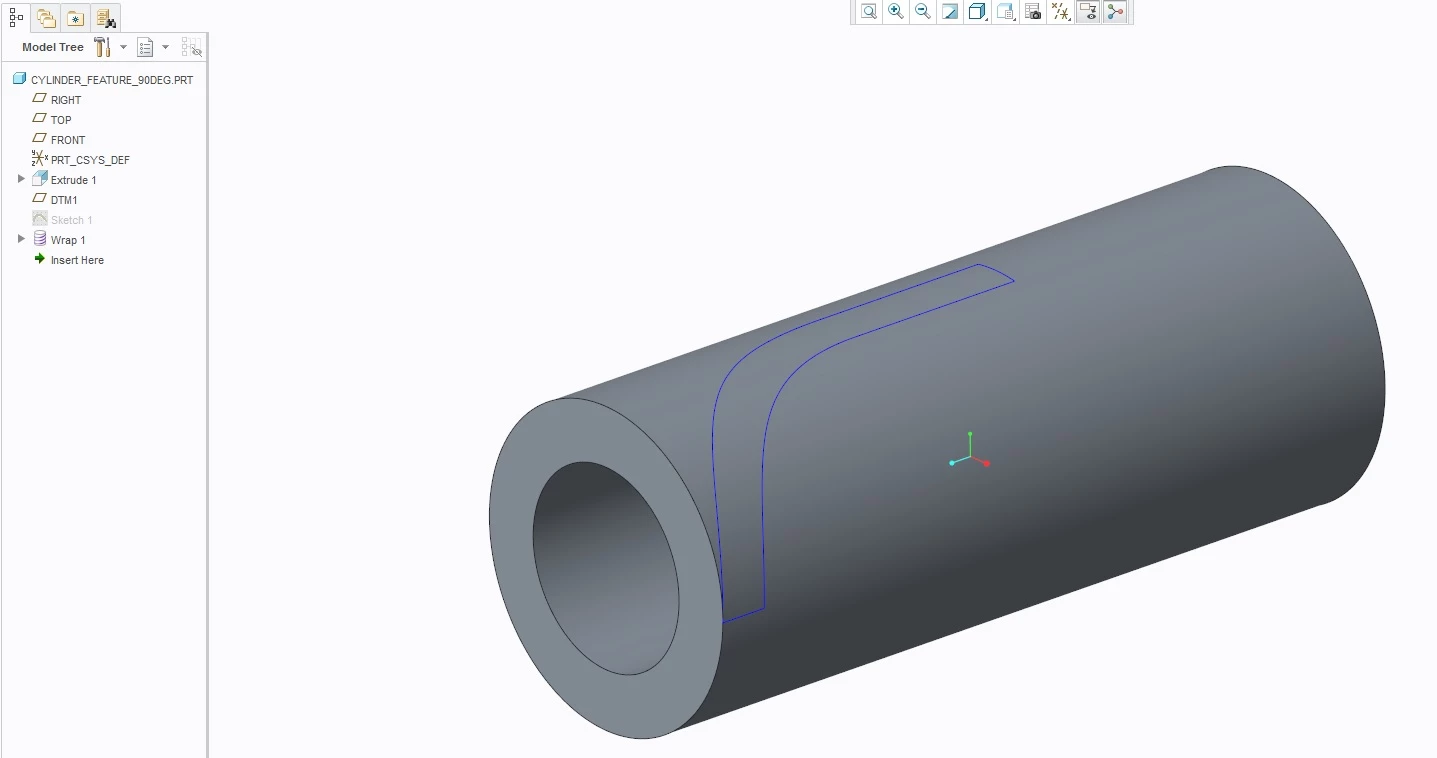

There is a picture attached for more information.



Thanks,



CC


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

D
dschenken1-Visitor
1-Visitor
December 4, 2015

Not sure why the Wrap feature isn't usable - what are you trying to do with it?

In anticipation, it should work as a trajectory for a swept feature.

C
ccruz1-VisitorAuthor
1-Visitor
December 4, 2015

Hello David,

I'm trying to make a slot with that shape.

I'm willing to use any other method in order to get this done, feel free to suggest.

Thank you,

CC

T
TomD.inPDX17-Peridot
17-Peridot
December 4, 2015

There is a lot to be considered in your request.

A lot of sculpting is done with surfaces rather than solids.  Trims, merges, and intersects all work to manage each face of your design.  Once merged into a closed boundary, it can be solidified.  Or maybe a constant thickness offset?

C
ccruz1-VisitorAuthor
1-Visitor
December 4, 2015

Hello Antonius,

I'm trying to make a slot with that shape. There's a pin that must slide normal to the trajectory of the slot.


I have no idea on how to make it. Feel free to suggest any method.


Thank you,


CC

R
rneubauer1-Visitor
1-Visitor
December 4, 2015

Cruz

I actually ran into this problem a little while ago. You have everything correct in your model tree, now you need to add a sweep:

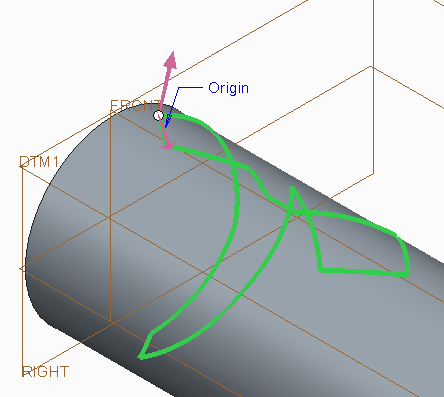

- The trajectory will be your wrapped sketch

- Then create the sweep section by clicking the sketch icon:

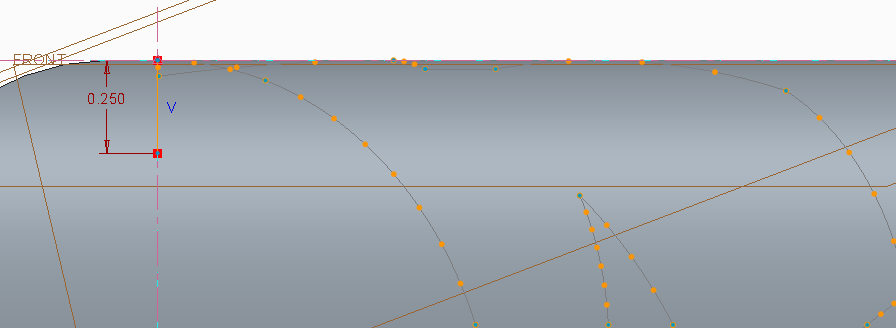

  - Make sure your section is at equivalent or greater than your wall thickness

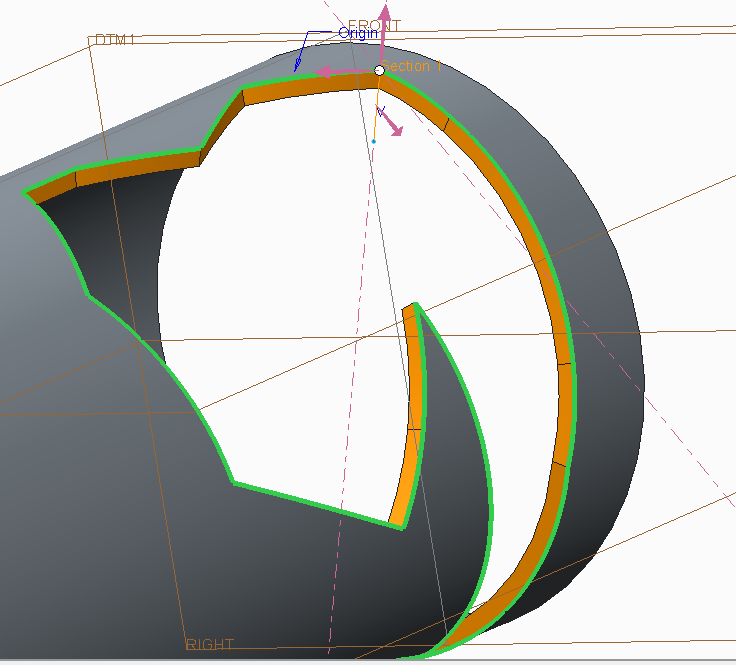

  - Click the green check mark to accept the sketch, click 'remove material', and you should be good to go!

Rob
