Removing hidden welds in drawing sections?

  • September 10, 2014
  • 23 replies
  • 15559 views

(Creo Parametric 2)
I am having trouble with hiding/removing a hidden weld in a section in drawing view.

With a normal projected view, I would simply select "Yes" for "Hidden line removal for quilts" in the drawing view properties.

However when I have a section view, this option is greyed out, leaving welds which should be hidden visible.



How do I go about hiding these, either as a general setting for the view or as a manual deleting process?



Many thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

23 replies

dschenken1-Visitor
1-Visitor
September 10, 2014

The option has to be chosen when you create the section. I think it cannot be redefined after, but it is easy enough to create a new, coincident section and replace the existing one. Once replaced, delete the original section and then rename the new one to the original name.

    ptc-62953941-VisitorAuthor
    1-Visitor
    September 11, 2014

    Which option is it that has to be chosen when it is created?

    I already tried simply selecting "Yes" for "hidden line removal for quilts", before creating the section, however it reverted to "No" when it greyed out..

    Cheers

    dschenken1-Visitor
    1-Visitor
    September 11, 2014

    When you create the section in the model, there is the option to include quilts.

    This is not the same as creating a section view in the drawing.

    TomD.inPDX17-Peridot
    17-Peridot
    September 10, 2014

    Welcome to the forum, Simon.

    Welds being quilts is problematic no matter how you deal with them.

    I don't use the intelligent layers and I rarely need to show model quilts in any view... except for the weld that may be required in only one view (spot or seem welds).

    However, I do create a layer in the model called HIDE_WELDS to specifically turn these layers of in specific views. By managing layers by view, or drawing, there are fewer issues with model layer states. I suppose you could reverse this and use SHOW_WELDS but that means your model will have to hide them by default. I never liked things popping into drawings that are suppose to be hidden. All too often I check a drawing that has been ECO'd only to find a completely unrelated view change visibility of features.

    flopes-31-Visitor
    1-Visitor
    November 28, 2014

    Hi,

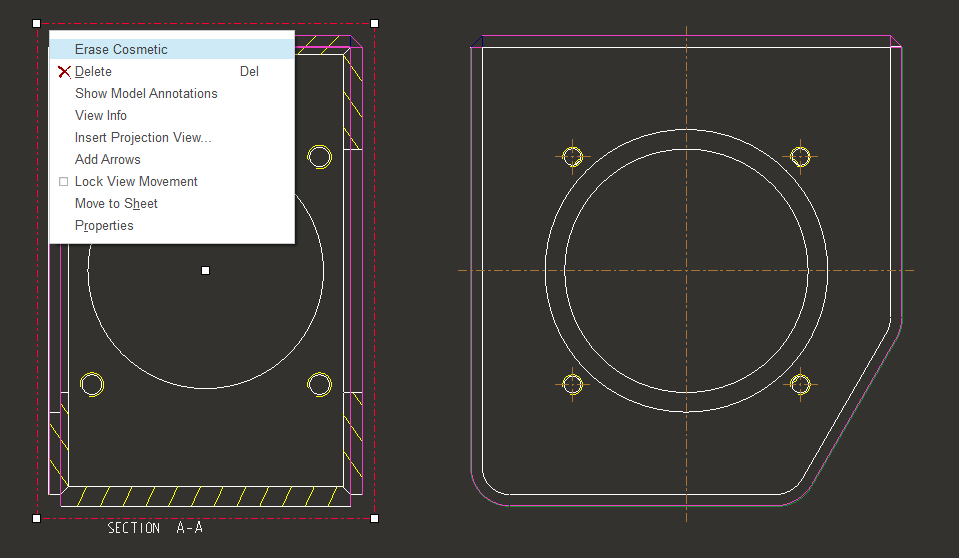

    try right click on the view, and select "erase cosmetic"


      ecosta-21-Visitor
      1-Visitor
      January 6, 2015

      Fernando Lopes,

      Thanks, it's so useful for me. I was searching for this command.

        gfraulini17-Peridot
        17-Peridot
        July 22, 2016

        Hi all,

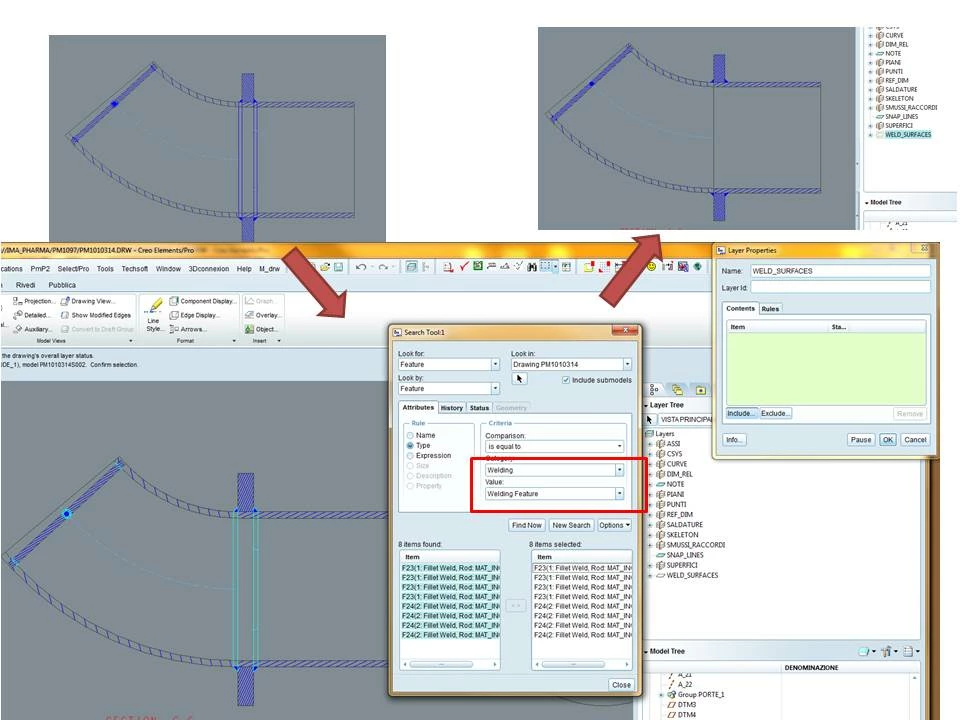

        I use WF 5 and in the case you have a section with weld feature, the only manner to to hide them is to create a layer with the welding feature inside and then hide the layer referred with that particular view.

        Bye

        gfraulini17-Peridot
        17-Peridot
        July 22, 2016

        Sorry, in the photo I've searched for "welding feature". It works but if you hide the feature I can't visualize the welding note.

        You have to search for "Fillet weld".

        Bye
