repeat a sketch in creo 2.0

  • December 8, 2017
  • 3 replies
  • 4901 views

Dear all,

i'm ew in creo, how i can repeat a part of a sketch (i.e. a liear repetition)



thanks

3 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
December 8, 2017

Pattern is how you repeat features.

Not sure exactly what you mean by "part of a sketch".

Maybe a screenshot to help clarify what you are trying to accomplish

S
sportivo_cae1-VisitorAuthor
1-Visitor
December 8, 2017

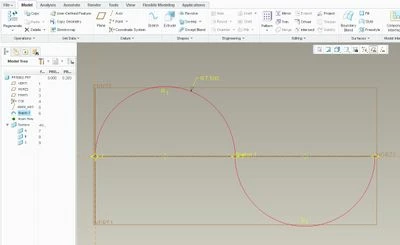

i want create a  sinusoidal profile. for do it, i use two semicircunference. i draw in sketch section the sinusoidal profil. now i want two repeat this sinusoid for create my complete profile.



How i can do it???

@StephenW wrote:

Pattern is how you repeat features.

Not sure exactly what you mean by "part of a sketch".

Maybe a screenshot to help clarify what you are trying to accomplish



S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
December 9, 2017

Create a new part.

create a sketch feature with one complete sinusoid.

finish that sketch feature


Select the sketch feature in the model tree.

select Pattern

change the option to direction

select a datum plane that make the pattern go in the direction you want it to

enter the increment  that works for you sinusoid.

enter the number of repeats.

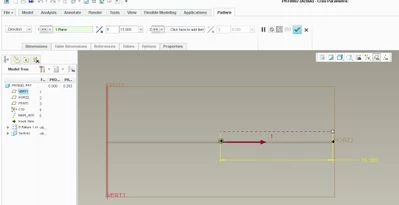

pattern direction.jpg




kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
December 8, 2017

You can use Project while sketching to copy any line or edge onto the new sketch.  Internal sketches from previous features cannot be used as they are hidden.  But, the edges from the feature can be used.


There is always more to learn.
Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
December 8, 2017

You can save 2D sketch as section (*sec) and import whenever required in sketch.

S
sportivo_cae1-VisitorAuthor
1-Visitor
December 8, 2017

Thanks a lot.



but i want create a sinusoidal profile with a succession of two semi-circunference.

I want drowing a sketch with the first sinusoid (costitued by two consecutise semicircunference ) and i want repeat this draw for 230 times.



How can i do it?



thans a lot

D
dgschaefer21-Topaz II
21-Topaz II
December 9, 2017
@sportivo_cae wrote:

Thanks a lot.



but i want create a sinusoidal profile with a succession of two semi-circunference.

I want drowing a sketch with the first sinusoid (costitued by two consecutise semicircunference ) and i want repeat this draw for 230 times.



How can i do it?



thans a lot

Pattern is what you want, I believe.  You may be familiar with Solidworks which allos for patterns within a single sketch. You cannot pattern within a single sketch in Creo.



So, create the sketch of the initial sketch with the two semicircumferences then pattern that sketch 230 times.  You probably want a directional pattern with the increment set the same as the length of your intial sketch. Select you sketch feature, select pattern on the toolbar, set to direction, pick an appropriate direction reference, enter an increment, set it to 230 instances.
