is it possible to filter a repeat region by layer?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

MartinHanak24-Ruby III
24-Ruby III
November 3, 2015

Hi,

I do not think that such functionality is implemented.

Can you provide more details ?

MH

SYNDAKIT15-MoonstoneAuthor
15-Moonstone
November 3, 2015

I have set up a repeat region for the bom and some of the time we need to hide parts. most of the time it's from a patterned member but sometimes not. I know suppressing is the correct way but I was asked to make the bom to exclude hidden parts

RaphMORIN16-Pearl
16-Pearl
November 3, 2015

Maybe, in your assembly you could make a simplified representation excluding the components you want. Then in your drawing, you choose the convenient representation. The BOM should update by itself.

In your assembly

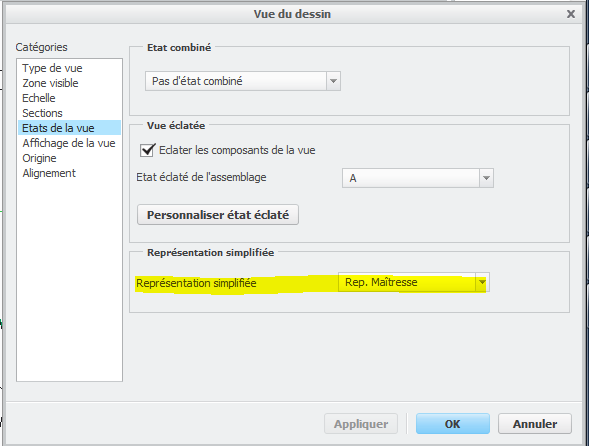

In your drawing
