Repeat Region - Piping Bend Table

Hi,

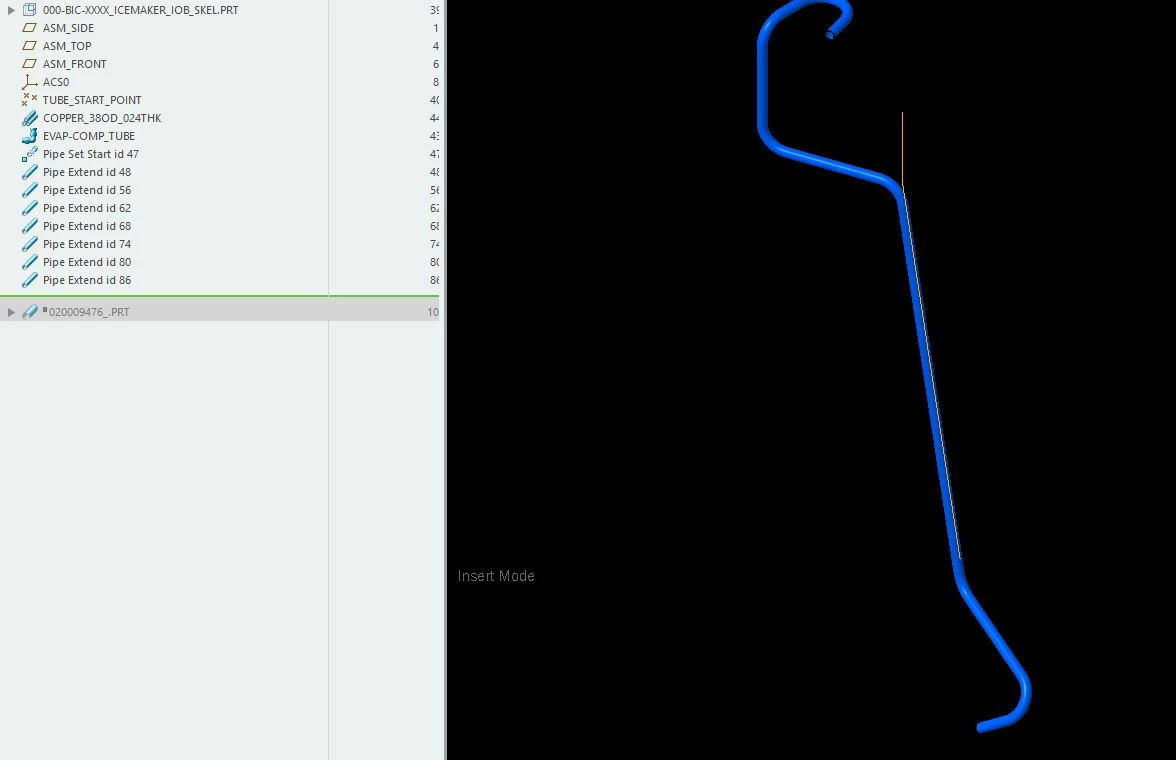

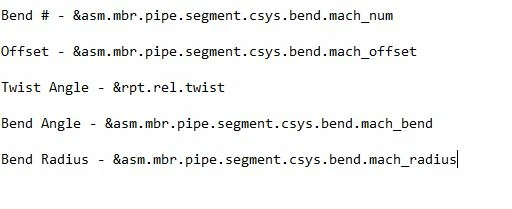

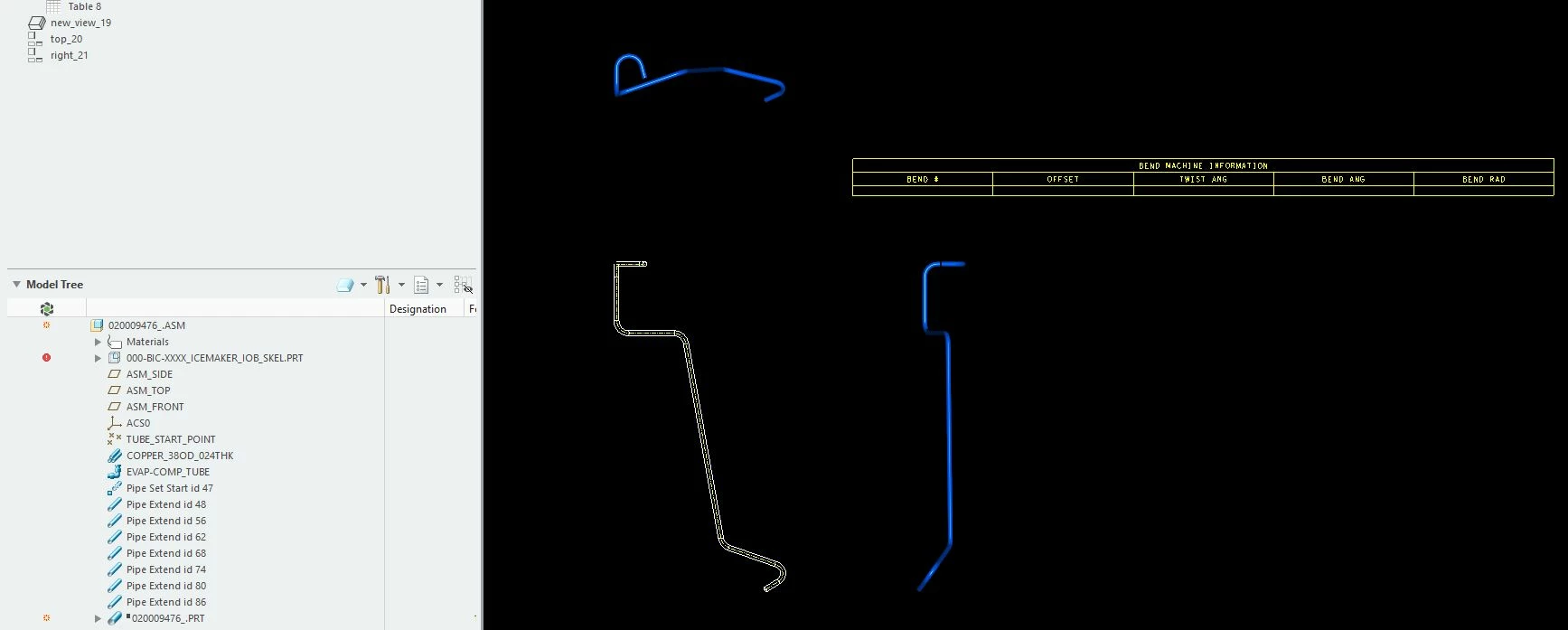

Unable to create a repeat region bend table for the piping assembly. Refer attached snap for the repeat region syntax.  Please support.





2 replies

StephenW
StephenW23-Emerald IIIAnswer
23-Emerald III
Jul 21, 2023 7:17 PM UTC

Review this posts, maybe they will help:

https://community.ptc.com/t5/3D-Part-Assembly-Design/Bending-table-with-Part-Co-ordinate-system/m-p/276045

https://community.ptc.com/t5/3D-Part-Assembly-Design/Pipe-Bend-Tables/m-p/381890



Translate
    MB_1035772412-AmethystAuthor
    12-Amethyst
    Jul 22, 2023 5:21 PM UTC

    Hi,

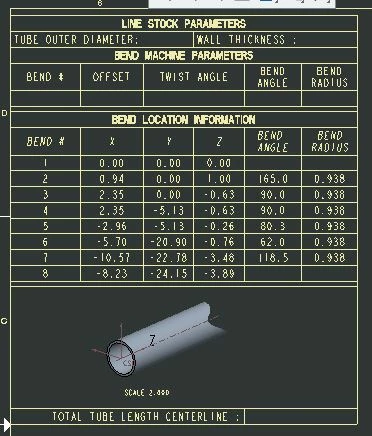

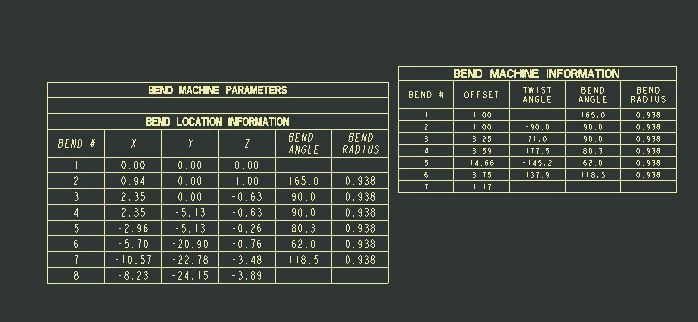

    I would like to combine Bend Table and Bend Location table into single table as per image.



    But for some reason the machine bend values are not appearing in the combine table even though it has same repeat region index. pls support
