Revolve feature in CREO 8, center axis for revolved profile not shown in drawing


Hello experts

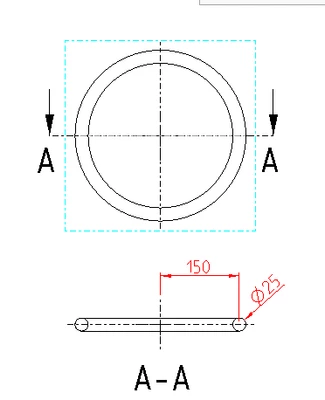

How to create center axis for dia 25 in Drawing using CREO 8, Please some one assist me

kdirth
kdirthAnswer
21-Topaz I
Mar 29, 2023 12:34 PM UTC

The desired function is not available in Creo.  You can submit an Idea to have this functionality added to Creo in a future release here:  Creo-Parametric-Ideas



Until it is added, the easiest way to create the circular axis desired is to create a cosmetic sketch in the part modifying the line font in the properties for the circle.






There is always more to learn.
View in thread

5 replies

MartinHanak24-Ruby III
24-Ruby III
Mar 29, 2023 7:32 AM UTC

Hi,

I think Creo does not create requested axis. You have to add it by yourself as another model feature.

Translate
Chinnasamy_P1-VisitorAuthor
1-Visitor
Mar 29, 2023 8:15 AM UTC

Martin Hanák



Thanks your reply

The issue is there is no option for axis creation (Revolved profile)



Thanks

Chinnasamy

Translate
MartinHanak24-Ruby III
24-Ruby III
Mar 29, 2023 8:34 AM UTC
@Chinnasamy_P wrote:

Martin Hanák



Thanks your reply

The issue is there is no option for axis creation (Revolved profile)



Thanks

Chinnasamy

Hi,

this is not Creo issue. You have to understand that requested functionality is not implemented.

See uploaded part&drawing.
