Question

Revolving Object

  • November 12, 2018
  • 6 replies
  • 2747 views

Hey guys I'm somewhat experienced in Creo but I haven't used the program in a year or so.  I've created a stent design that I would like to revolve in order to create the cylindrical shape, but I can't.  When I try to revolve the surface, it tells me that there are no geometric entities in the area or something like that.  I'm not sure what I'm doing wrong because I am setting an axis of rotation as well.  Any help would be appreciated.  I'll attach the part file as well.

6 replies

24-Ruby III
November 12, 2018

Hi,

your model is created in educational Creo version. It is not possible to open it in commercial Creo version.

StephenW
23-Emerald III
November 12, 2018

Posting a screenshot may help if we can't open the model.

Only thing I can think of is all sketch entities have to be on the same side of the axis of rotation.



Mahesh_Sharma
22-Sapphire I
November 12, 2018

@Matt0198

If you are trying to get the results as in image from Actual, you can use Toroidal Bend. There are many videos available for this feature... one of them is at

https://www.youtube.com/watch?v=3qsL7nGbxsM




Matt01981-VisitorAuthor
1-Visitor
November 12, 2018
Where would I be able to find this tool in Creo 5?
Mahesh_Sharma
22-Sapphire I
November 12, 2018

@Matt0198

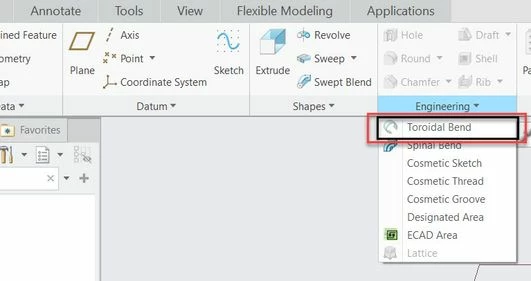

It is available in Model Tab > Engineering drop down
