Morning All

I am modifying a part drawn by A N Other in WF 5.0 M020, we now use Creo 2.0 M110. I have sectioned a part but the drawing will not display the section view.

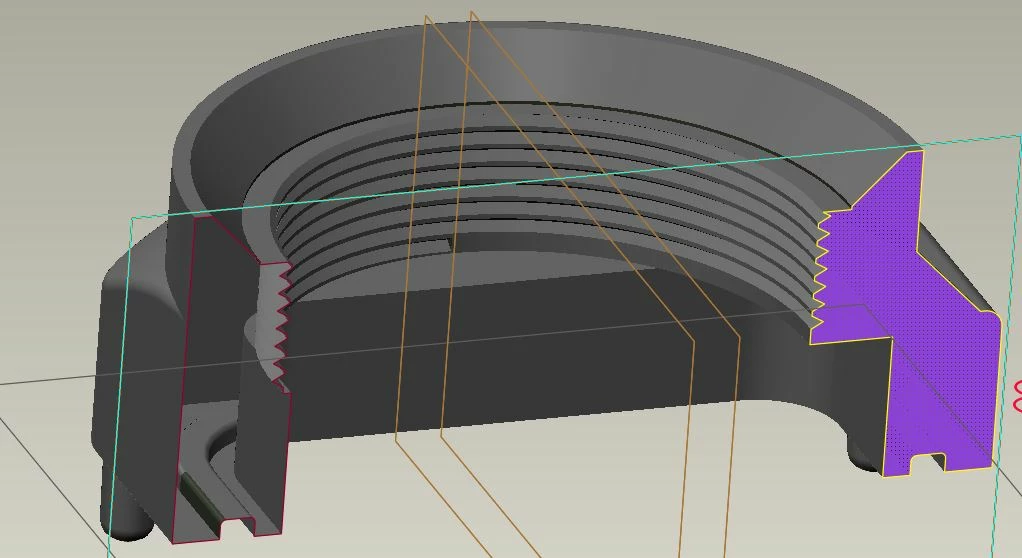

So I checked for any hidden layers in the model and tried to redefine the view and this happens! Any ideas.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Phil,

Change the accuracy of model or create a new section at an offset plane.

3 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
January 7, 2015

Phil,

Change the accuracy of model or create a new section at an offset plane.

DieselPig1-VisitorAuthor
1-Visitor
January 7, 2015

Hmmm..

Made a new plane offset by 0.5 mm and it fix's the problem, thank you for that but, what was the original problem?

dschenken1-Visitor
1-Visitor
January 7, 2015

There is an error in the way the section calculation is done that prevented finding a solution to the intersection of the section plane with all the surfaces. In some numerical solutions this is unacceptable, but for section calculations the cost of avoiding failure by adding more verification checks to the calculations would result in unacceptable increases in calculation time or memory usage. As a result, particularly when a section passes through a plane the geometry was created on or is clocked-to, there is a small chance that no intersection will be found.

The general way to avoid this is to move the section plane a small amount from the creation plane. Even .005mm can be enough to get a visually correct result.
