Selecting Items During a Balloon Component Command?

  • January 25, 2016
  • 4 replies
  • 6218 views

Hello,



I've been a Mechanical Designer for over 5 years and have recently started using PTC Creo Parametric 3.0 M070.  I have asked my fellow designers regarding this issue and have been searching trying to find a solution and have not found anything on it.



I have an assembly drawing with 4 sheets, 2 of which contain Section views.

Within the section views, I am trying to use the Balloon Component command.

I have found that when using this command, I am unable to select items being shown in the section view.

What I have found to be happening, is that it is selecting the items that are in the foreground, yet are not displayed within the view.

So my question is, is it possible to turn off the selection of items not shown in section, so that I can only select items that are displayed in a section view?



I have taken a few screen shots to help explain/show my issue.

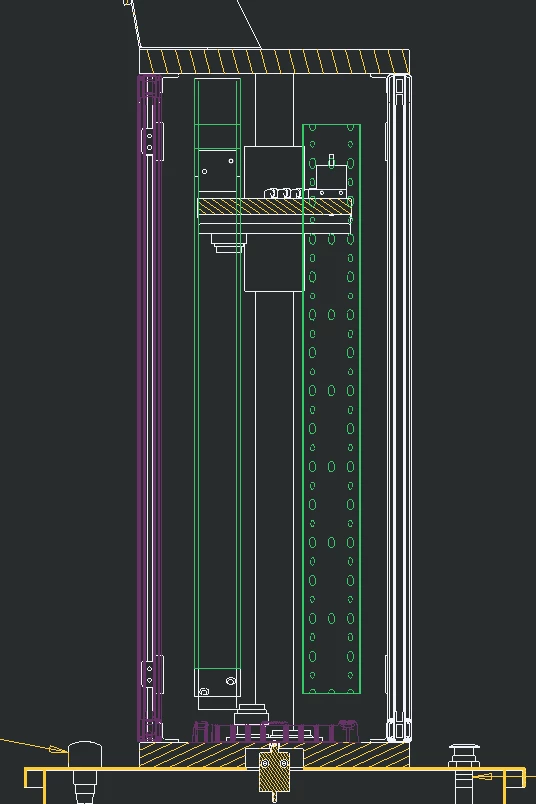

In the first picture, I am able to select the items I want to balloon, prior to running the balloon component command.

I have tried selecting the items, then running the command, but have found this clears the selection.

I have checked to see if the ability to pre-select items before running a command is active, and it is.

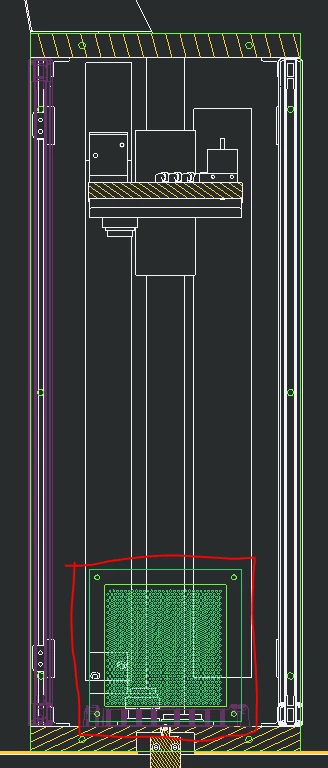

The second picture shows the problem I am having.

While the balloon Component command is active, I am unable to select the items shown in the view, due to the items not shown in the foreground taking precedence over the items shown.



The items circled in red is attached the a plate in the foreground of the machine view.  Both the screen and plate are clearly not displayed in the previous view, yet when the Balloon Component command is active, these objects are all I can select.  This problem happens in all of my sections views, this view just allows me to display it clearly.



Now I know I am able to right click over the object I want.  Select Pick From List in the RMB command window, then select the object I want within that command.   But this route greatly decreases productivity and increases the amount of clicks and commands in order to perform a simple function.



I am also aware that I can use the balloon view command.  However this places balloons all over, and adds balloons that I do not need.  Again adding to the amount of time taken to do a simple function of ballooning a couple components.   Where using the balloon component to select the few items needed in this view would be favorable, but due to the problem I’ve explain in this post, it is just as tedious of a task as cleaning up the balloon view command.



Thanks you all for your help.
