Selecting just one part of a split surface or face

Forum|Forum|14 years ago
January 10, 2012
3 replies
4340 views

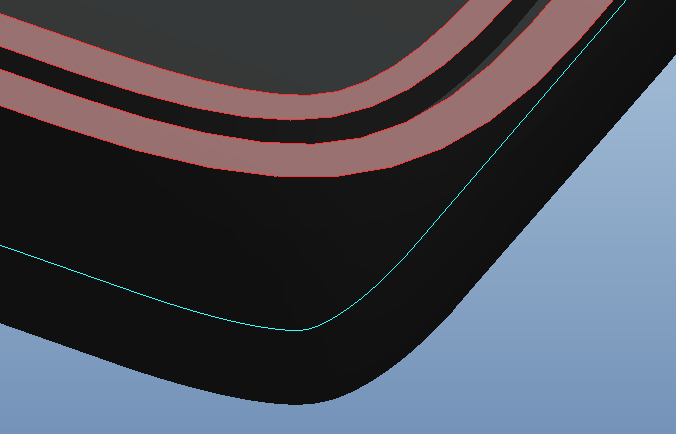

I think the picture says it all. When a surface or face is split, it still seems impossible to select just one part of it. Am I missing something?

Thanks

Surfacing

Patriot_1776

22-Sapphire II

I feel your pain. You can create another surface on top of the one you want, maybe even floating it .002 on top of it if it's just for illustration purposes. But, yes, ths is kind of annoying. Then, there's the fact that Pro/E splits cylindrical and some other surfaces into 2 halves, which I find far more disturbing and feel it's actually a major reason why some features, rounds particularly, fail if part of them crosses over that line. I did a test once where when I could not get a round to work because it crossed that line, suddenly it worked when I built the model oriented such (created new planes rotated 45deg in the Y axis from the default) that the round no longer crossed that line. I think this is a major problem in feature failures and has been at least since V.15 when I started on it.

B

BrianMartin

13-Aquamarine

Hi David...

What are you trying to accomplish in your image? While it's true the surfaces can be tricky, there may be a way to select just one side of that surface you highlighted depending upon what you're trying to acheive.

Write back and let us know more.

Thanks!

-Brian

D

David_M

Author

1-Visitor

Hi Brian

I wanted to Offset > Expand the inner highlighted face. All the workarounds I can think of seem laborious (at least 6 steps).

Thanks

P

ptc-5319961

1-Visitor

Copy/Paste the surface selected. In creating the copy surface, change Options... Copy Inside Boundary and select one of the boundaries you need to select individually. Complete that feature.

Now use the Solidify command and use the Patch option to re-I.D. that surface alone.

"never, never say never"

Patriot_1776

22-Sapphire II

Hmmm, interesting. I'll have to give that a try. Question is, if we can do this, why can't PTC make it so we don't HAVE to do all this monkey business?
