Separate parts from an imported feature assembly

  • November 23, 2017
  • 2 replies
  • 3976 views

Hello everyone,



I currently work on a damper assembly which was imported from another software.

So I've got a part which is only composed of an imported feature.

The fact is that when I "edit definition" of this imported feature, I can see all the different components thanks to the "Import DataDoctor" but I can't do anything with it, i can just select them but copy and paste these component in an empty part doesn't work.



Do you have an idea of how i should proceed to recover the different parts of this assembly ?



Many Thanks,



Florian LOUIS

2 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
November 23, 2017

Florian,



If that data is of assembly, try importing that as assembly in Creo.

Still if it is a part only, One of the options, bit time consuming and you may not like that ....



Open data in Creo > Edit definition on Import feature > Here you will get a list of Surfaces of component ID > Leave only one Component id set and delete others > Come out of IDD > Save that as a new file with new name and processed for the same for another one.

F
florianlouis1-VisitorAuthor
1-Visitor
November 23, 2017

Thank you for the very fast answer !



Ok so I don't have the choice, let's go for hours of delete and save !



Thanks a lot

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
November 23, 2017

BTW in which format you got the data i.e. STEP or IGES .......

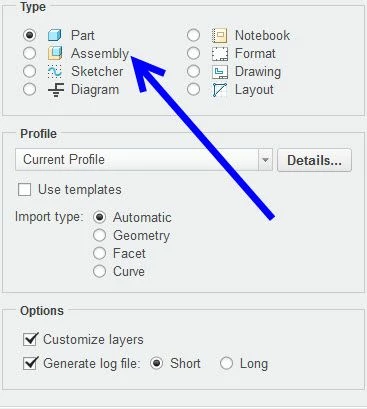

If it was an assembly export, you can try assembly on import..




M
MartinHanak24-Ruby III
24-Ruby III
November 23, 2017

Hi,



ask your partner to recreate export file as assembly.
