Another question for you more experienced Pro/E-ers.

I have a component that is essentially a flat plate, with many RF channels cut into it. I want to shade those channels so that they appear to be gold plated, but doing it surface-by-surface would take forever, given that the component has well over 5K surfaces. Ideally I would like to be able to select the extruded cut feature that I used to create each RF channel and order it shaded, but I can't find the command for that.

Thanks for any help you can think of!


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

6 replies

DavidButz1-Visitor
1-Visitor
October 26, 2010

How about the number of surfaces on the original plate that are NOT gold-plated? If it's only the 6 sides of a plate, color the whole part gold, then recolor the uncut surfaces to some base color.

DanielBrown1-VisitorAuthor
1-Visitor
October 26, 2010

Unfortunately, it ends up about 50/50 by the time it's done, both ways are extremely time consuming if I have to select surface-by-surface.

DavidButz1-Visitor
1-Visitor
October 26, 2010

Don't want to beat a dead horse, but I want to make sure that you are aware that if you put lots of cuts through a surface, you can still pick that original surface with one pick and get all the leftover "mesas" between the cuts.

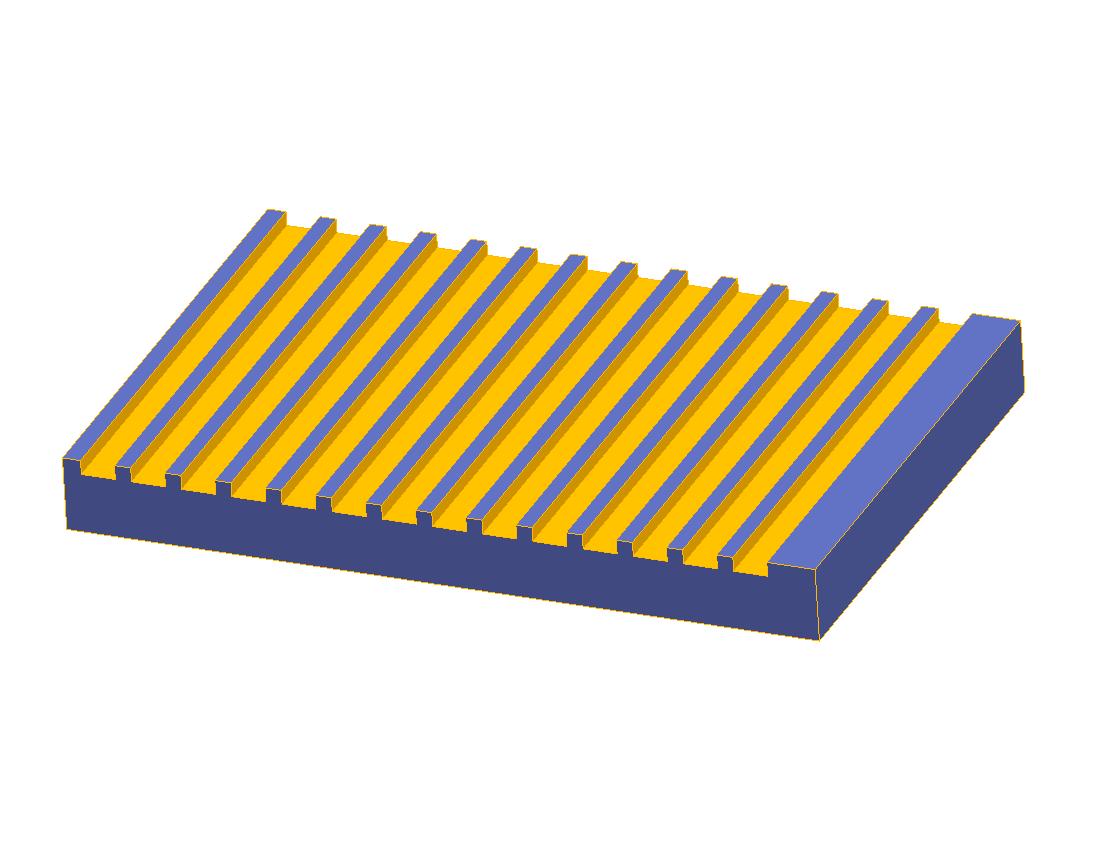

colored cuts.jpg

Maybe your situation is more complex, probably so.

DanielBrown1-VisitorAuthor
1-Visitor
October 27, 2010

Actually came up with a satisfactory solution myself, that does ALMOST what I was describing in allowing you to shade features. If you use the "Select Surfaces" dialog, then right-click and "Pick from List", it gives you the option to select an "Intent Surface", which picks the walls created by an individual feature. Combining that with the mentioned ability to pick all remaining surfaces AFTER cuts go through them let me work it out.

Thanks for the pointers, guys!

Kevin1-Visitor
1-Visitor
October 27, 2010

If you have something similar to what David showed above you can select the surfaces with 6 selections. Select the top surface and then hold the SHIFT key and select the 4 side surfaces. When you let go of the SHIFT key the slots and top surface should be selected. Hold the CTRL key and select the top surface and when you let go of the CTRL key only the slot surfaces should be selected. Called seed and boundary selection method.
