sheetmetal tube unbend

  • May 20, 2015
  • 1 reply
  • 1187 views

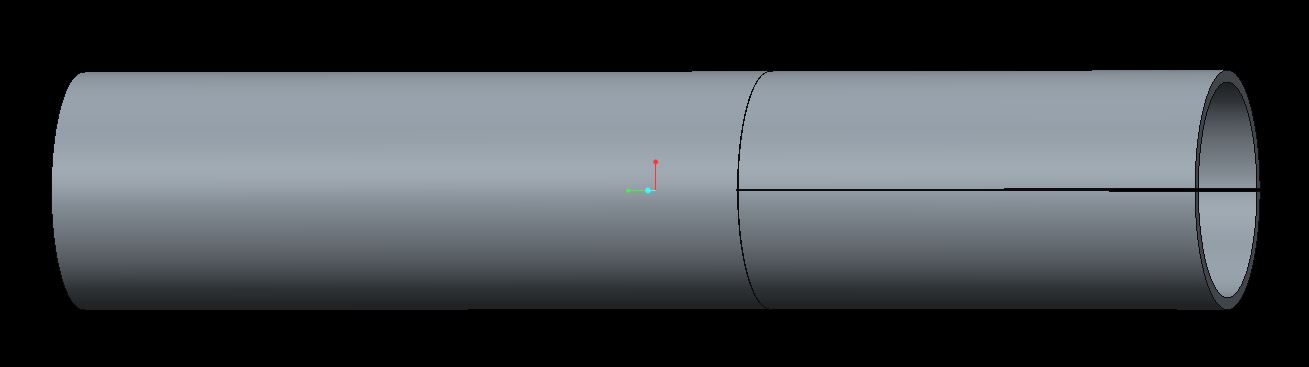

Does anyone know if CREO (2 or 3) can unbend the split portion of the tube in the picture? Currently, it wants to try to flatten the split areas.(first picture).

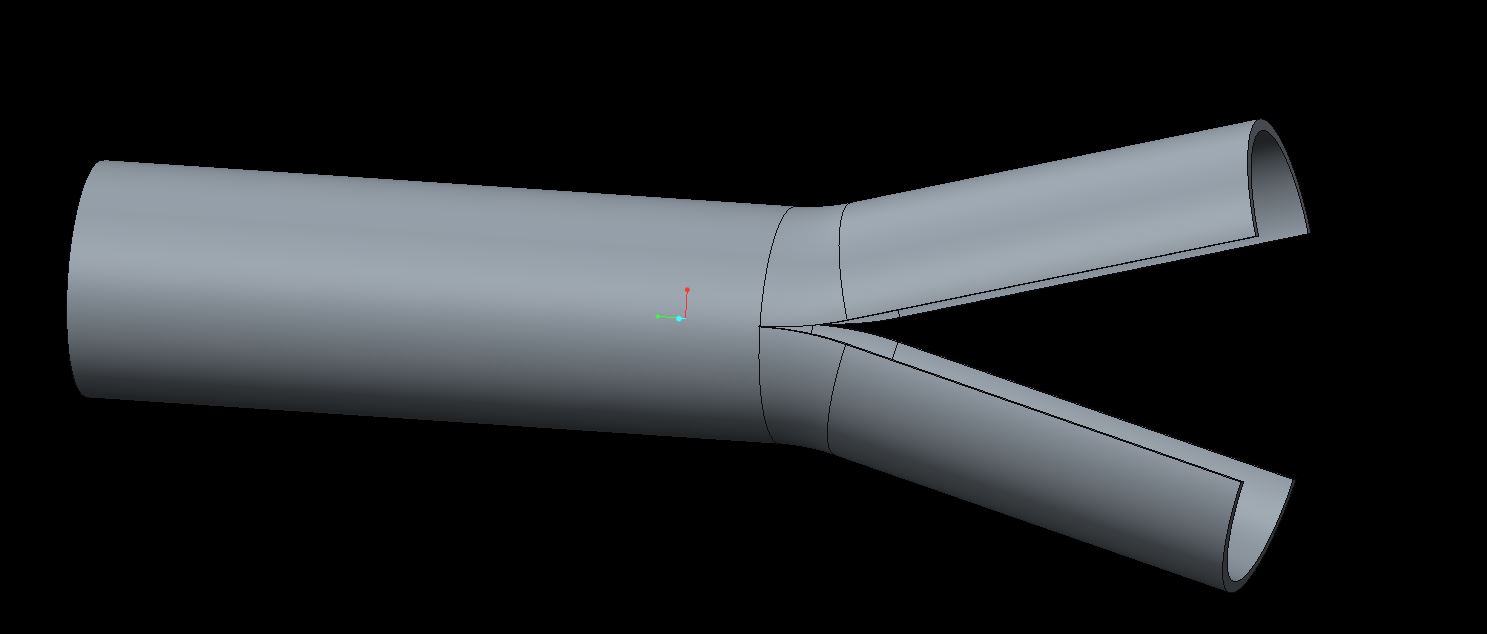

Meaning it work look similar to the second picture.(picture is not 100% exact, but really close.)




This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

B
bduncan17-Peridot
17-Peridot
June 4, 2015

Just like this?

I
Inoram14-AlexandriteAuthor
14-Alexandrite
June 4, 2015

Thanks for the input! But no, I do not want a flat part after Unbend, I want a tube.

Basically this would be a product manufactured from a tube. So I was trying to model it finished but "unbend" it back to initial tube shape. The difference being my simple example above has 2 legs, the actual product will have 6-12 legs with details in the legs.
