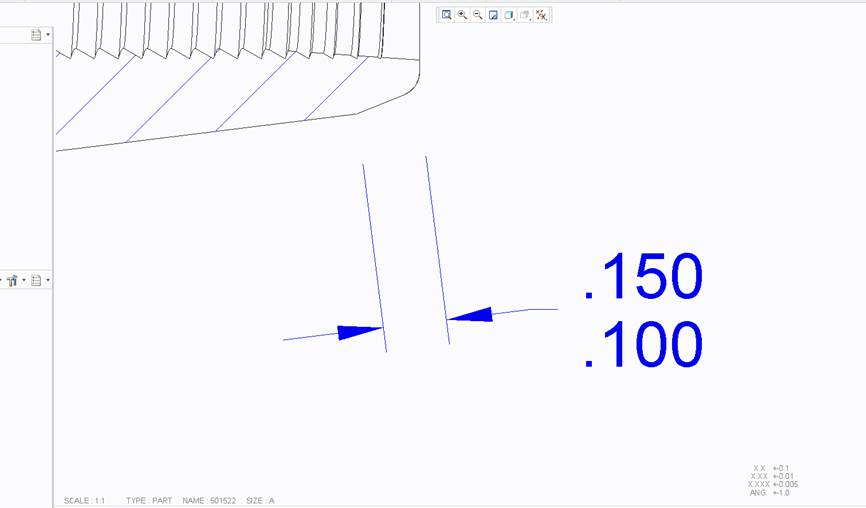

I just did 'show model annotations' and my dimension came out at an angle. How do I adjust it to lay horizontally?



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

D
dschenken1-Visitor
1-Visitor
December 12, 2013

It is showing the correct orientation for the item that is dimensioned, which appears to be the lenght of that side of a chamfer.

The alternative is to create the feature with a dimension from the face of the item.
