simulation problem on connection part

  • December 10, 2013
  • 2 replies
  • 2364 views

Hello everyone,

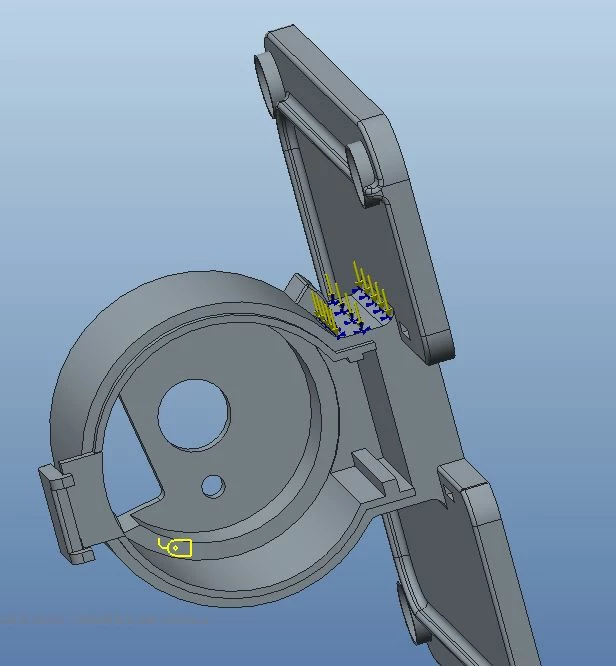

I met a problem when doing simulation on the connection part. I tried to provied some force on the connection interface(see the attachment), but the analysis failed and the diagnostics says : Run completed with fatal error. Do you have any suggestions on that?

Thanks a lot:)


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

346gnu13-Aquamarine
13-Aquamarine
December 11, 2013

Hi,

Your constraint is fully fixing the surface.

Your load is acting on the same face.

The constraint will win and nothing will happen.

The software will warn of this load/constraint conflict in the diagnostics.

This load/constraint conflict is not the reason the model fails.

There is another problem somewhere.

Regards

ptc-50748771-VisitorAuthor
1-Visitor
December 11, 2013

Hi ,

Thanks for your reply, I fixed that and it works now
