How I can understand in what units I working in sketch (not part's sketch)? mm or inches or something else.
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

K
Kevin1-Visitor
1-Visitor
April 19, 2010
It is unitless. When you insert a sketch into a part the sketch dimensions take the units the part is setup in.
V
VitaliyTimoshen1-VisitorAuthor
1-Visitor
April 20, 2010
It mean that if I make font size =3 units (and think that it's mm) If I add this sketch to inch drawing I will get 3inch high font? Amazing.
K
Kevin1-Visitor
1-Visitor
April 20, 2010

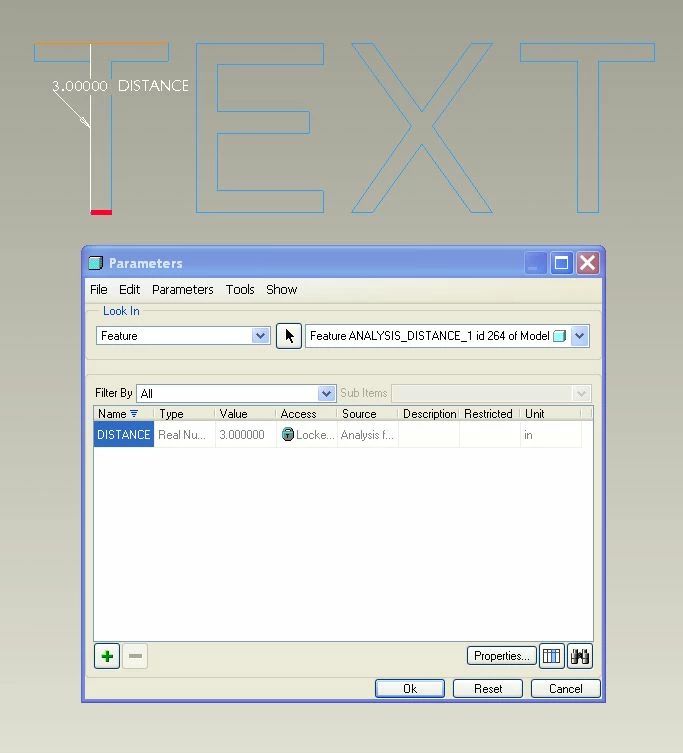

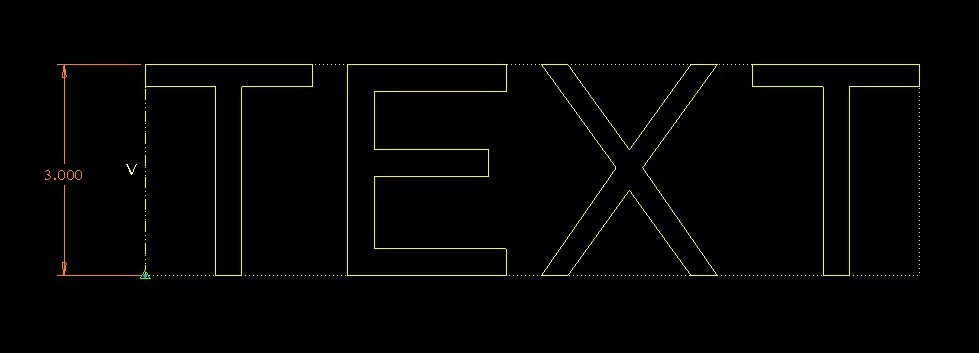

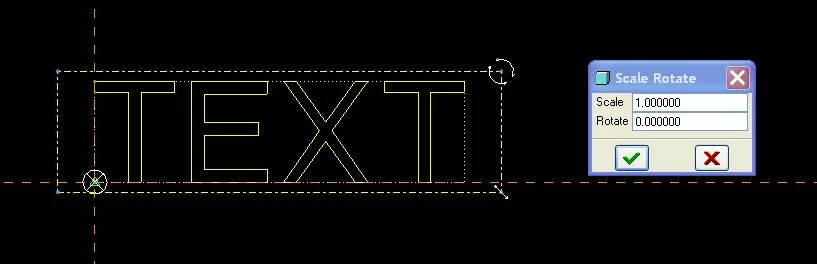

Here is what happens to a sketch when inserted into a part using the ProE default unit system (Inch lbm Second) at a scale of 1. The value in the sketch is a ratio.
