Spiral features ProE Wildfire 2.0

Forum|Forum|16 years ago
March 4, 2010
1 reply
15257 views

I'm looking to create an archimedes spiral feature in ProE 2.0. I've looked everywhere and can't seem to figure it out. The helical sweep only makes springs, so not sure how I can make it. Thanks in advance! Jay
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

J

JonathanHodgson

13-Aquamarine

I'm not sure what you mean by "the helical sweep only makes springs" - it makes whatever section you sketch, surely? If you're trying to model an auger (like a grain elevator, or archimedes water screw) then I'd probably start by revolving a solid "blank" and then using a helical sweep to cut away the slot (you'll need to leave a solid 'core' to stop it becoming a spring!). Really, this is just a male screw thread where the thread depth is nearly equal to the outside radius - and you can certainly use the helical sweep to model a screw thread.

J

jrichard

1-Visitor

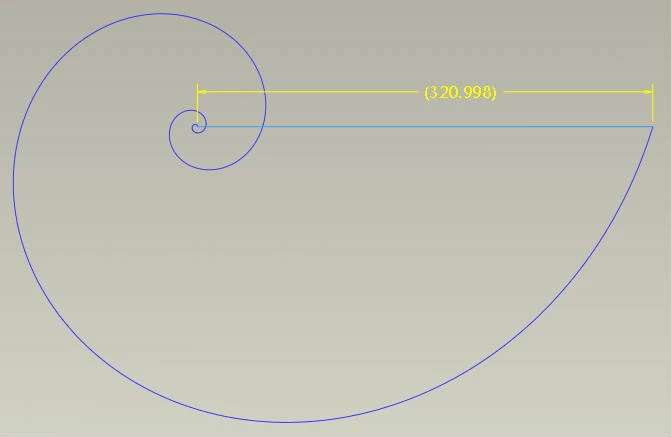

Insert a DATUM CURVE feature by EQUATION, using the CARTESIAN type, and use a similar sets of equations as shown below. x=5*t*cos(10*t*360) y=5*t*sin(10*t*360) z=0 The 10 above controls number of complete turns, the 5 is straight line distance from the start of the curve to the end of the curve, or in this case 0.5 between successive turns. Once you have the desired curve you can sweep a section along it.
