Hello,

I have a connector which is a Stp file and I need to use this in my assembly.

I have imported the Stp file and placed as per my Standard cordinates of my assembly .I am unable to pack(Schrumpfverpackung in deutsch) this Step file .

Is there any which way I can convert this step file to a prt file ?

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Assembly Design

12-Amethyst

when you bring in a step file, it is converted to a part file.

The part file may just be a closed volume solid but still a part file.

Why the file will not shrink wrap (Schrumpfverpackung = shrink package auf deutch, but in PTC terms, I believe this is shrink wrap) I don't know.

I would guess that you have holes in your closed volume solid.

I usually do not have issues with these as my converted step files are contained within a larger assembly.

At this point, I will yield to others that may have more experience in this matter

24-Ruby III

Hi,

I guess you want to create shrinkwrap and the connector is surface model. You have to repair it to get solid model.

MH

Author

1-Visitor

how do I repair the 3D Step Model ?

when I try to shrinkwrap the model , i see a message : No Geomentry selected.

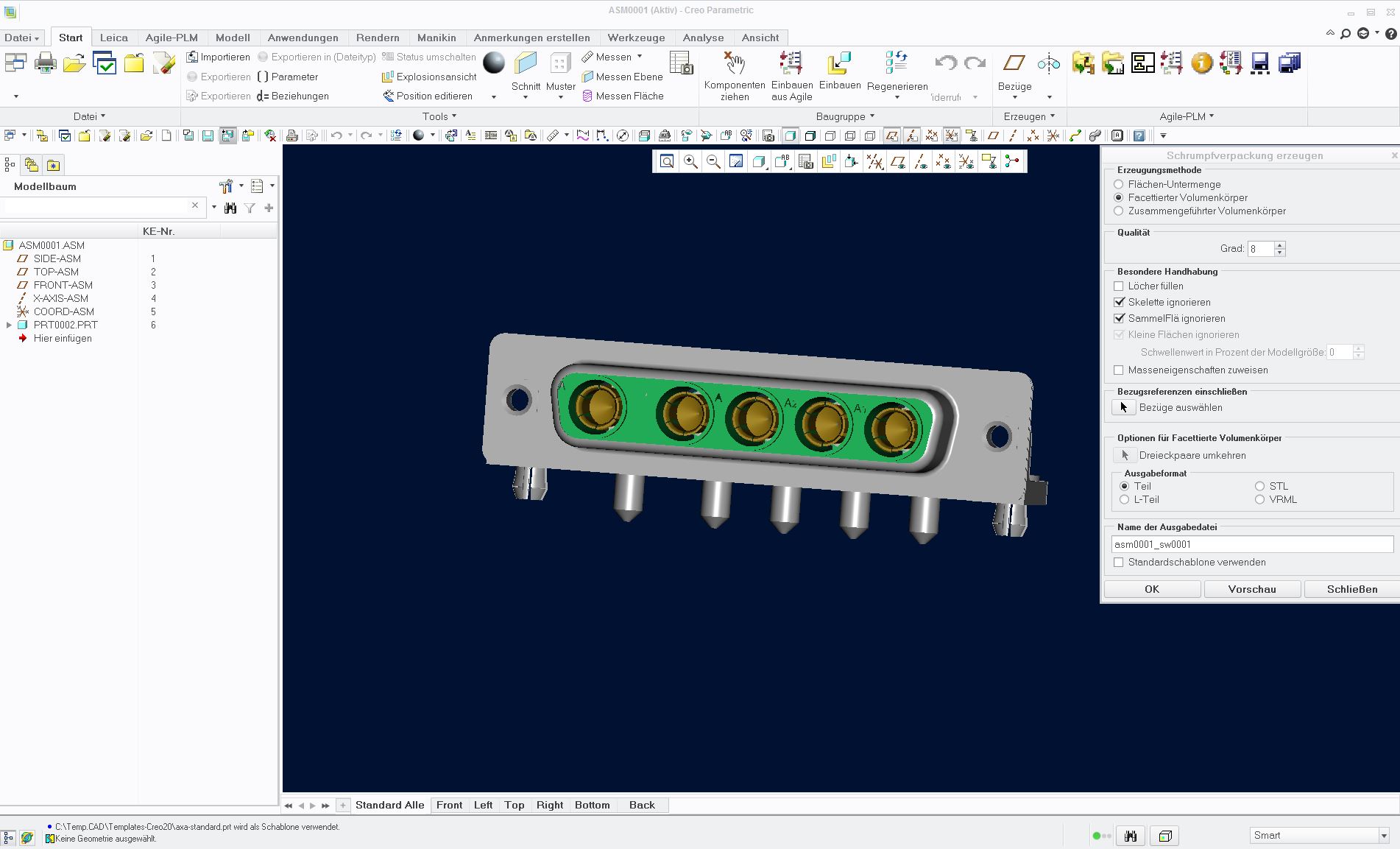

I have attached the screenshots , may be it would help in understanding my problem .

24-Ruby III

Hi,

model repair procedure is individual. please upload STEP file. Use How to attach file when you Reply to a discussion. procedure.

MH
