Still using WF 5.0 - sketch datum point?

  • September 29, 2014
  • 12 replies
  • 3916 views

I am using WF 5.0 and the sketch datum point option is gone. What is it's replacement or where is it hidden?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

12 replies

TomD.inPDX17-Peridot
17-Peridot
September 29, 2014

If WF5 is similar to Creo (the newer "5"), then there are two point features in sketch. The "datum" point is the geometry point, the other is a reference point. Same is true for CSYS and axes.

TomD.inPDX17-Peridot
17-Peridot
September 29, 2014

Welcome to the forum, Matt!

aerickson1-Visitor
1-Visitor
September 29, 2014

Maybe what you're looking for is under the "insert" drop-down menu. Go to model datum < point < point.

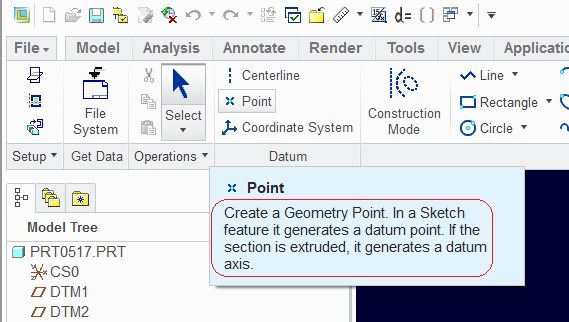

Not sure if this is what you're looking for. It is the same as selecting the "point" option on the side menu (shows 3 x's for its icon).

dgschaefer21-Topaz II
21-Topaz II
September 29, 2014

It's been consoldated into the standard sketch tool. Start a standard sketch and look for the "geometry point" icon.

    mdylewski1-VisitorAuthor
    1-Visitor
    September 30, 2014

    Thanks for the tips. I am not looking to add points to a sketch- I am looking to add a datum point by sketching. All the points in the sketcher do not show in the model as a point that I can reference. I have had some luck with using the datum point tool but it isn't as user friendly as the older sketching option.

    Thanks.

    TomU23-Emerald IV
    23-Emerald IV
    September 30, 2014

    Matt, you're missing it. Adding geometry datum points to a sketch IS the equivalent to the old sketched datum point feature. The only thing you need in the sketch is a one (or more) geometry points (and dimensions). You don't need any curves, lines, etc.

    mdylewski1-VisitorAuthor
    1-Visitor
    September 30, 2014

    I can try it again but adding either point in the sketch didn't show in my model.

    aerickson1-Visitor
    1-Visitor
    September 30, 2014

    Make sure you have datum points view turned on.

    mdylewski1-VisitorAuthor
    1-Visitor
    September 30, 2014

    I am adding a geometry point to my sketch but it doesn't become a point. It becomes an axis. No points show. I am going to stop trying to find a solution. I have found a way to work around it. Thanks to everyone for your help.

    dgschaefer21-Topaz II
    21-Topaz II
    September 30, 2014

    A geometry point, when the sketch is extuded, will become an axis. If used in a stand alone sketch, you get a point.

    mdylewski1-VisitorAuthor
    1-Visitor
    September 30, 2014

    That is why I absolutely love PTC. They always keep you working really hard. Why would they take away from the insert sketched datum tool in the original functionality and separate it? I will try adding a sketch. I was thinking you had to add the datum to the sketch of your feature which didn't make sense at all. Insert picture of me banging my head on my desk here.......

    TomD.inPDX17-Peridot
    17-Peridot
    September 30, 2014

    Wait until you get to features where you don't get to add the geometry point any more when you need one

    But I do not mind having the geometry points recognized as a valid sketch. What gets me is that datum points and geometry points are really the same thing.

    In Creo 2 at least, there is a notice about extrudes creating axes... Probably because others have found what you found. But who reads the little pop-ups anyway
