Solved

Sweep Challenge

  • October 24, 2015
  • 1 reply
  • 2794 views

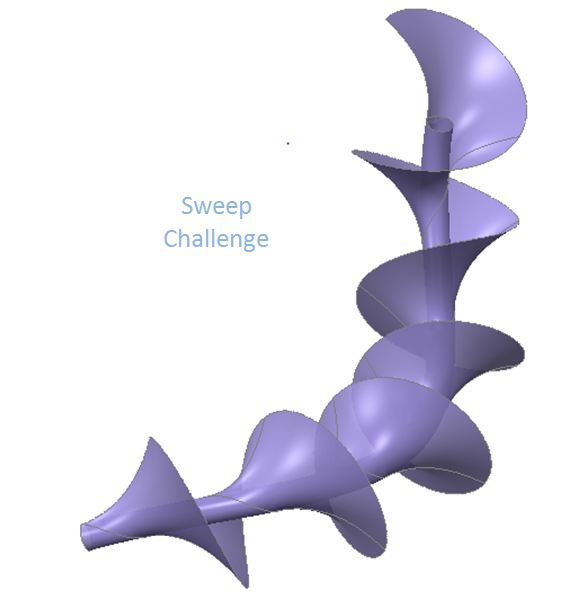

Hi, I have been trying to model the geometry shown below using sweep. I managed to model its trajectory but not the final shape. I attached the stp file here for those who would like to give it a try. Appreciate you can share your technique to obtain the final shape. ThanksCapture.JPG


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    Best answer by TomD.inPDX

    This is where I have to leave you to scratch your head a little and explore the existing model...


    hint: It is as simple as changing the sweep3 section, which is already tangent, by removing the line segment; then using the appropriate edge to sweep the right size cylinder through the part along the edge of sweep1.

    1 reply

    T
    TomD.inPDX17-Peridot
    17-Peridot
    October 24, 2015

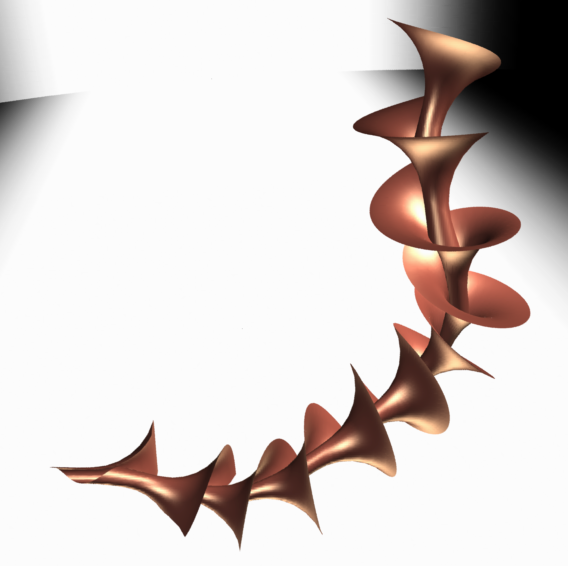

    Without digging into it too far, I am going to suggest that the 1st sweep is done with a VSS for a subtle spiral around a simple elbow.

    The 2nd sweep is an arc profile about the edge of the 1st sweep.

    edit... okay, 3 sweeps.  Yours has a cylindrical core which I didn't add, but the final sweep uses the 2 previous sweeps

    This failed miserably when using a simple line/arc/line sketch.  I switched the original spine to a spline and it worked wonders.

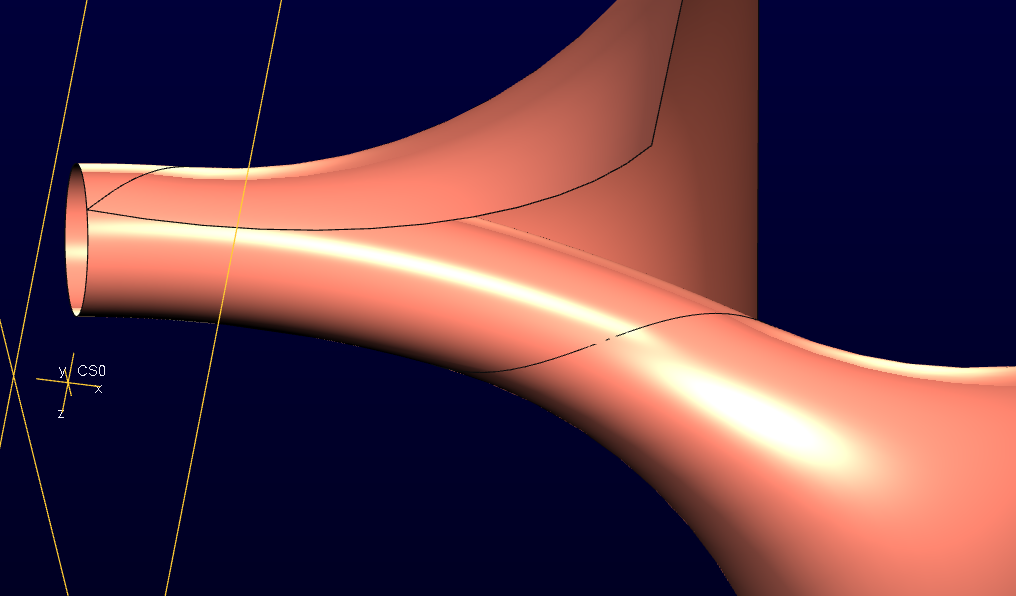

    Creo 2.0 commercial file attached


      B
      BHOoi16-PearlAuthor
      16-Pearl
      October 25, 2015

      wow! nice ! Thanks !

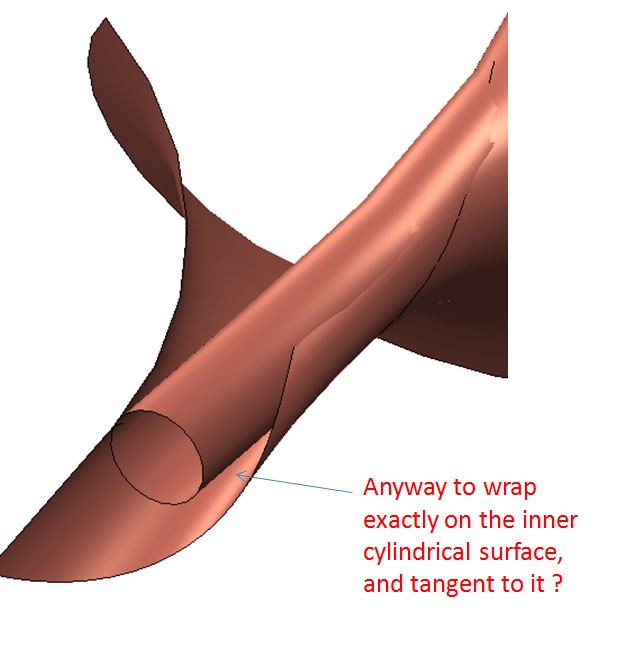

      Being more ambitious now,  I want to ensure the inner edge of the final swept surface lands exactly on the inner cylindrical surface, and tangent to it.(refer to the earlier step model) What should I change to achieve that ?


      T
      TomD.inPDX17-PeridotAnswer
      17-Peridot
      October 25, 2015

      This is where I have to leave you to scratch your head a little and explore the existing model...


      hint: It is as simple as changing the sweep3 section, which is already tangent, by removing the line segment; then using the appropriate edge to sweep the right size cylinder through the part along the edge of sweep1.
