Sweeping an elliptical trajectory

Forum|Forum|10 years ago
October 1, 2015
15 replies
6311 views

Hello,

On WF4. Yes - WF4.

First time on this forum since the switch over.

I would like to sweep a solid along and ellipse so it looks like a spoon shape (no handle). How can this be done? I've use var traj sweep. Will sweep but results undesirable.

Thanks!

Wayne

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

Patriot_1776

22-Sapphire II

Without seeing what you're trying to do, try a regular solid sweep with "Add Inner Faces". If not, you'll probably need to do a Boundary Blend.

W

wfalco

Author

16-Pearl

Frank,

See reply to Antonious. Thanks!

Wayne

K

kschoonover-3

4-Participant

Wayne,

Need a little more info. You say "sweep a solid", do you mean sweep a cross-section into a solid because Creo/Pro doesn't have a drag solid capability except for creating tessellated envelopes, which won't create smooth geometry.

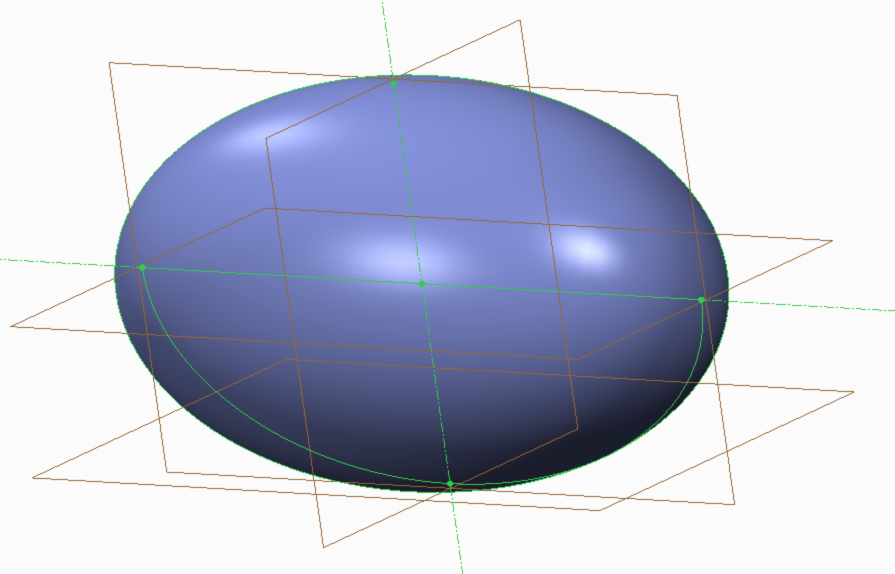

As for a spoon shape, Var traj sweeps can do a lot, but the best way is to revolve an ellipse into a paraboloid (egg shape) and then cut away a portion.

If this isn't what you want, post a sketch of what you're looking for and I'm sure someone will give it a try.

Cheers,

Kevin

W

wfalco

Author

16-Pearl

Kevin,

See my reply to Antonious. Thanks!

Wayne

D

dgschaefer

21-Topaz II

WAYNE FALCO, I don't see Antonius in this thread.

An option using a boundary blend would be as follows (I don't have WF4 installed anymore, or I'd post a model for you):

Sketch an ellipse
Create a datum plane offset from the ellipse sketch the height that you'd like the "spoon" shape to be.
Create a datum point on that plane at the center of the ellipse.
Create a boundary blend using the sketched ellipse and the point as the two curves.
Create a tangency condition at the datum point to the offset plane.

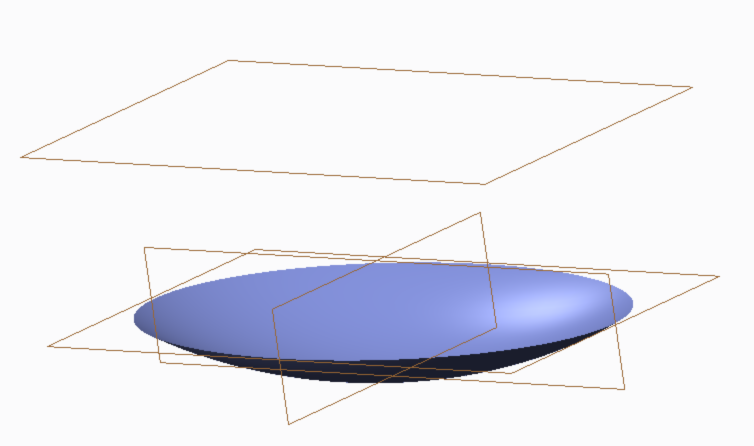

This should create a nice domed surface which you can use to build your solid.
