Test Balloon sizing

  • February 11, 2015
  • 3 replies
  • 2314 views

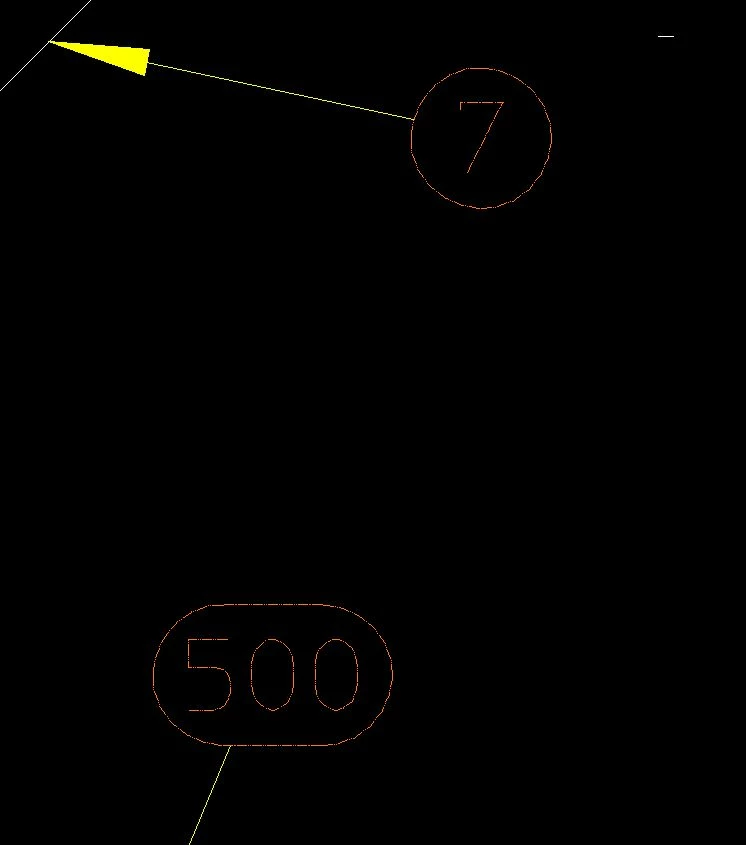

How can the balloon be sized. We use text balloon to identify item numbers from an external BOM. When using more than one digit number the balloon stretches making it oblong rather than a full circle. How can the balloon be sized to be circular or can be sized to be a larger size that would fit the longest number Creo elements/direct 18.1 annotation


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

T
TomD.inPDX17-Peridot
17-Peridot
February 12, 2015

Welcome to the forum, Bob.

Not too many people here are using Creo Direct (Co-Create).

There is a group for that here in the community:

http://communities.ptc.com/community/creo-elements-direct

    R
    ryankelley1-Visitor
    1-Visitor
    February 16, 2015

    I've moved this discussion into our Creo Elements/Direct community so that others who are interested can participate.

    M
    malbrecht1-Visitor
    1-Visitor
    February 16, 2015

    In the drawing options, miscellaneous options, you will find two options named:
    max_balloon_radius:
    min_balloon_radius:
    set the both options to the same value, balloon size wiil always be the same. If needed, change text size, but balloons size will keep the same value.
