Question

To create complex coil as image attached.

  • August 11, 2010
  • 1 reply
  • 6204 views

HOW TO CREATE A COMPLEX COIL IN PRO ENGINEER WILDFIRE 5.0. BY USING HELICAL SWEEP, WE CAN CREATE A SIMPLE COIL. CAN WE CREATE A ANOTHER COIL ON FIRST COIL.?

PL. GUIDE ME ON THE ABOVE ISSUE

REGARDS,

VINAY PATEL


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

M
MikeMinsterkett1-Visitor
1-Visitor
August 11, 2010

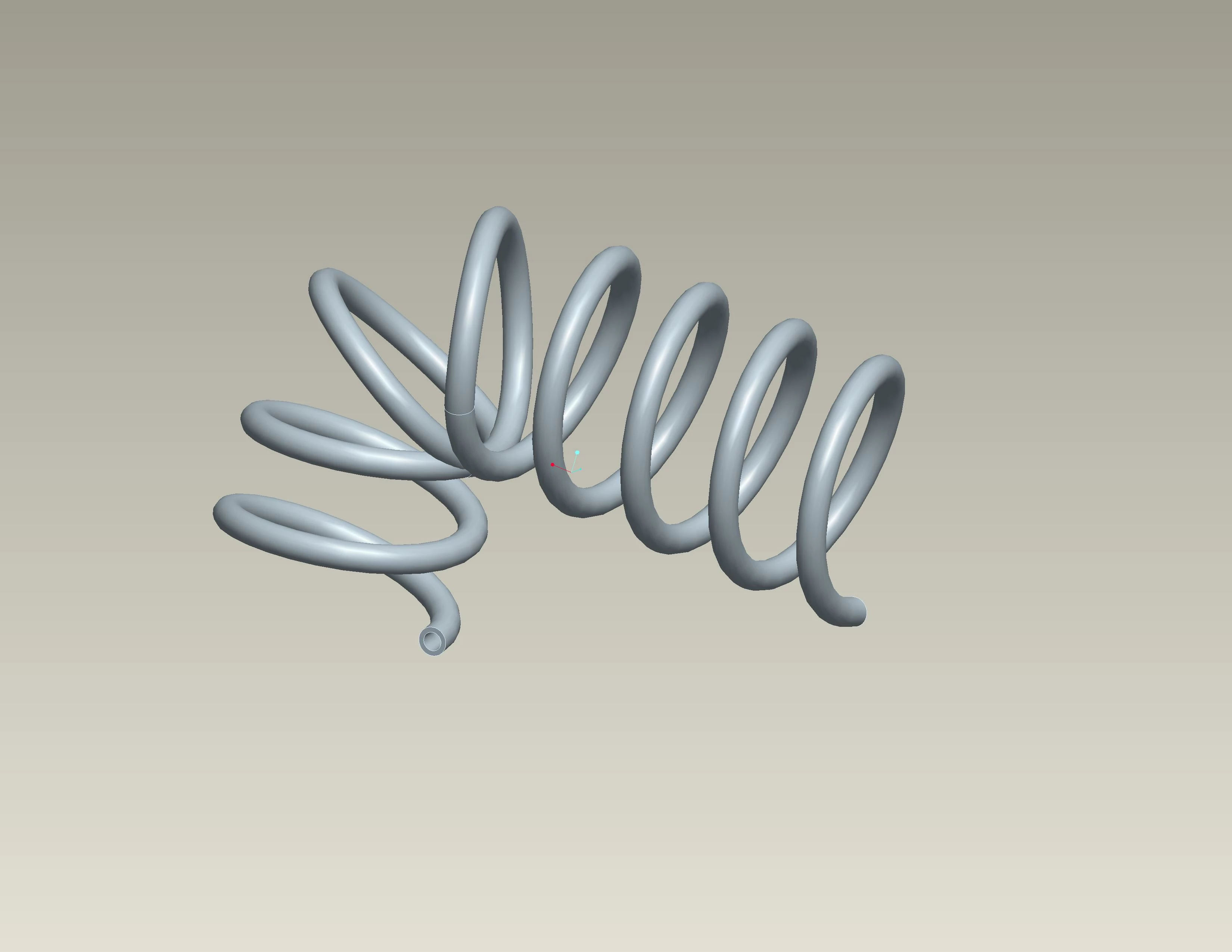

You will have to create a curve normal to the surface where your coil ended. If you want to make a complex coil following a curve you will first need to make a variable section sweep, then you can make a sweep blend after that. I have attached a picture of a bent coil. Is this what you are trying to do?

C
CM101-Visitor
1-Visitor
August 11, 2010

See the thread about twisted wires. you'll need to use a VSS (Variable Section Sweep).

http://communities.ptc.com/thread/32022?tstart=0
