Tolerance overlap issue

  • February 26, 2015
  • 3 replies
  • 3196 views

Tolerance overlapping when add tolerance dimension (plus/minus) in the drawing part. How to fix it? Thanks.

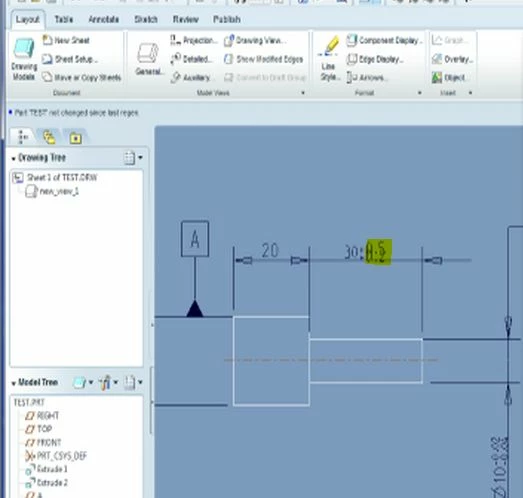

I attached with an example of issue.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    3 replies

    S
    sgupta-21-Visitor
    1-Visitor
    February 26, 2015

    Hello Chin,

    Height and width of the tolerance text are controlle by the following two drawing setup file options.

    TOL_TEXT_HEIGHT_FACTOR

    TOL_TEXT_WIDTH_FACTOR

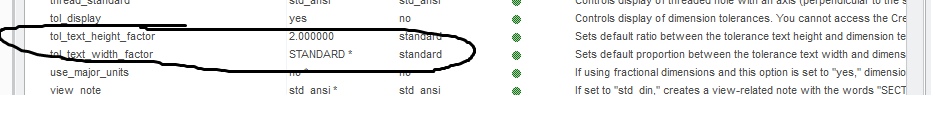

    Change the value as per your requirement.Untitled.png

    C
    cchin1-VisitorAuthor
    1-Visitor
    March 2, 2015

    I did following set up to TOL_TEXT_HEIGHT_FACTOR and TOL_TEXT_WIDTH_FACTOR .

    The text height and width factor change on a line. but, the tolerance plus and minus (2 line) still overlap.

    please advise. Thanks

    Chin

    T
    TomD.inPDX17-Peridot
    17-Peridot
    March 2, 2015

    If this is Creo 3 and you have maintenance, please submit a support case so this can resolved if it is indeed a bug.

    You can also see if this is a configuration problem by opening Creo as a default install. Then changing the settings one at a time to get to what your standard is.

    I do not use this style dimensioning. Normally I just sneak up on these settings one at a time. It makes sense to start with a clean slate.

    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    March 3, 2015

    For a quick trial set drawing option update_drawing as all and update the drawing. (Open drawing, File > drawing options > Add update_drawing under option name and all under value > Add/Change > Close)

      T
      tthangadurai1-Visitor
      1-Visitor
      March 3, 2015

      Hi Chin chin,

      Still you do not find any solutions please upload the model & drawing.

      Regards

      Thangavijay T
