transfer Creo orthographic drawing into Word document

  • December 11, 2014
  • 5 replies
  • 7364 views

hi,

need your help on how to transfer orthographic drawing from creo parametric 2.0 to word document?

what i did was just taking screen shot of it and paste in on word document. if there any possible method to transfer the drawing please let me know.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

T
TomD.inPDX17-Peridot
17-Peridot
December 11, 2014

Welcome to the forum, Burhan.

Every time we discuss printing I learn something new.

I recommend the generic color postscript setting in the print dialog.

A few caveats: 1; this will plot lines in the color of the screen. if you don't want this, you need a pen table. 2; If you scale the output, it will not scale the pen line weights. 3; You have to change the default .plt extension to .eps.

There is a lot to setting up a reliable pen table. However, to simplify matters, you can save one in your working folder and this will be used in the output.

You can also save the print setup file (.pcf) but I have no idea on how to call it back up.

Generically, if you want your plots black and white, and have shaded images be color, this pen table will make sure that this happens:

pen 1 thickness .020 in; color 0.0 0.0 0.0

pen 2 thickness .008 in; color 0.0 0.0 0.0

pen 3 thickness .012 in; color 0.0 0.0 0.0

pen 4 thickness .100 in; color 0.0 0.0 0.0

pen 5 thickness .200 in; color 0.0 0.0 0.0

pen 6 thickness .300 in; color 0.0 0.0 0.0

pen 7 thickness .400 in; color 0.0 0.0 0.0

pen 8 thickness .500 in; color 0.0 0.0 0.0

Copy the above into a file named "table.pnt" and it can be used by any of the plot routines. You can custom name these for the print dialog, but not for the export dialog. (advanced configuration knowledge required).

What this file does is to make sure that the primary 3 pens used in Creo drawings are set to a reasonable convention. The thicker lines are there to flag any entities that are on a different pen layer for some reason. Adjust these as necessary.

Also, the output by default is normally the screen colors. This is often not preferred for drawings so the pen color entry makes sure that all line are black. This does not affect the shaded image views other than the edge colors.

If you want your shaded views to be grayscale, just select the EPS for Laser printer and continue as above.

Most people are perfectly happy to export to PDF for archives. However, as you noticed, MicroSoft and Adobe are still not fully partnered.

Even though EPS is an adobe format, Word does not, by default, recognize .PDF as an import file format without owning the full version of Acrobat.

I know this is a lot of words and the topic of printing can make your head spin. I did give this some thought to get you the best possible output with known limitations.

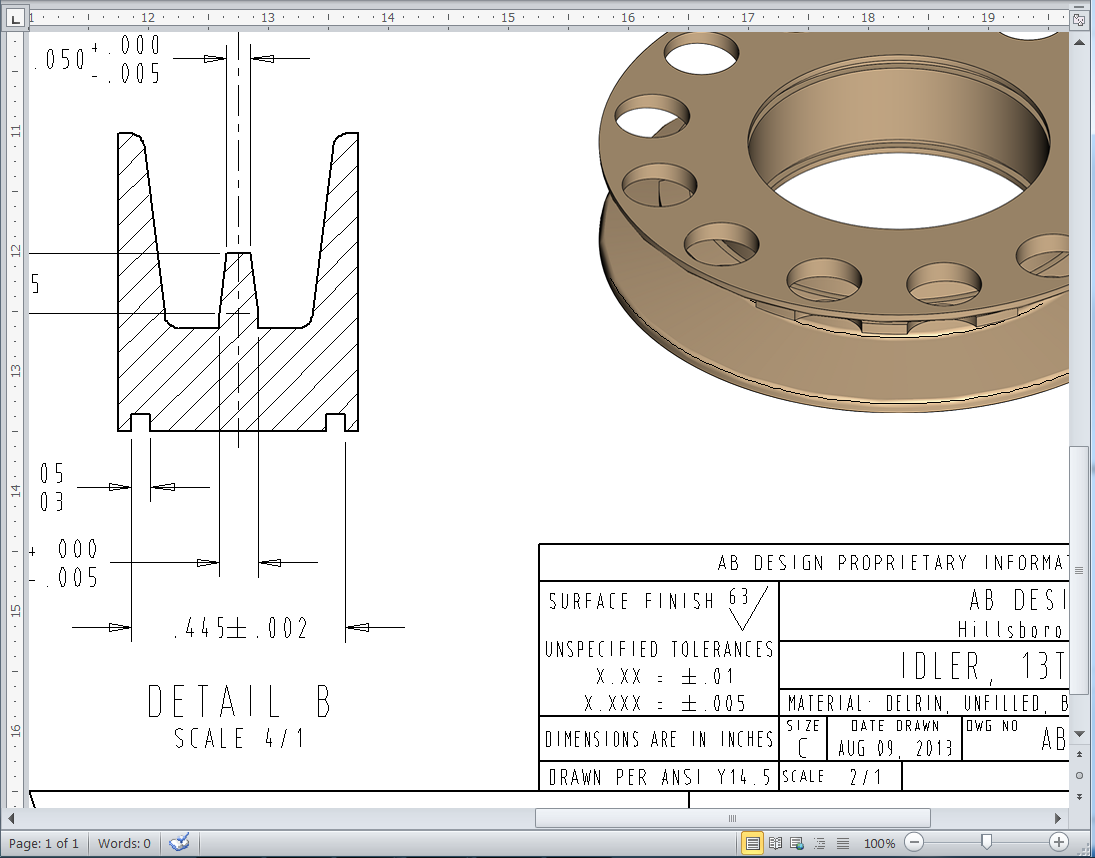

Here is an example of a C-size drawing imported into word using this technique:

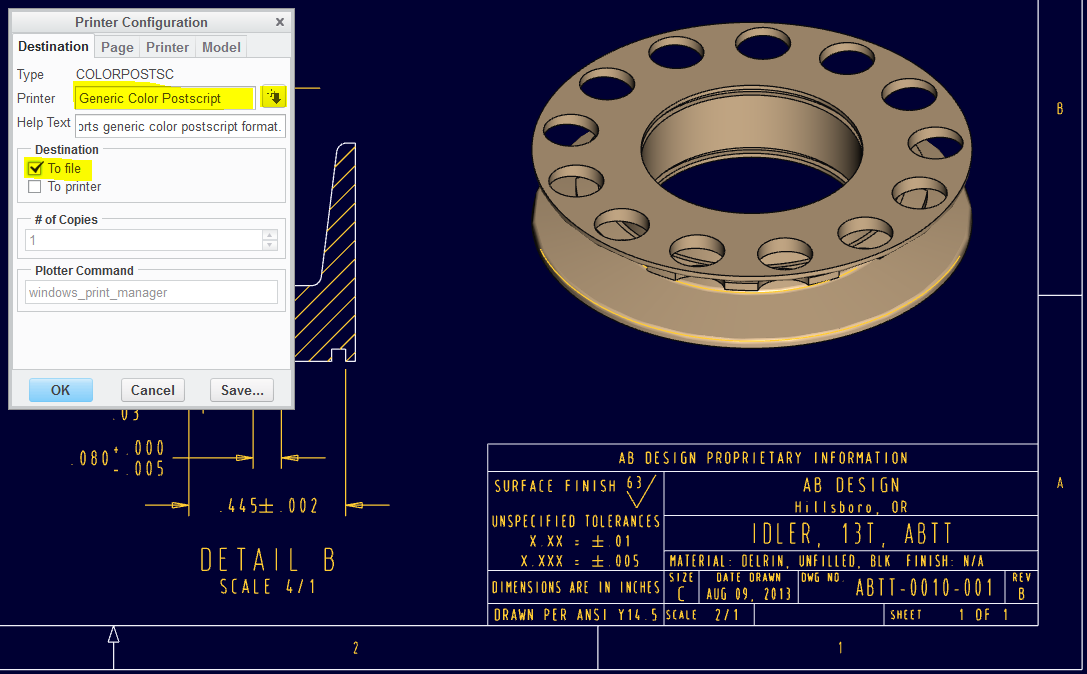

This is the screen in Creo:
