Unable to thicken surfaces on Isogrid design

7 replies
1019 views
Translate All

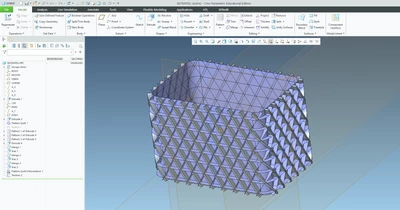

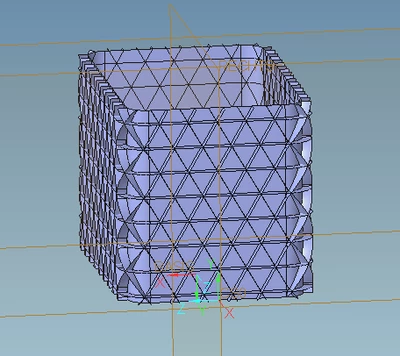

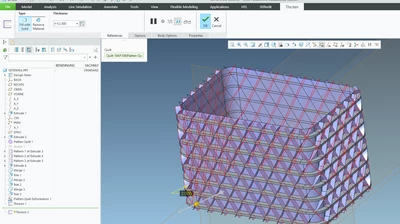

I'm designing a Isogrid geometry in Creo 10, but I'm having trouble with the Thicken feature. Creo allows me to thicken only one surface of this "box"—it doesn't matter which surface I choose, it always works for the first one. However, when I try to thicken a second surface, it fails.

Does anyone know a fix for this?

1_seitenteil.zip

Surfacing

M

MartinHanak

24-Ruby III

Hi,

it is not possible to open your part in commercial version of Creo.

Translate

kdirth

21-Topaz I

Since most people here are professionals using commercial licenses you will need to provide more information.

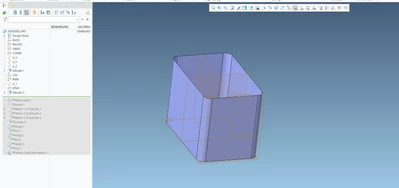

Include model tree
Video
Explanation of how created
More pictures
Etc.

Translate

There is always more to learn.

tbraxton

22-Sapphire II

You could also try exporting your model as a Creo neutral file and a STEP file and post them. If you have these export options available, it will let people investigate the geometry.

Translate

M

MG_9712099

Author

3-Newcomer

Sorry didn't think of the educational version file

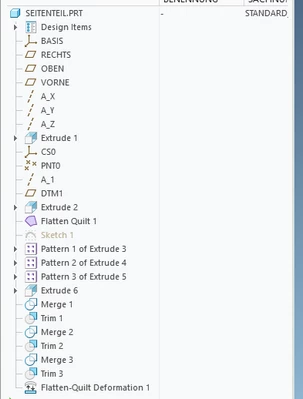

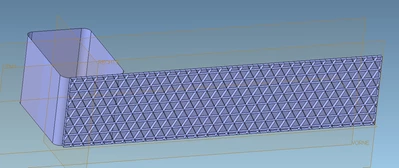

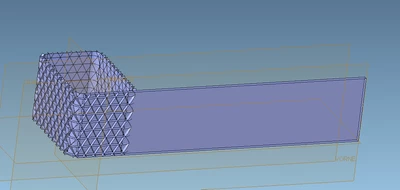

I basically combined the unwraping in this video https://community.ptc.com/t5/3D-Part-Assembly-Design/Draft-a-wrapped-sketch-around-cylinder/td-p/795659 and the method for the isogrid in the part below.

Translate

2_seitenteil-(2).zip

1_isogrid2-prt.zip

tbraxton

22-Sapphire II

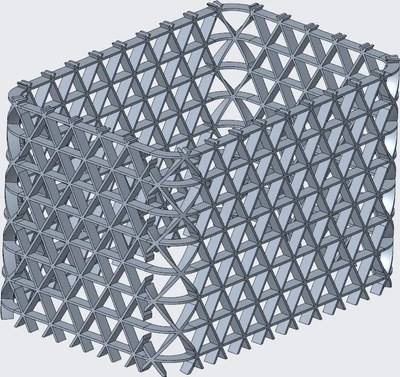

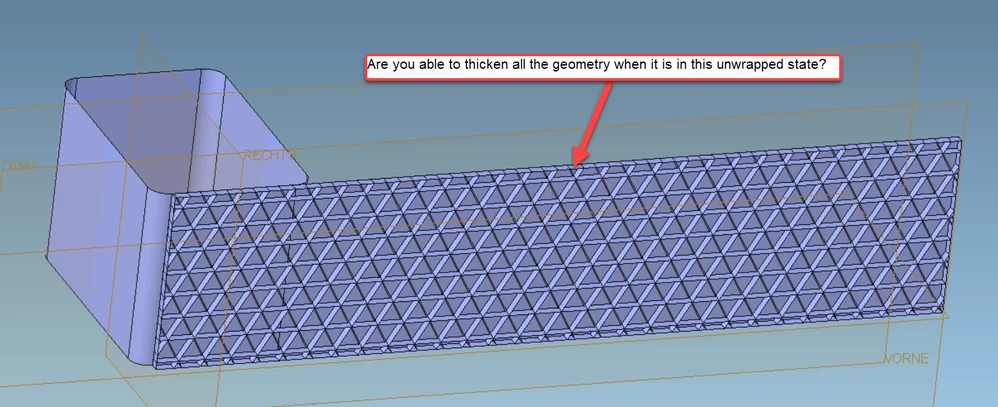

Are you able to thicken all of the quilts in the "flat" state? If not, then it is not likely going to work in the "box" state. I am not sure what algorithm flatten quilt uses but in my experience that is not a feature I would use for engineering purposes. It is not the same as unbend or flatten in sheet metal mode.
