Understanding weight/mass values in Creo 4.0

  • February 25, 2019
  • 1 reply
  • 4493 views

I am new to Creo (CAD in general) and trying to understand how to interpret the value calculations in my assembly after I populated the part models with the same "steel.mtl" value.



I loaded the individual parts as follows:



When in the Model files, I selected:

FILE / PREPARE / MODEL PROPERTIES / MATERIAL … CHANGE / and selected “steel.mtl” from the Material Directory list.

When I go to the assemblies "Mass Properties" window I see a MASS value of 1.3697370e+06 KILOGRAM but do not know how to convert this to either general kilos or pounds. Can anyone direct me to translating this?

Thank you in advance.

1 reply

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
February 25, 2019

Kilos is an abbreviation for kilograms so you are already there, but since the value is so high, I suspect you have a units problem.

You will need to check your assembly UNITS and ALL your parts UNITS. You do that in the same place under FILE - PREPARE - MODEL PROPERTIES then UNITS/change.





C
Chas1-VisitorAuthor
1-Visitor
February 25, 2019

Thank you. Upon opening the Units window as directed, I selected "Mass" in the pull-down the Type,  "kg" for my Units and clicked "New".  It then opened window "Unit Definition". Is this where I now enter the Density for the steel.mtl value? (7.8057331e-06) where the window "Scale" is noted?

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
February 25, 2019

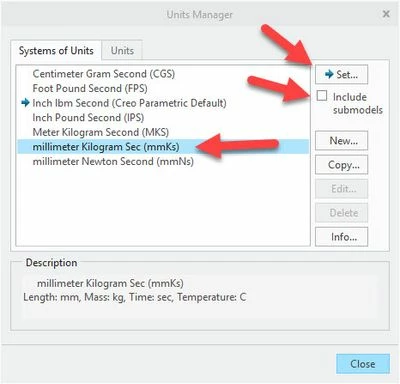

No, sorry...you want to use a "system of units", don't go to the units tab in the units manager. Pick the system of units that match your desired units. If you want metric units, you'll likely want to mmKs (millimeter/kilogram/second) so all the dimensions you enter in your parts will be in millimeters and mass will be measured in kilograms.

Once you select the system of units you desire, then use the SET command to change the model (if you are working in the assembly, you may be able to use the "include submodels" box to change all the parts to your desired units.
