Upgrading WF4 to Creo 3 TrueType font PDF export issues

  • October 25, 2016
  • 1 reply
  • 4309 views

Hello,

I am currently upgrading from WF4 to Creo 3 (M110).  I'm comparing out drawing export to PDF, and I'm seeing some issues when using true type fonts.

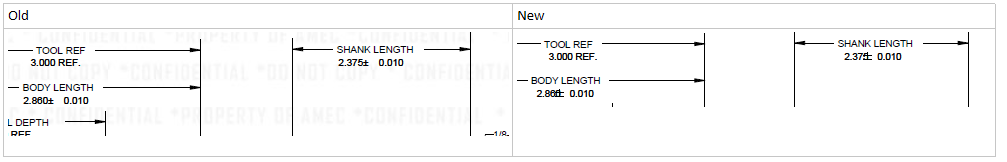

As you can see, the +/- symbol in the dimensions is overlapping the end of the dimension value.  This is only appearing after exporting the PDF with TrueType fonts.  Both the drawing in Creo and a PDF export with stroke fonts correctly displays the dimension symbols.  FYI, this is happening on other symbols too, this was just the best example.

Any ideas how I can export the PDF with TrueType fonts without this overlap?

Thank you,

Corey


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by cvansickle

I have tried this without success. This just results in the same stroking that selecting "Stroke All Fonts" ends up with.  The only thing I have been able to do to fix the problem was to change the font.  "win_font" will work for us.

Thank you all for the assistance.

1 reply

M
MartinHanak24-Ruby III
24-Ruby III
October 26, 2016

Hi,

I can test your problem on my PC. Please create test part+drawing and upload them along with TTF font file. Use How to Attach a File to a Discussion Reply procedure for uploading files.

MH

C
cvansickle1-VisitorAuthor
1-Visitor
October 26, 2016

I've attached a file zip file with the drawing and models.  I've also included screen shots of my PDF export settings and the text styles properties of the dimensions in question.

Also, when I export the PDF from Creo, the lines are much thicker than expected.

Please let me know if you need anything else.  Thank you.
