Weld symbol elbow length

5 replies
2623 views
Translate All

Hi all,

Is there any way I can shorten the length of the elbow in my fillet weld symbol?

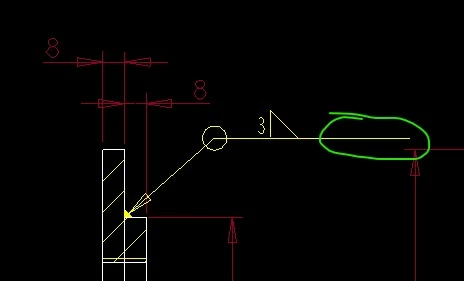

See attached image.

Thanks

kdirthAnswer

21-Topaz I

Changing the length would require modifying the symbol file or creating a new symbol file. Both of which are usually not an option to maintain a company's drafting standards.

There is always more to learn.

M

MartinHanak

24-Ruby III

Hi,

probably the elbow lenght is fixed. Check symbol definition.

Translate

S

SteveJI

Author

10-Marble

Hi Martin, yes it looks fixed.

There is no option (that I can see) to change the length

Translate

kdirth

Answer

21-Topaz I

Changing the length would require modifying the symbol file or creating a new symbol file. Both of which are usually not an option to maintain a company's drafting standards.

Translate

There is always more to learn.
