Where did the "Axis Point" go?

  • April 19, 2012
  • 23 replies
  • 18679 views

Anyone know where the good old "axis point" from the sketcher menu has moved to?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by James62

hi, for datum axes its show_axes_for_extr_arcs option

23 replies

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
April 19, 2012

It went away....BUT, now you can create axis, points, and CS's embedded in all you sketches now. So, actually, that is a great new feature. Sadly, I hate the ribbon so much I've decided to stick to WF4 in spite of this.

JOHNQ1-Visitor
1-Visitor
April 20, 2012

in Sketch mode there is the Point Function. There is 2 selections, one will create a Axis for you.

Took me a awhile to find it (half day). Another way to create Axis to 2 datums normal to each other and a Datum Axis line at their intersection.

KevinBradberry1-Visitor
1-Visitor
April 20, 2012

John is speaking of the "Geometry Point" that can be selected by clicking the flyout menu next to "Point", but for me this will not create a datum axis, it will create a datum point. If I want to create a datum axis in sketcher mode, then I have to use "Geometry Centerline" which can be found in the fly out menu next to "Line".

However, I'm not saying that Frank & John are wrong because for my co-worker the "Geometry point" will create a datum axis.

Does anyone know why this happening?

JOHNQ1-Visitor
1-Visitor
April 20, 2012

that is correct. There are 2 options in the Geometry point selection Icon. One will do what your said and other will create a Axis.

I had to re-create what i meant. Ex. We create slots and dimension to Center. I thru to centerlines in center of slot went to the Point funtion Selected and placed on intersection of centerlines. There I was able to show and Axis in my drawing. I am guessing your need to show a Centerline on drawing?

John

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
April 20, 2012

I REALLY like that you can create these features in your sketch now (CS, point) or datum curve, but I don't like how they've buried all the commands so you have to take a 1/2 day finding them. And I HATE the ribbon, more the more I am forced to use it. As I said, I'm doing all my new design work in WF4 because of it. I spent about a 1/2 day simply looking for the ability to modify a symbol in the dwg in Creo. I got so fed up I called the PTC help desk and took advantage of our service contract. Next time any of you guys with service contracts can't find stuff, call 'em. We start inundating their phone lines with calls because they buried all our normally used commands in the dreaded ribbon, and maybe they'll be forced to fix it.

JOHNQ1-Visitor
1-Visitor
April 20, 2012

When we changed to WF5 it was quite the change from Ver2. The PTC guy didn't even know some of the things we use. Plus he was like teaching us basic functions. Like Color Display. I am like "what". I just ignored him and went on to what we normally use and asked him questions on that. I suppose he thought we already knew where everything was from a Newer version like WF4 in which we didn't have. Some communication breakdown somewhere along the lines.

I do not like the fact of the TABS. Version we worked with prior you did not have to select a TAB just to delete a TABLE, or change a Note or sketch a line or change properties on your View . . . I would have to say they created this not thinking of the Amount of Clicks to do a function. . .

Why doesn't a Real PROE User sit down with the Developer of next Version and refine it.

Call me PTC I will test it for you for a small price. ( Free PROE Seat at my home ) or $$ always works. . . haha

    KevinBradberry1-Visitor
    1-Visitor
    April 20, 2012

    Oh boy, you're going to get Frank started. Check these links out if you want to vent some more:

    http://communities.ptc.com/message/175268#175268

    http://communities.ptc.com/message/174663#174663

    And, go to the Ideas section if you want to help make some changes. Look in the drop down menus "New" or "Browse".

    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    April 20, 2012

    Too late...... I've offered them my help, but........

    AriesChen1-Visitor
    1-Visitor
    April 23, 2012

    Axis Point only exist extrude feature. (or similar feature ex.slot)

    in extrude sketch:

    WF5.0(Creo 1.0)+: "Geometry Point" = WF4.0-:"Axis Point"

    WF5.0(Creo 1.0)+: "Construction Point" = WF4.0-:"Point"

    BrianMartin13-Aquamarine
    13-Aquamarine
    April 23, 2012

    WAIT!!

    The Axis Point feature is not gone, it's simply been moved under Geometry Point. But, remember you can't drop a geometry point in a standalone sketch. You can only do it in the internal sketch of an extrude feature. This has always been the case. In my opinion, this is one fantastic reason never to use external sketches.

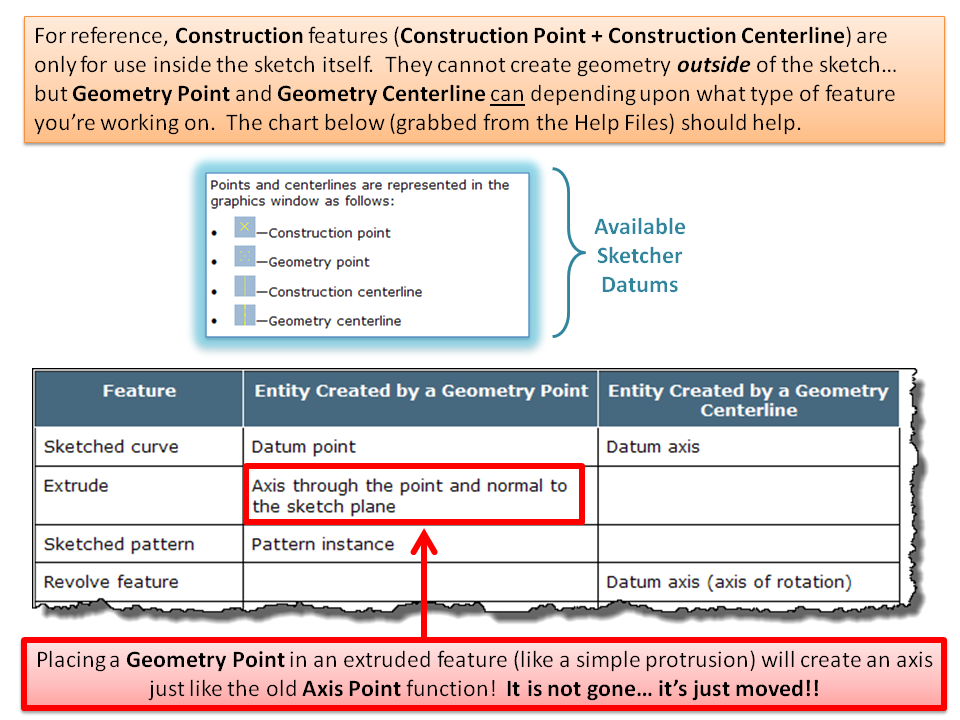

    The show_axes_for_extr_arcs option works... but I find it quite annoying. I like having the control to place an axis point where I need it... rather than having an axis created for me through every extruded arc. Check out the slide below. Click the graphic for a larger, more readable view.


    Thanks!

    -Brian

    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    April 27, 2012

    This is relevant from my other thread:

    http://communities.ptc.com/message/181326

    I had "Geometry Points" I made in a datum curve, and I wanted to rename the points individually, not the sketch, and it took me hours to find the way to do it, whereas I had a simple mapkey before and i cold pick "Other" and rename anything I wanted.

    If you're in a top assembly, and ANY feature or buried feature you want to rename is in a part or lower-level assembly, you must either OPEN that assembly and do it there, or ACTIVATE the part or lower-level assembly where the feature resides. So, you have to do all this, AND scroll thru 2 separate menus containing ALL the many features in a part (some of mine have had 1,400+ features!) to get to a simple rename, instead of just doing it?!?!?! Wow. Can't wait to be done with these changes so I can go back on WF4.

    BrianMartin13-Aquamarine
    13-Aquamarine
    April 27, 2012

    Okay now see THAT comment was truly, truly helpful.

    This is something we should report up to the developers. You've highlighted a relatively simple problem that makes everyday work harder than it needs to be. We should add this as an "Idea" and vote on it.

    I know. I can hear you saying "Why do we need to write an idea that effectively says 'put it back the way it was'?" But I think that's the best procedure to get the issue in front of the community and get it voted up the chain.

    Thanks!

    -Brian

    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    April 27, 2012

    I'd say that PTC doesn't ever find my comments helpful, but if I can help some users avoid my pain, I'm happy.

    This was entirely WAY more work than it needs to be. Like I said, some of my old models had over 1,400+ features! So, I'm supposed to scroll thru that list to find what I USED to be able so simply pick on? Gah!
