Where did the Model Datum feature go in Creo 4.0

Forum|Forum|8 years ago
November 20, 2017
2 replies
8198 views

Hey guys,

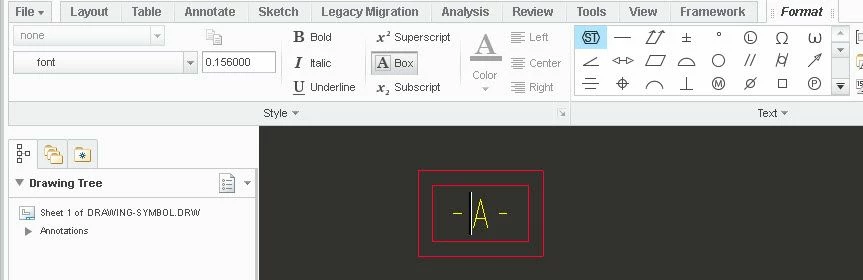

another bumer. We updated the creo to 4.0. I used a Model Datum feature to set up the Datum Planes on my views.

And now in Creo 4.0 its gone. And I can't find anything on the update or what substitude can I use. I am ready to draw it as a skets by now. But there should be some way. Please help!

Thank you.

2D Drawing

This topic has been closed for replies.

A

Adam_Haas

6-Contributor

Creo 4 has moved to a new type that no longer uses a Datum feature, instead it uses geometry references to place the DFS (Datum Feature Symbol). Creating them new seems to be pretty easy and much more straight forward than the previous method.

Here is some info on it https://community.ptc.com/t5/Model-Based-Enterprise-Committee/Datum-Feature-Symbols-in-Creo-4-0/ba-p/444554. You can also probably find some videos on YouTube.

Conversion of legacy drawings to the new type is where the difficult part may be. Decisions will have to be made regarding if you want to convert the old style or leave them as they are. I've attached a couple videos and a PDF on that.

3_Updating-Legacy-Set-Datum-Tags-to-New-Datum-Feature-Symbols.pdf

2_legacy_set_datum_plane_datum_tag_unset.mp4

1_legacy_datum_feature_symbol_annotation_element.mp4

P

pvn

Author

1-Visitor

What if I only need to add this in the drawing?

To put it bluntly I only need to add this block to keep the concistency among our companie's drawings.

I never saw design engineers adding tolerance and datum information in the 3d model. This is extra work for me to do it in the model and then detail it on the drawing again.
