Wrap a datum curve around a cylindrical surface

  • May 30, 2014
  • 5 replies
  • 2397 views

Hi,

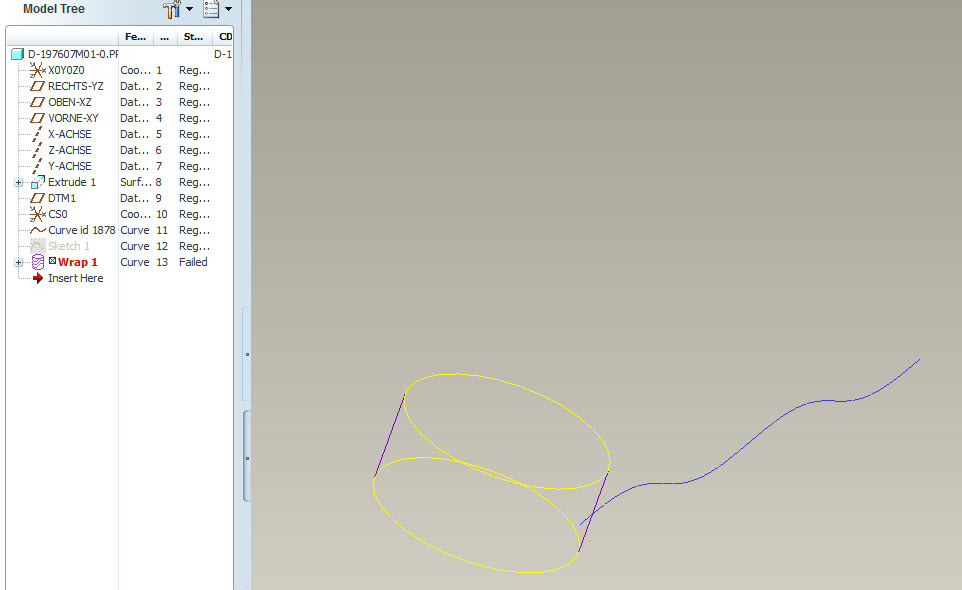

I am having a problem wrapping a datum curve around a cylindrical surface. Here is what I have so far. I need help with this. Thank you!



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Joseph,

As David and Steven mentioned, you need to create a datum csys in sketcher.

Redefine the sketch 2 in attached part and notice that there is a csys.

Check attached file.

5 replies

dschenken1-Visitor
1-Visitor
May 30, 2014

No time to open it - does the curve have a csys? I recall that that's the anchor to stick on the surface.

After that, select Edit/Wrap; I think it's easy from there.

ptc-59393061-VisitorAuthor
1-Visitor
May 30, 2014

Yes. The curve has csys.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
May 30, 2014

Joseph,

As David and Steven mentioned, you need to create a datum csys in sketcher.

Redefine the sketch 2 in attached part and notice that there is a csys.

Check attached file.

ptc-59393061-VisitorAuthor
1-Visitor
May 31, 2014

Thank you Mahesh! So, you need to establish the csys in the sketch before you draw the sketch. Got it! Thank you for your help everyone!
