Wrap a quilt around a solid

  • February 7, 2012
  • 5 replies
  • 4236 views

I have a quilt with approx. 2500 surfaces. This was a laser scan of a textured part. The file was flattened in Geomagic and exported out for me to work with.

What I have is a round core for a mold. The quilt needs to be projected to the core(above parting line).

Looking for ideas(of course, better then mine).

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

S
spooge1-VisitorAuthor
1-Visitor
February 9, 2012

Welp, looks like 'Warp' is where I need to go with this.

Need to figure out how to use it with a spline(s).

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
February 13, 2012

Why not just wrap a blanket around it instead?

.

.

.

.

.

.

.

.

.

.

.

.

S
spooge1-VisitorAuthor
1-Visitor
February 14, 2012

Real Funny.

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
February 14, 2012

Thanks! I'll be here all week.....and please don't forget to tip your wait staff!

D
DarylWolf1-Visitor
1-Visitor
February 14, 2012

if you have a decent quilt you can make a solid block and just solidify cut the quilt out and then move on. not sure why you would flatten it to work with it.

S
spooge1-VisitorAuthor
1-Visitor
February 14, 2012

Hope this clarifies for the jokesters and everyone else that might have some input.

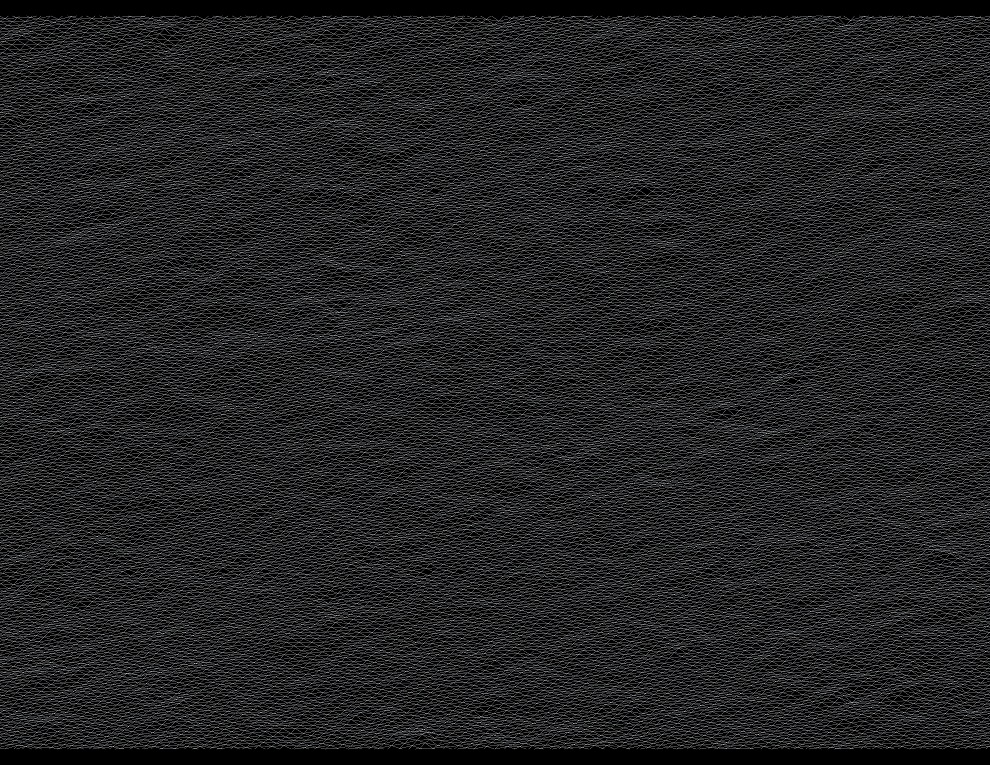

This is the quilt. There's over 2500 surfaces here.


spooge wrote:

I have a quilt with approx. 2500 surfaces. This was a laser scan of a textured part. The file was flattened in Geomagic and exported out for me to work with.

This surface has been flattened in Geomagic so we can manipulate......In Geomagic. Not ProE.

The warp feature in Pro will bend, but I can't get it to work with splines for an accurate wrap.

Thanks

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
February 15, 2012

Why??? Texture is almost never added to a part. They photo-etch it in the mold. IF, and that's a HUGE if, you can even do it somehow, it's going to be so distorted from the original "flatten" back to the final "wrap" as to be completely useless. I seriously doubt Pro/E could even do so many faces.

Good luck.

S
spooge1-VisitorAuthor
1-Visitor
February 15, 2012

I'm well aware of texturing. We have a laser for this.

The term "textured" that I used was the only way for me to describe the quilt.

Ufortunately, I cant't get into detail of this project.

The goal is to get the surface from a flattened state to a wrapped.

Thanks

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
February 23, 2012

Try a spinal or toroidial bend.
