X,Y formated annotations in drawings

  • September 25, 2013
  • 1 reply
  • 1985 views

Hi,

is it possible to apply (x, y) style for annotate formats in drawing file?

thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
September 25, 2013

Yes you can... I'm sure of it - but you'll have to give us more information to say for sure and exactly how to accomplish this.

D
Dante1-VisitorAuthor
1-Visitor
September 25, 2013

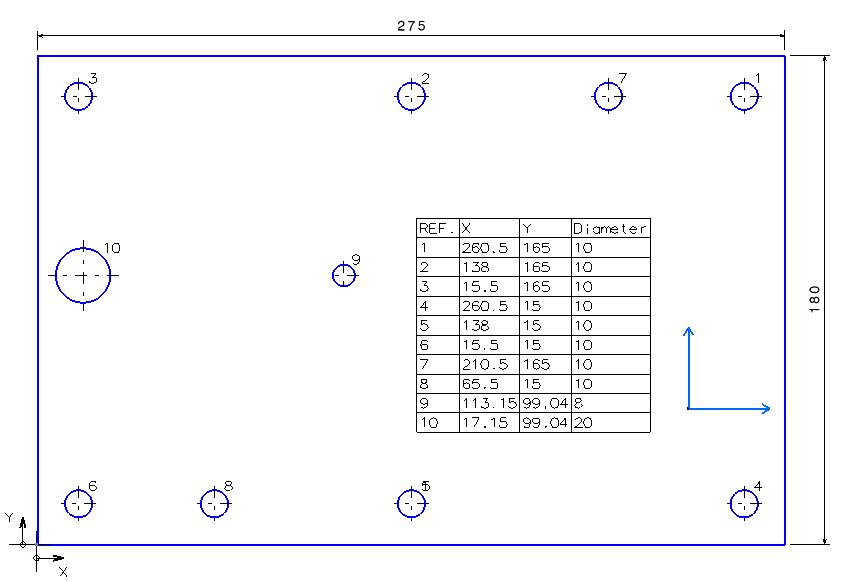

suppose you want to annotate coordinates of multiple holes on a plate according to a ref point. (x,y) format is very handy for performing manual machining or manual nc code programming. below pic is an example approch in catia:


T
TomD.inPDX17-Peridot
17-Peridot
September 25, 2013

Now that makes it a whole lot easier to discuss.

I can see doing this in a manual way by loading the table with dimensions and relations. They will remain associative. As long as the dimension style stays simple like this (no dual dims or special tolerance display) this is more than achievable.

I would like to know from people who do this on a regular basis to post with regard to this. I am certain I don't know the -easiest- way to accomplish this.

Please confirm what you have access to. Are you making the model, or just creating the drawings? Ideally, this is a native Pro/E-WF-Creo model and you have access or input to the modeling process.
