Question

zip gaps

  • July 15, 2010
  • 2 replies
  • 1375 views
We updated to W/F 4.0 from 3.0.

Can any of you folks that are experienced with repairing imported geometry
explain to me how to go about zipping gaps within W/F 4.0. In W/F 3, it was
under the geometry tab. Under 4.0 it appears to be under import data doctor,
but I see no zip gap functionality there. it got to be somewhere.



Thanks.













Best regards

Kelly Gensley





Genz Design & Machine L.L.C

Box 232

Victor, Iowa 52347

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

P
PatrickMcGee1-Visitor
1-Visitor
July 15, 2010

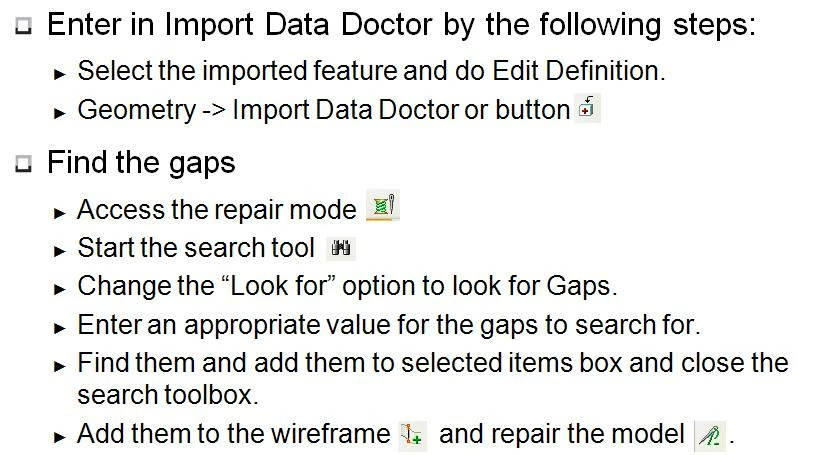

Hi Kelly, just follow the steps below.

Enter in Import Data Doctor by the following steps:
Select the imported feature and do Edit Definition.
Geometry -> Import Data Doctor or button
Find the gaps:
Access the repair mode
Start the search tool
Change the “Look for” option to look for Gaps.
Enter an appropriate value for the gaps to search for.
Find them and add them to selected items box and close the search toolbox.
Add them to the wireframe and repair the model .

Patrick
B
bfrandsen10-Marble
10-Marble
July 16, 2010
There is a "Getting started with Import DataDoctor" PDF tutorial incl.
models in Pro/ENGINEER Help Center that comes with your install.
Just click Tutorials under Quick Links and you will find it.

Bjarne
