black color mesh domain in flow analysis

  • August 12, 2025
  • 1 reply
  • 432 views

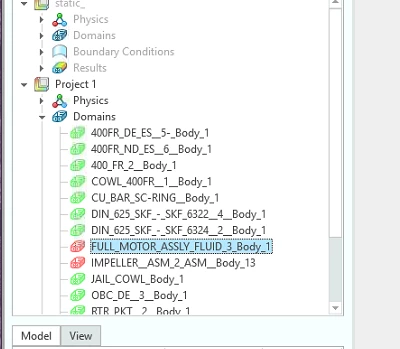

Anyone know why fluid domain color is red in flow analysis i have add fluid and solid domain and generate the mesh but it not generated for internal fluid domain i also attached the reference image




1 reply

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
August 13, 2025

Similar question - "Flow Analysis Domain Icon Colors (Creo 7.0.9.0)": https://community.ptc.com/t5/Analysis/Flow-Analysis-Domain-Icon-Colors-Creo-7-0-9-0/td-p/883712

A
AK_1094868511-GarnetAuthor
11-Garnet
August 14, 2025

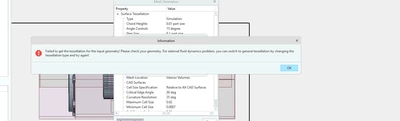

Thanks, that was helpful. However, while meshing, I get an error in my model. I created a fluid domain and split it multiple times, but even when I tried with the complete domain, I still got the same error. When I switch to the general option, it generates multiple domains in additional domain.
