I want to make "GENEVA Mechanism" in Creo 2.0... so plz help me which type of constrain i use for that...????

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Mechanism Design

Best answer by dbodar

Its done by CAM Mechanism....

In that you must have to define the LIFTOFF...

Value of Liftoff is 0.10

if I take 0.5 than interset are occured. Video Link : 5026

J

jsarkar

1-Visitor

Welcome to this forum,

slot follower mechansim can be appliead definitely by predifing the motion curve and point. I am trying to explore the other methods, please let us know if you can explore new method too. Its a nice mechansim.

Regards,

Jayanta Sarkar

T

TomD.inPDX

17-Peridot

I am wondering if you have to mimic this action with a custom servo motor profile.

D

dbodar

AuthorAnswer

1-Visitor

Its done by CAM Mechanism....

In that you must have to define the LIFTOFF...

Value of Liftoff is 0.10

if I take 0.5 than interset are occured. Video Link : 5026

T

TomD.inPDX

17-Peridot

Nice solution!

How did you figure out the cam profile?

D

dbodar

Author

1-Visitor

If I used 3D contact

than prob occured as shown in video

in this i done dynamic analysis

Video Link : 5031

L

LndoVnBtchmrk

12-Amethyst

Here's a different approach. I did what Tom suggested and used a servo for drive and driven wheels. The driven wheel's motion is defined by tabular data, but it's very accurate.

Always wanted to model a spherical geneva drive. Fun stuff.

Video Link : 5028

T

TomD.inPDX

17-Peridot

Beautiful, Andrew!

D

dbodar

Author

1-Visitor

Can give me to dimension of sperical gevena drive...

or any internet link for dimension...???

T

TomD.inPDX

17-Peridot

Any size you want. A little thought will tell you want has to be done to make the geometry.

Essentially, it is a conical boss (optional) and a pin at 45 degrees from the boss. So the slot has to be 45 degrees vertically as well.

Andrew, can you post the graph for the servo definition you used?

L

LndoVnBtchmrk

12-Amethyst

Models are attached. The data points for the 1st and second driven wheels are attached also.

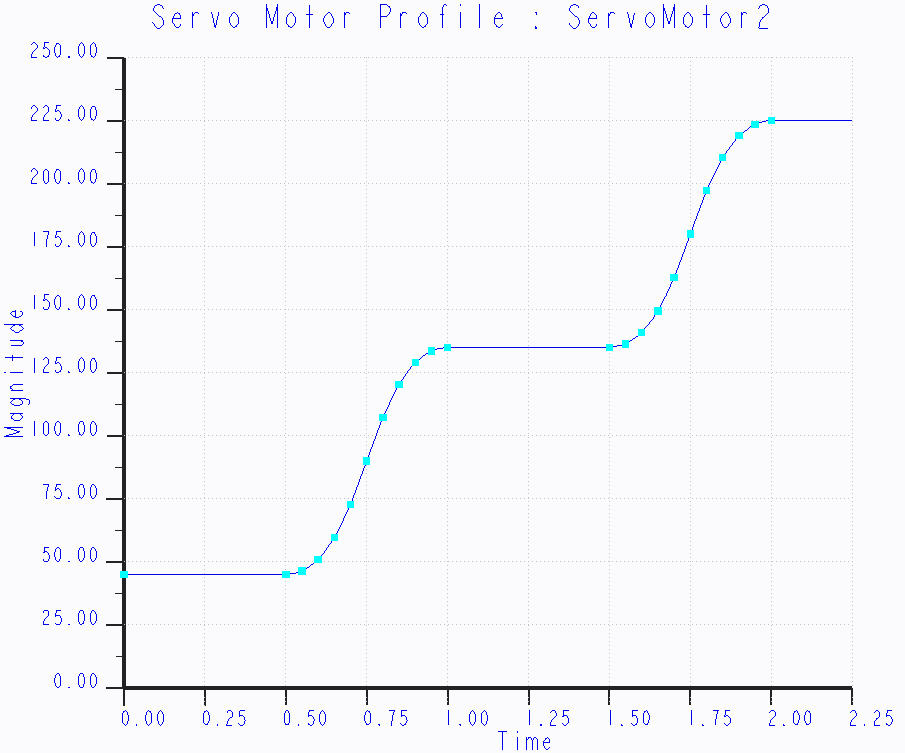

Here's a segment of the first driven wheel's servo motor profile. The drive wheel just has a constant velocity of 360 deg./sec.

I half derived the equation of motion for the driven wheel, but the third dimension really complicated it. I ended up just indexing the drive wheel and measured the angles directly.
