Pattern Table READ FUNCTION

Forum|Forum|16 years ago
February 10, 2010
2 replies
5816 views

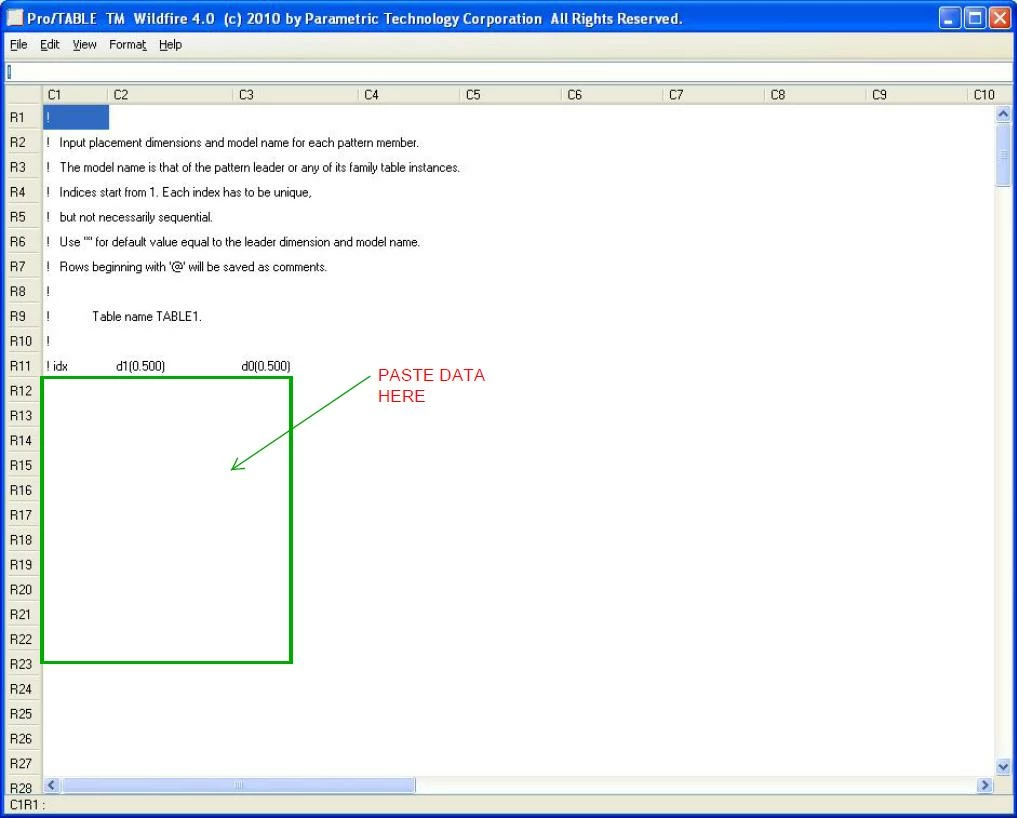

I am trying to create a pattern using coordinates. I have the corridates in EXCEL. I cannot PASTE the data into a Pattern table. I am using WF4. I see that the TABLE has a function to READ from a file, but that is a PBT.FILE from PRO-E. Would anyone know how I can enter data from EXCEL. It is too much data to type. Thanks your feedback!

General

S

sschroeder

1-Visitor

I don't think you can copy paste from Excel into Pro/TABLE. I'd save out the Excel file as a space delimited text file. Make sure you include an index column as the first column before saving. Then, you can save out your Pro/TABLE file as a .ptb file. Open the .ptb file in a text editor like notepad and copy paste from you Excel outputed text file into the .ptb file. Save it, and then read the file in while in the Pro/TABLE editor for your pattern. I know it's a pain. Hopefully PTC will be improving this in future releases.

D

DELETEME

1-Visitor

You can cut and paste from individual cells, just not a block like you'd like. I do this all the time.

S

sschroeder

1-Visitor

I've just been told that in Wildfire 5 there's a new config.pro option to change the editor to Excel. The option is part_table_editor and you can set the value to excel. If this is set, pattern tables will be edited in Excel and hence you can copy/paste from your other excel file.

G

gwalker

1-Visitor

Here is a product idea that may help...

https://community.ptc.com/t5/Creo-Parametric-Ideas/Make-pattern-table-editing-fully-compatible-with-Excel/idi-p/460932
