Question

Hole note display in Creo2-m080

  • November 25, 2013
  • 8 replies
  • 7134 views

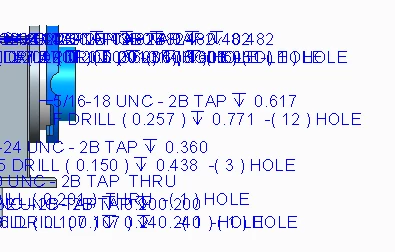

I updated my system to m080 late last week, this morning I notice this.
[cid:image001.png@01CEE9C6.A972EA00]

It wasn't like this in m070.
How do I turn this off?

David Haigh
Phone: 925-424-3931
Fax: 925-423-7496
Lawrence Livermore National Lab
7000 East Ave, L-362
Livermore, CA 94550

    8 replies

    D
    davehaigh13-AquamarineAuthor
    13-Aquamarine
    November 25, 2013
    The screen shot is from assembly mode.

    David Haigh
    B
    BillChapman13-Aquamarine
    13-Aquamarine
    November 25, 2013
    [cid:image002.png@01CEE9D9.066D1430]

    Once in Creo, click the annotation display circled in red. I'm sure there is a config that will default this to off.

    Bill Chapman
    Email: -<">mailto:->
    Tel: 708-496-3100 | Cell: 708-205-5705

    [cid:image003.jpg@01CEE9D9.066D1430]
    D
    davehaigh13-AquamarineAuthor
    13-Aquamarine
    November 25, 2013

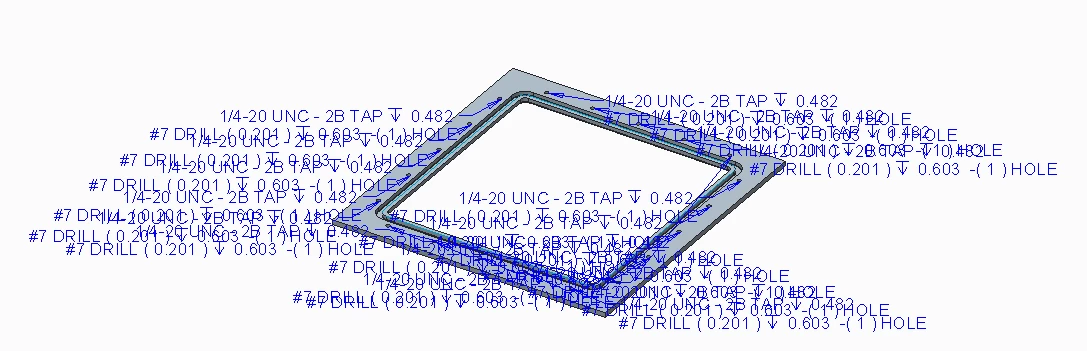

    Here's a part mode screen shot.
    [cid:image002.png@01CEE9C8.531E78C0]



    David Haigh
    J
    Jim.Tierney1-Visitor
    1-Visitor
    November 25, 2013
    There was a change where the Creo was looking for configs between two build codes of CP2. I'm guessing your company config in the install hid these by default.

    Jim
    D
    davehaigh13-AquamarineAuthor
    13-Aquamarine
    November 25, 2013
    Thank you Bill!

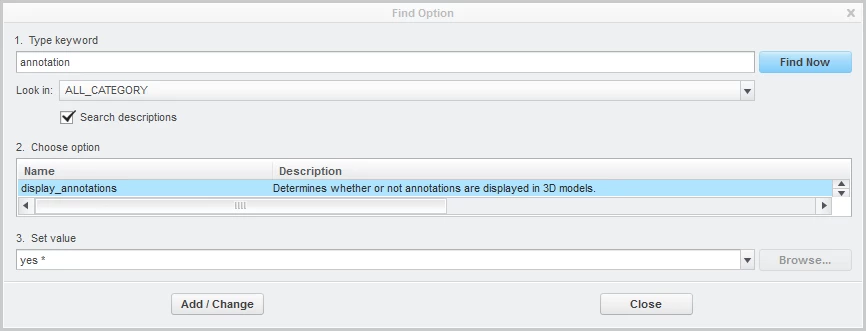

    The config option is
    [cid:image001.png@01CEE9C8.C44D14C0]

    David Haigh
    D
    davehaigh13-AquamarineAuthor
    13-Aquamarine
    November 25, 2013
    So I tested this in m070 and m080 without the config option in either version.

    * M070 the hole notes don't display in part and assy mode

    * M080 the hole notes do display.

    The only fix is to add the config option to m080 and set it to no.

    David Haigh
    D
    davehaigh13-AquamarineAuthor
    13-Aquamarine
    November 25, 2013
    Lance,
    It’s setting the initial display of this button to be off:
    [cid:image002.png@01CEE9D9.066D1430]
    It’s on by default.

    When I’m designing I don’t want to see any annotation, I only want to see dimensions when I’m modifying a feature, or assembly constraint.

    Call me a luddite, stick in the mud, what have you… I’d still rather have a separate drawing. It just seems like a lot of extra work to me to try and incorporate all the information on a drawing into a model. I think it’s faster to do a drawing, and end results is a whole lot more portable and archiveible(sp?). I’ve been doing this for a living since ’81, so yes, I guess I’m an old timer. I don’t see the advantage of sending an annotated cad file, verses sending a cad file and a drawing, typically in PDF form. The guy giving you the quote typically is going to be looking at the drawing anyway. Plus it’s easy to mark up a drawing, not so easy to mark up an annotated cad file.

    David Haigh
    D
    davehaigh13-AquamarineAuthor
    13-Aquamarine
    November 25, 2013
    So I heard back from PTC on this. This is actually a fix of behavior that wasn't to spec before.

    David Haigh
