How can I use my own textures ???

  • December 31, 2012
  • 3 replies
  • 6633 views

HI all, I'm trying to model an old revolver and I want to put a wood texture on the handle of the gun, like the real old guns. But, the problem is that I don't know how to color a piece with my own texture.

If you could help me, I will be so happy

    Best answer by TomD.inPDX

    Peter, thanks for the great example and the warning about folder naming.

    You can change the scale and rotation of your texture by editing the appearance once applied to the model (use the little eye dropper icon). Once selected, you can do a lot with the texture. Also, don't forget the roughness part of the texture. This can really make things stand out when using the renderer. Have a look at my linked document in how to make textures stand out.

    But alas, I don't think Elements Direct Express allows any kind of texture. I have Elements Express 4 loaded and don't see any way to do this.

    3 replies

    T
    TomD.inPDX17-Peridot
    17-Peridot
    December 31, 2012

    It is not too difficult but I don't know what version of Pro/E you are using.

    In the appearance manager, you can greate a new "appearance". To this, you can apply almost any kind of image that you like. With a little work, you can also give the appearance a texture (not just the image, but a "roughness").

    I documented some of the process here:

    http://communities.ptc.com/docs/DOC-2847#comment-7560

    A
    AlexandreChartr1-VisitorAuthor
    1-Visitor
    January 1, 2013

    I'm using creo elements/ directModeling express 4 (the free version)

    T
    TomD.inPDX17-Peridot
    17-Peridot
    January 1, 2013

    Oh, that could be problematic. I see nothing about textures in the Elements Express help files.

    W
    Wheelsofsteel10-Marble
    10-Marble
    January 1, 2013

    I don't know if it posible in the express version.

    But I will give you a little tip, what ever file you try to use, make sure it is stored in a folder location that doesn't have a space in the name , I have found that if I store files for texture is "MY PICTURES" within windows, it can't load it.

    Create a folder directly on C:\ Drive that has no spaces in the name to store the images that you want to use.

    PTC has fixed some issues with the name convention, but texture isn't one of them, found that out the hard way.

    W
    Wheelsofsteel10-Marble
    10-Marble
    January 1, 2013

    Here is a quick how to for adding texture

    Step one.

    open the appearance manager

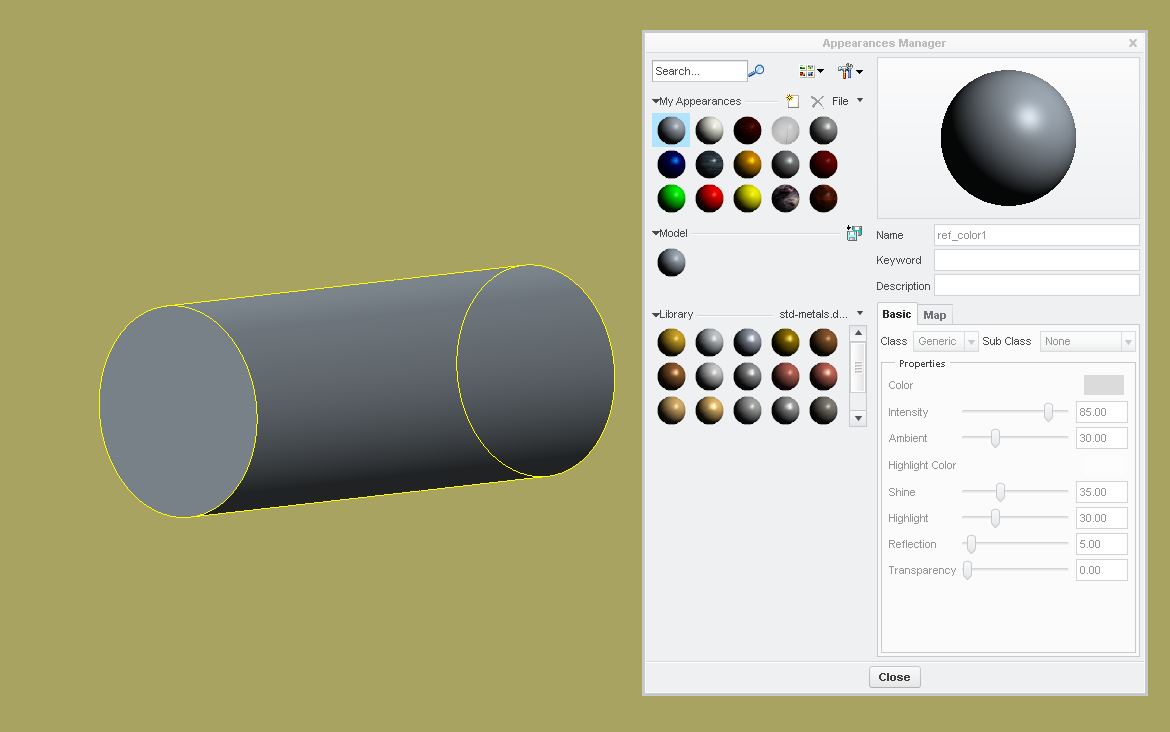

    texture 2.JPG

    Step two

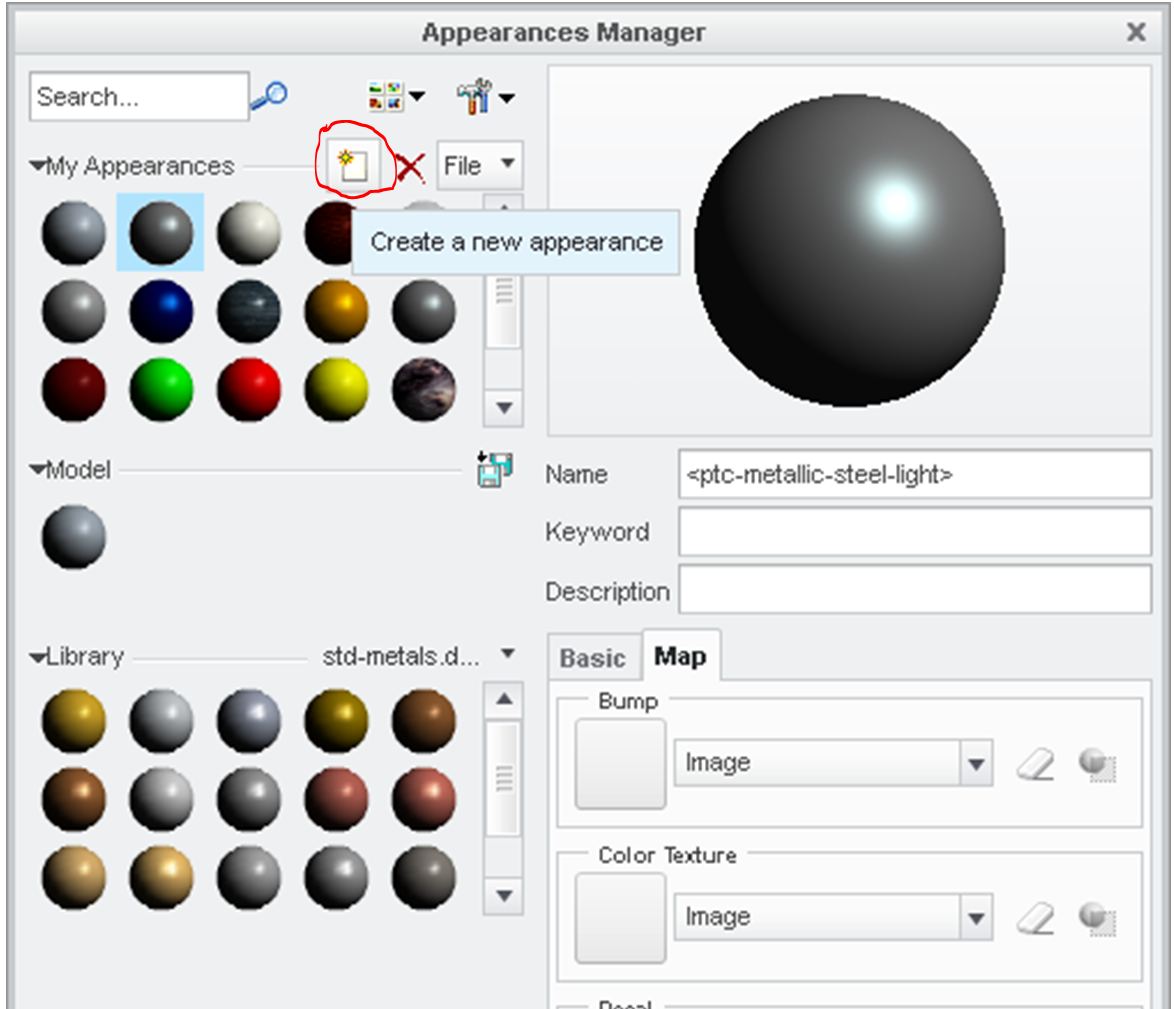

    you need to create a new apearance

    texture 4.JPG

    Step three

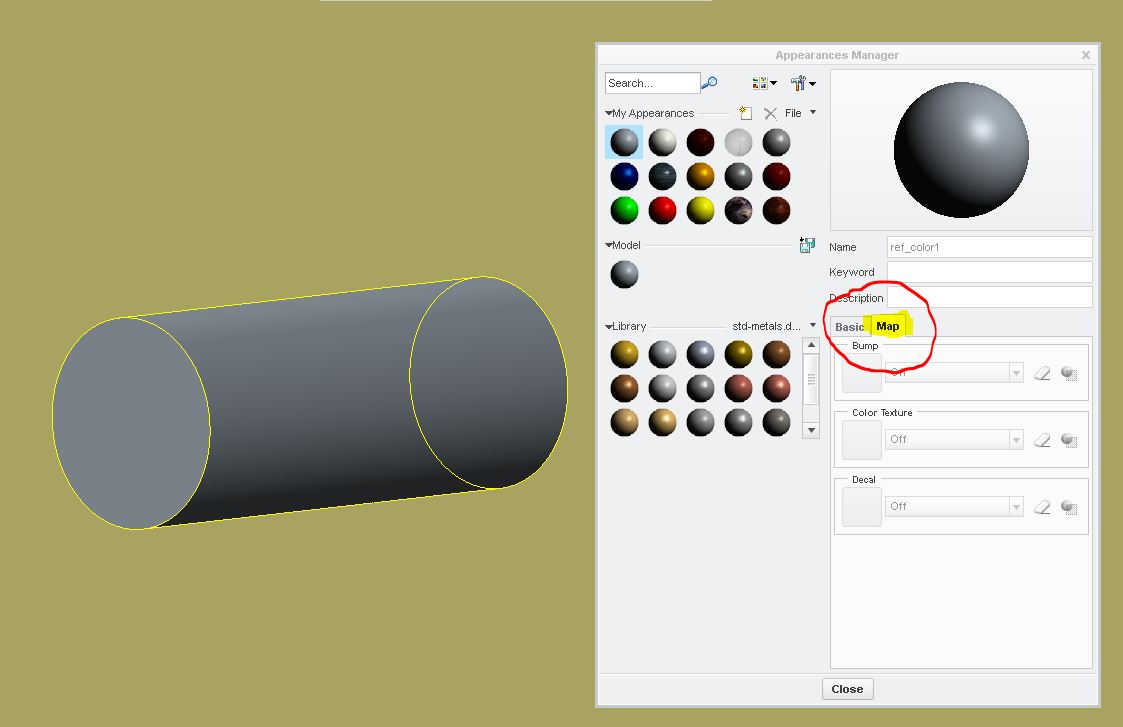

    select the MAP tab

    texture 3.JPG

    Step four

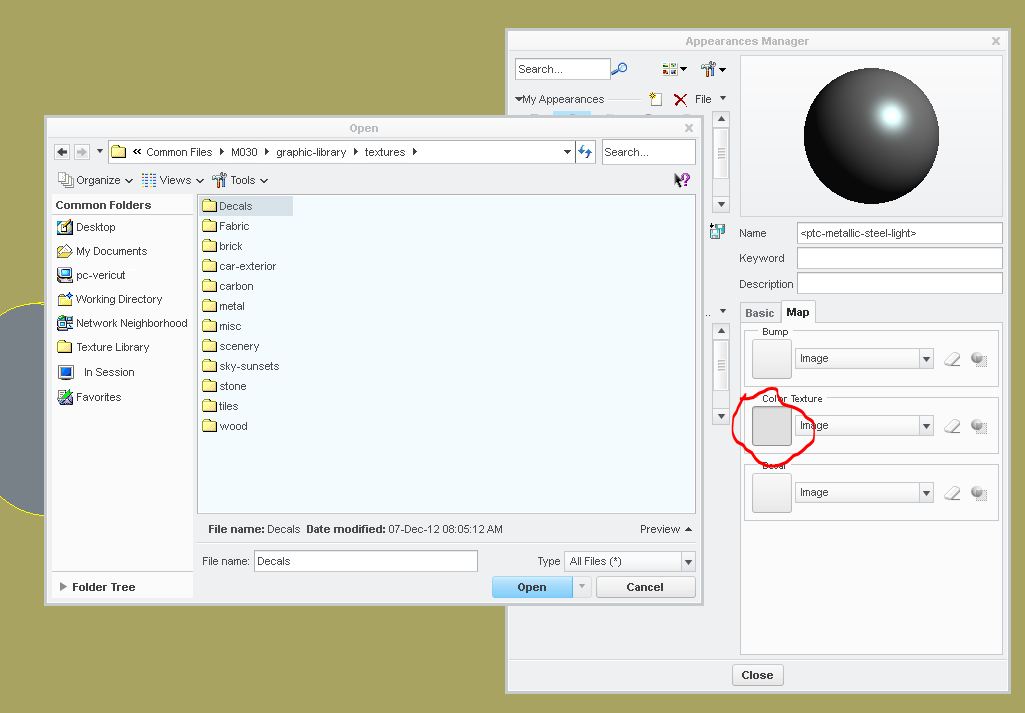

    click the color texture box

    texture 5.JPG

    this will open the PTC default texture folder, you could store your image within a folder in this location.

    select a texture for the new appearance.

    Step five

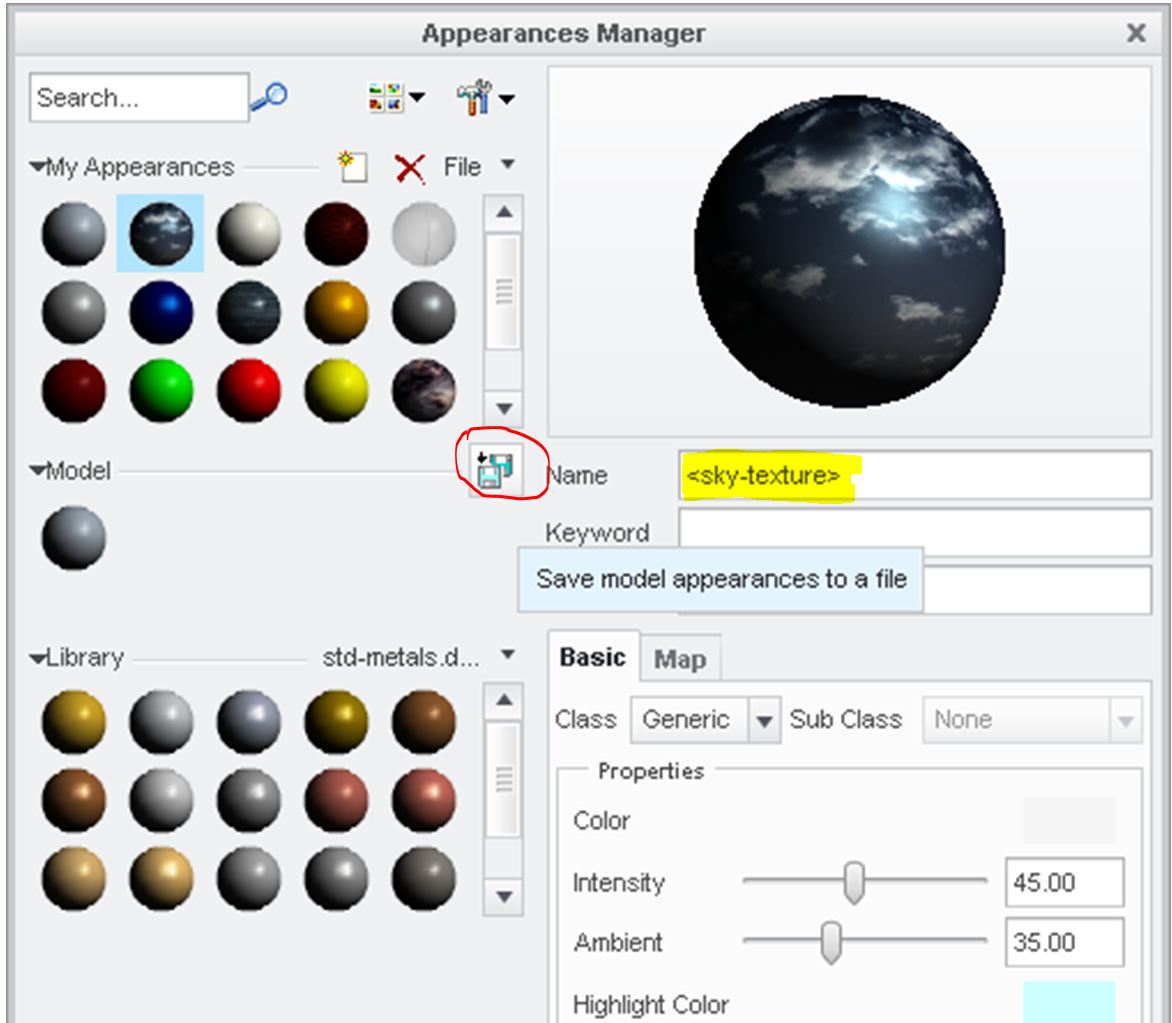

    give the appaerance a new name and save it.

    texture 6.JPG

    Step six

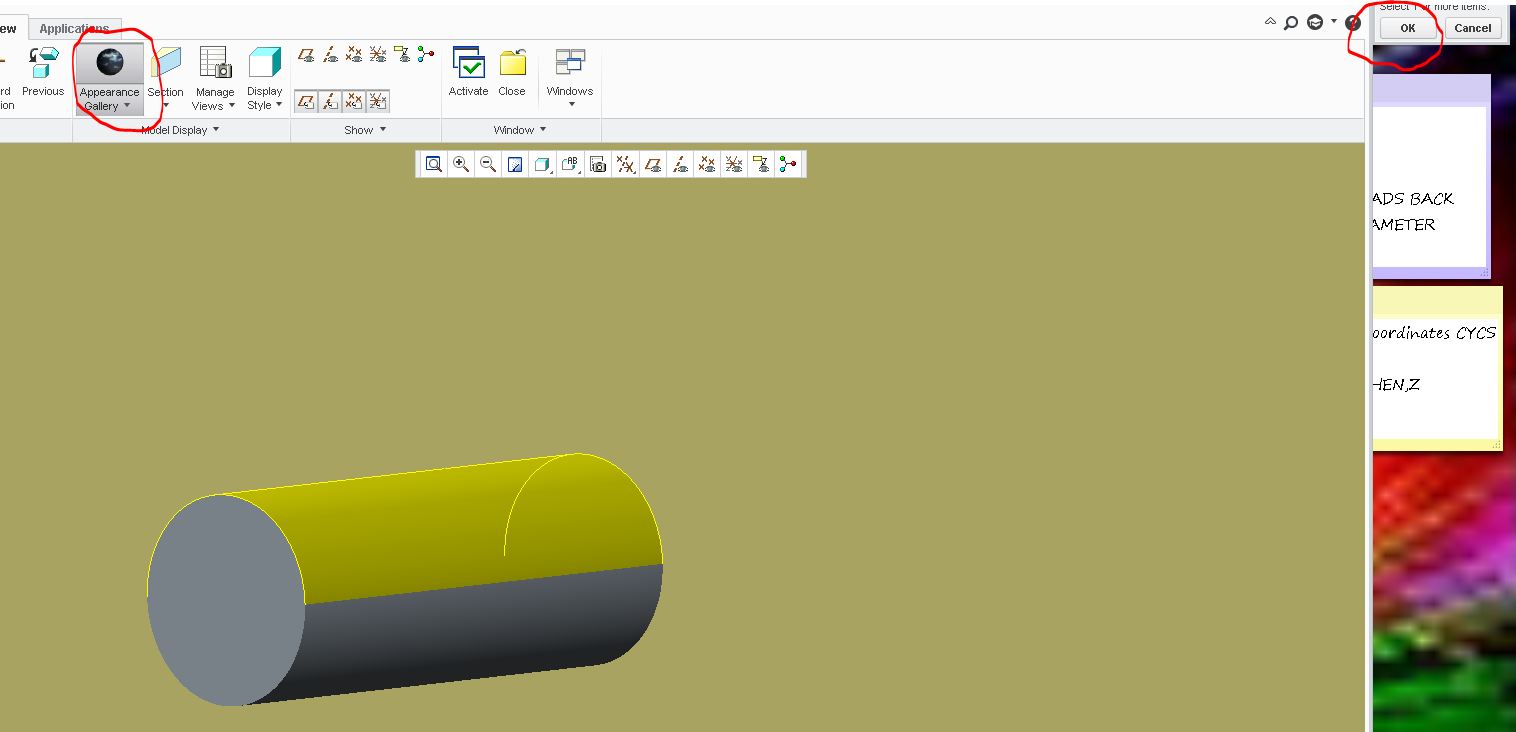

    you can now apply the new appaerance like a color, i have picked the sky texture

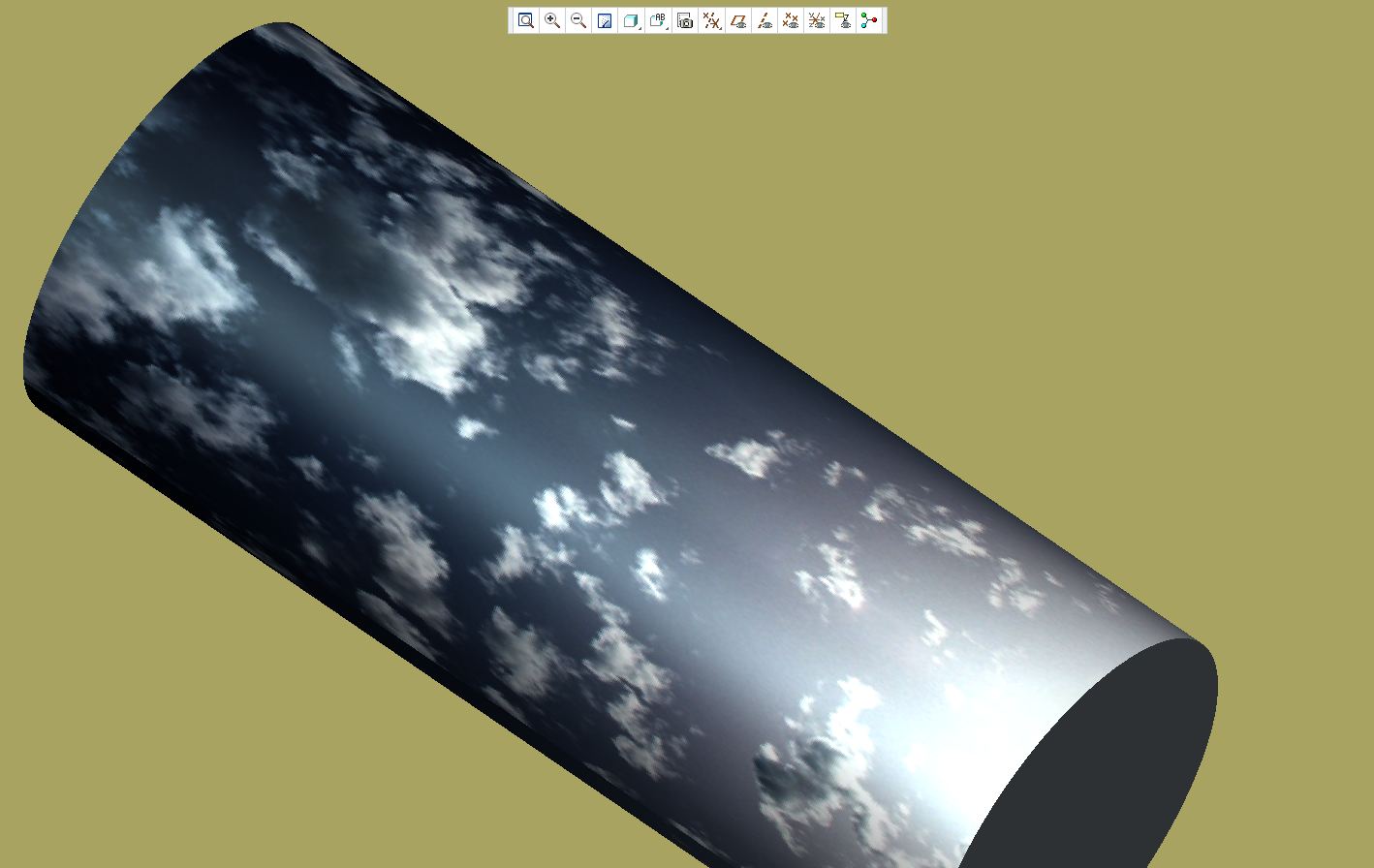

    texture 7.JPG

    texture 8.JPG

    now while the default texture are .tx3 format, you can use .jpg as shown below

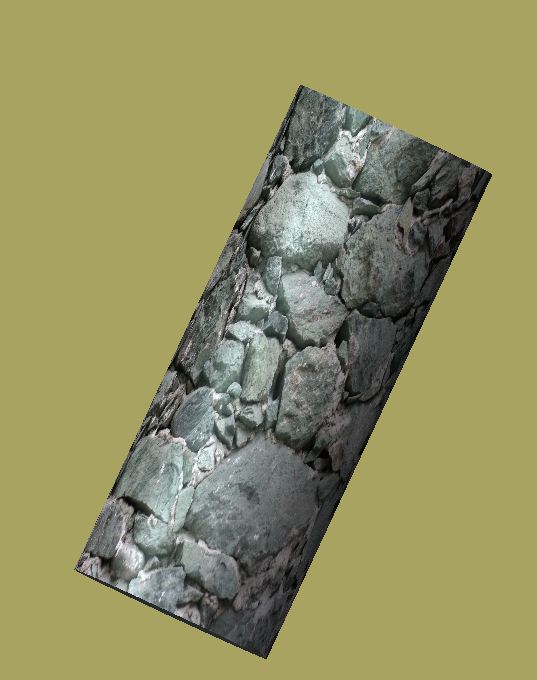

    texture 9.JPG

    But the problem with .jpg, is to try to get it to scale properly, images apear to be stretched

    Now the question is , will the express version do texture

    Peter

    T
    TomD.inPDX17-PeridotAnswer
    17-Peridot
    January 2, 2013

    Peter, thanks for the great example and the warning about folder naming.

    You can change the scale and rotation of your texture by editing the appearance once applied to the model (use the little eye dropper icon). Once selected, you can do a lot with the texture. Also, don't forget the roughness part of the texture. This can really make things stand out when using the renderer. Have a look at my linked document in how to make textures stand out.

    But alas, I don't think Elements Direct Express allows any kind of texture. I have Elements Express 4 loaded and don't see any way to do this.

    A
    AlexandreChartr1-VisitorAuthor
    1-Visitor
    January 4, 2013

    Thank you all,
    I didn't find any kind of texture on Element Direct
    So, I will use simple colors
