Solidworks to Pro WF 3.0 Conversion

  • July 17, 2008
  • 10 replies
  • 2298 views
Does anyone have any experience with what type of file works best from Solidworks to Pro? I got an IGS from a supplier but when imported to Pro, it has too many gaps to heal. Any help would be appreciated.

thanks



    10 replies

    P
    ptc-19327451-Visitor
    1-Visitor
    July 17, 2008
    I have had the best results overall for solids using STEP into Pro-E.

    Be aware that you need to set the overall part accuracy BEFORE doing the
    import. Use absolute accuracy if possible.
    Changing the accuracy of the model after import will not improve the
    import 'healing'.

    Drag-n-drop works to import the model into Pro-E, but check to see that
    the system is using your start part template also.

    PTC has a very good web demo for 'Import Data Doctor', using IGES files.

    Christopher Gosnell

    TRIGON INC.
    FPD Company
    124 Hidden Valley Road
    McMurray, PA 15317
    PH: 724.941.5540
    FX: 724.941.8322
    www.fpdinc.com
    P
    ptc-7261111-Visitor
    1-Visitor
    July 17, 2008

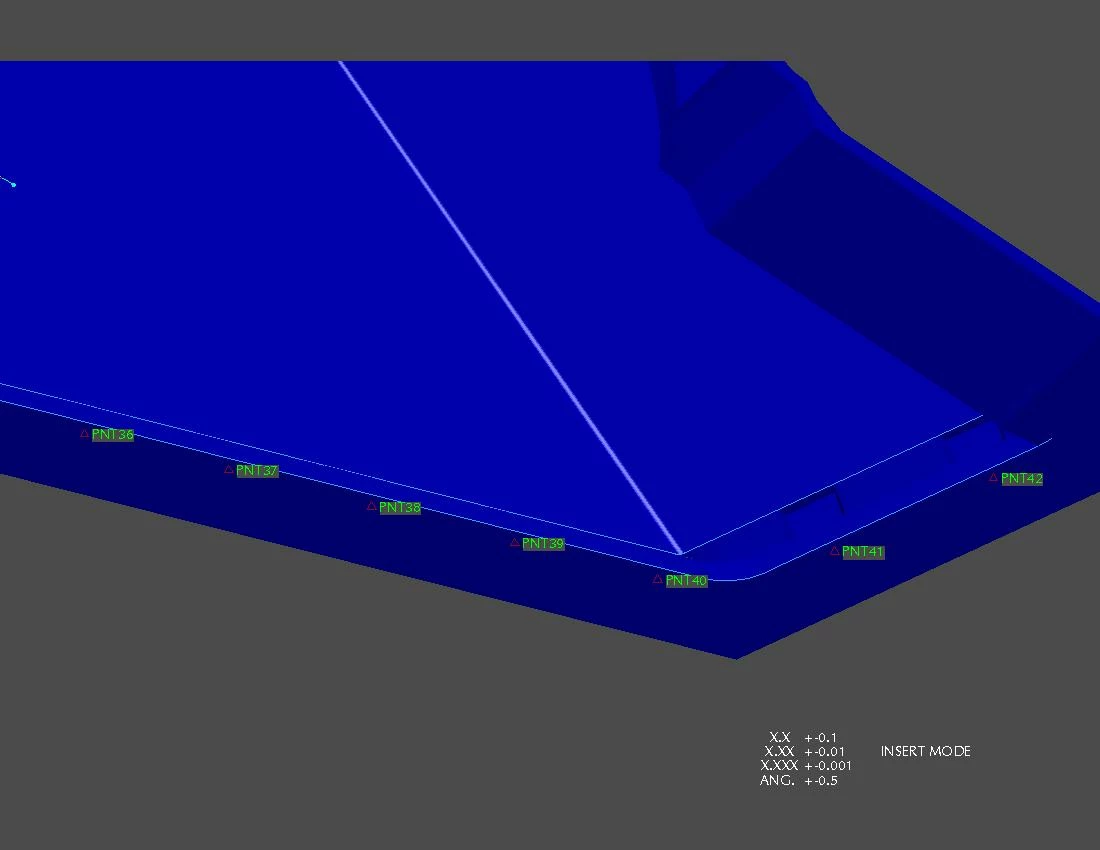

    I have another question related to the previous email. I would like to add a
    vector thru each DTM point normal to the surface. Besides using a hole with
    a small opening, is there an easy way to do this?



    My client has asked for no holes if possible, as these will be added later.
    I have thought about creating an axis, but I cannot control the length of
    the axis.



    I would appreciate any helpful suggestions. If this feature can be patterned
    (referencing the DTM PTS), that would also be helpful.





    Regards,



    Chris

    M
    mvillas1-Visitor
    1-Visitor
    July 17, 2008
    you can control the size of an axis! if you right click and edit def. the second

    tab will allow you to control the size you can give it ref. or tell it a length



    Mike

    In Reply to:

    I have another question related to the previous email. I would like to add a
    vector thru each DTM point normal to the surface. Besides using a hole with
    a small opening, is there an easy way to do this?



    My client has asked for no holes if possible, as these will be added later.
    I have thought about creating an axis, but I cannot control the length of
    the axis.



    I would appreciate any helpful suggestions. If this feature can be patterned
    (referencing the DTM PTS), that would also be helpful.





    Regards,



    Chris

    P
    ptc-7261111-Visitor
    1-Visitor
    July 18, 2008
    I found no easy (short) method of adding a vector thru a datum point to
    represent a hole location, without modeling the actual hole. The purpose was
    to export the file (STEP / IGES) with a curve showing the proposed hole
    location.





    . You can control the size of an axis! if you right click and edit
    def. the second tab will allow you to control the size you can give it ref.
    or tell it a length

    . Why not a curve from equation with a hidden csys attached to the
    point ?




    The client had requested only a vector be added to the model, and they would
    add the holes later. If anyone has a better solution, I would be interested
    in hearing from you.



    Regards,



    Chris Thompson

    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    July 18, 2008
    STEP between SW and Pro/E works pretty well, by far the best, I believe. Also, a lot of times I get STEP models that either Pro/e will not read at ALL, or you get mangled surface geometry. What I've found is SW has far better import/export translation and repair capabilities. A lot of times I bring files (STEP, IGES, etc.) into SW first, then export out a STEP file which I "insert-data-from file" into an empty templatepart. Often they come in perfect that way, and if not, the resulting surfaces are always MUCH better than if I tried to bring it straight into Pro/E.



    And, I just figured out a good/easy way to bring in dumb imported geometry and build a fully parametric model on top of it, with the ability to re-load the file and check the geometry afterwards. Interested?

    -------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.

    Dr. Seuss




    R
    RobT1-Visitor
    1-Visitor
    July 21, 2008
    What is your technique to build a parametric model on top of imported features? I and others are interested.

    Robert


    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    July 21, 2008
    Tried to attach the file, can't. !$#%!%$~!R!!!!



    I'm going to send it to a few of you and see if it isn't the draconian IT filters here.



    Frank

    In Reply to:

    What is your technique to build a parametric model on top of imported features? I and others are interested.

    Robert




    -------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.

    Dr. Seuss


    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    July 23, 2008
    I gave the file to several of you. Has anybody tried to load it since I can't? This sucks....

    -------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.

    Dr. Seuss


    S
    snguyen1-Visitor
    1-Visitor
    July 23, 2008


    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    July 23, 2008
    Thanks Son!

    -------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Be who you are and say what you feel, because those who mind don't matter and those who matter don't mind.

    Dr. Seuss
