Use model in tree

Forum|Forum|13 years ago
October 23, 2012
3 replies
2764 views

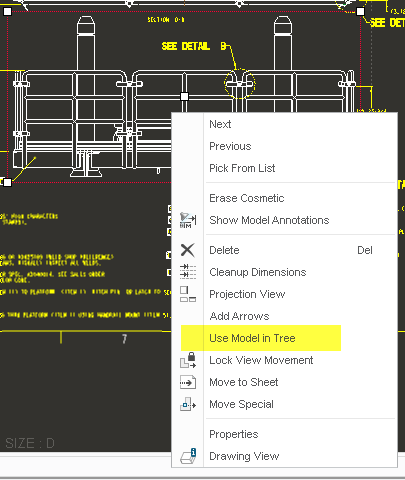

In proe wildfire 4.0 I have used the option "use model in tree" for highlighting a view by clicking on model tree. For blanking, unblanking, changing style into phantom etc. this option was useful. Now I am working on creo elements/pro. But here I can't find that option. I am facing difficulty in detailing due to this. Someone please help me to find this option or any other method where i can use the model tree for selected view only.

K

kkowalczyk-2

1-Visitor

If I understand your question correctly it is not necessary to use "use model in tree" option.

If you want to change line style of a component in particular view you just need to:

1. Click "component display" option.

2. Click "Style".

3. Click "Picked View".

4. Clik and choose with LMB a component in a particular view (you can change highlighted component by RMB or clik RMB and use "Pick from List" option), but not in model tree.

5. Clik MMB or "OK" to confirm.

6. Click a style you want to assign to component.

LMB Left mouse button

RMB Right mouse button

MMB Middle mouse button
